Help CenterMetal Laser Marking Machine With CE
Related Products
Specifications
Laser marking machine1.Mark on all kinds of metals
2.Continuous work on 24 working hours
3.CE Approved
4. High Quality

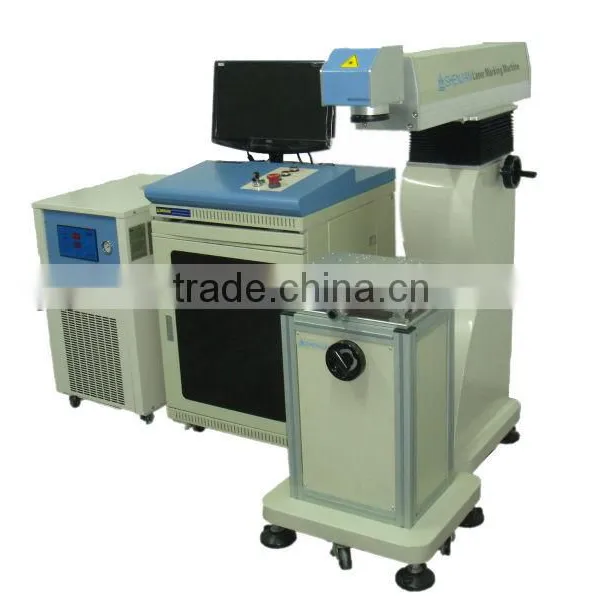

Laser marking machine

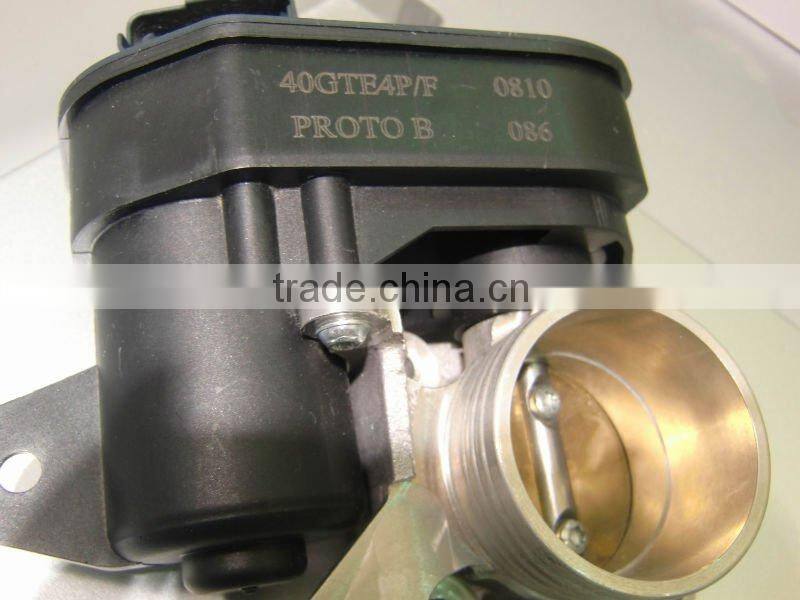

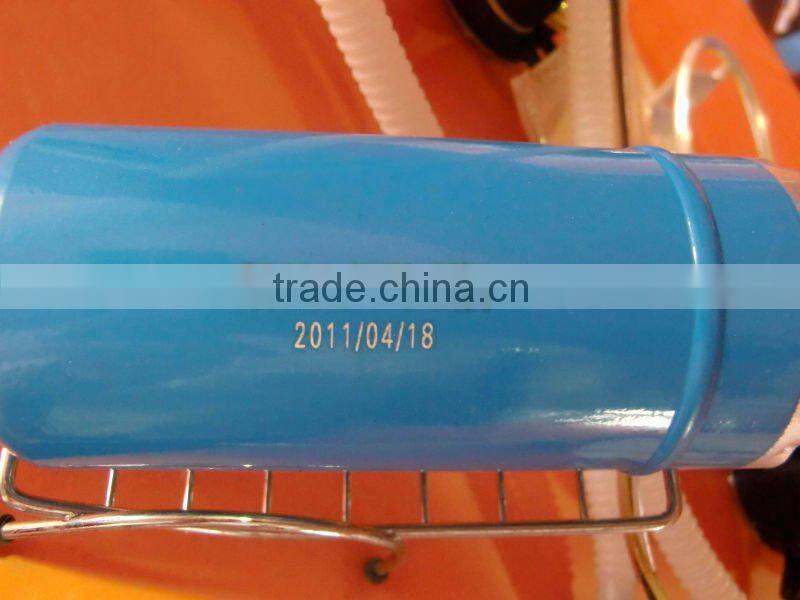

Sample
Technical parameters
Input voltage: |
AC220V±20V |
Frequency: |
50Hz |
Input power: |
1.5kVA |
Wavelength: |
1.064µm |
Power: |
50W |
Instability: |
±5% |
Radio-frequency power: |
≤50W |
Modulating frequency power: |
200Hz~50kHz |
Pulse duration modulation: |
4µs~25µs |
Working area: |
110mmx110mm |
Scanning speed |
0~7000mm/s |
Marking depth: |
0.01~0.2mm (according to material) |
Marking width: |
0.1-0.2mm (according to material) |
XY table working area: |
85mm x 85mm |
Laser head lifting height: |
200mm |
Cooling way: |
Refrigeration unit cools the circulating media then the circulating media cools the laser cavity. |
Refrigerating power: |
1P |
Refrigeration unit: |
De-ionized water, distilled water or purified water. |
·Feature:
- Diode pumped laser marking machine adopts high-quality semi-conductor module, life time over 10k hours.
- Fast speed & no touch processing, the heat exchange is little, the material is not easy to distort.
- Can quickly mark letter, figure, graphics or auto-coding, serial No., batch No., barcode, 2 -D code, etc. on metal or nonmetal surface (plastic, silicon or porcelain, etc.) which are precise, permanent, non-polluting and environment-friendly.
- 4. Its mainly equipped with the international advanced semiconductor light-emitting diode. diode laser module, scanner head, beam expander, reflect lens, Q-switch, Q-driver and other key parts imported from USA,UK, Singapore etc.
·Main application field: Hardware, IC, instrumentation, electronics,machinery industry, jewelry, glasses, auto parts, telecommunications products, plastic buttons etc.
