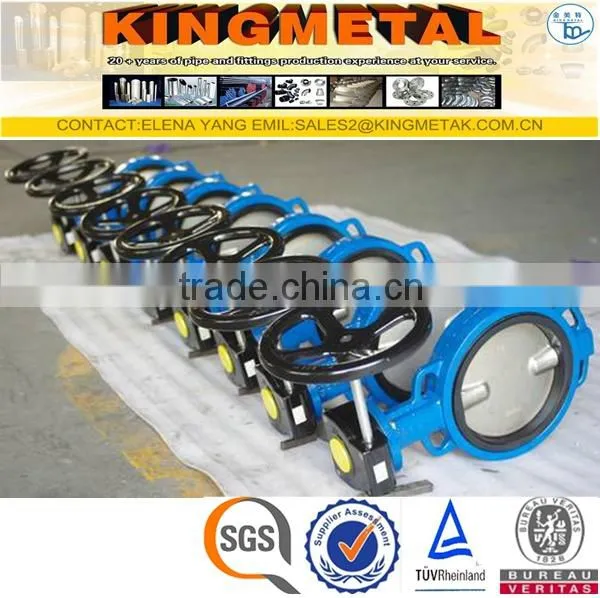

304 Stainless Steel 10 Inch Butterfly Valve DN250

Name: 304 Stainless Steel 10 Inch Butterfly Valve DN250
Brand: Kingmetal
SKU: 124205397
Availability: InStock

US$ 10 - 1,000 MOQ: 20 Pieces

Key Specifications

Standard or Nonstandard:

Standard

Structure:

Butterfly

Pressure:

Medium Pressure

Guangzhou Kingmetal Steel Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China main port

Delivery Detail:

Delivery time depends on order quantity.

Standard or Nonstandard Standard

Structure Butterfly

Pressure Medium Pressure

Power Manual

Material Stainless Steel

Temperature of Media Normal Temperature

Media Water

Port Size 1/2"-24"

Place of Origin China

Model Number EL-BV

Brand Name Kingmetal

Application General

Applicable Standards:

Design & Manufacture according to : API 6D

Face to Face according to : ASME B16.10

Flange Dimensions according to : ASME B16.5

Pressure & Temperature according to : ASME B16.34

Test & Inspection according to : API 6D / API 598

Visual Inspection according to : MSS SP-55

Marking according to : MSS SP-25

Material Option:

Carbon steel	A216 Gr. WCB , WCC , WCA , etc
Low temperature steel	A352 Gr. LCB , LCC , LC1 , etc
Cr-Mo steel	A217 Gr. WC6 , WC9 , C5 , C12 , C12A , etc
Stainless Steel	A351 Gr. CF8 , CF8M , CF3 , CF3M , CF8C , etc
Alloy steel	CN7M alloy 20 , CN3M alloy 20 modified , CT15C , etc
Super duplex	A995 Gr. 4A , 5A , CE8MN , CD6MN , CD3MN , etc
Aluminum bronze	B148 C95500 , C95600 , C95800 , etc
Monel	M30C , M35-1 , CZ100 , etc
Inconel	CY40 inconel 600 , etc
Hastelloy	CW2m Hastelly C4 , N12MV Hastelloy B , CW12MW Hastelloy C276 , etc
Incoloy	CU5MCuC Incoloy 825 , CW6MC Incoloy 625 , etc

Detail Information:

Name	pneumatic actuator metal seat flange triple eccentric butterfly valve
Model Number:	D343H-150LB-20"
Standard or Nonstandard:	API 6609
Structure:	metal seat flange triple eccentric butterfly valve
Pressure:	150LB
Power:	bare shaft / pneumatic actuator
Material:	cast steel A216 Gr. WCB
Temperature of Media:	—29 Deg. C~200 Deg. C
Media:	water, oil, steam, oil, etc
Port Size:	20" RF
Application:	water, oil, steam
OEM:	We offer OEM service
Special Requirement:	Tailor made can be provided
Description:	metal seat flange triple eccentric butterfly valve
Disc Sealing:	Multi Layer SS + Graphite or PTFE
Operation:	Suitable for Electric & Pneumatic Actuator
Color:	Blue RAL 5017 / or other
NDE available:	Magnetic Partical Examination
Applications:	For water treatment plant
Pnematic Actuator:	Single Acting or Double Acting
Air supply:	3bar `~ 7bar
