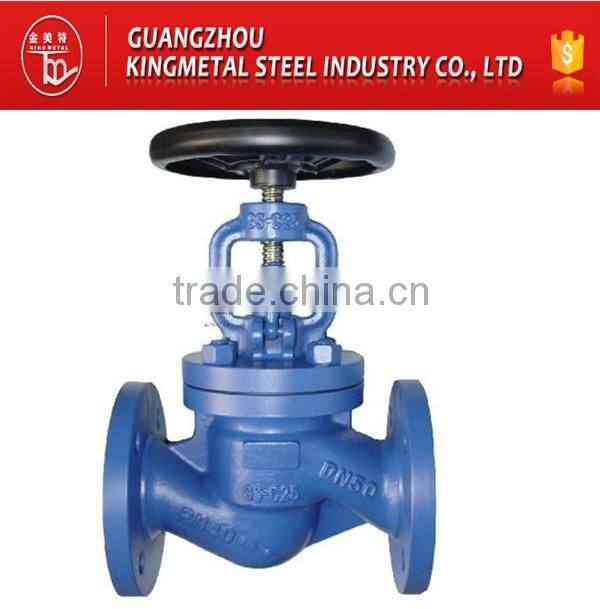

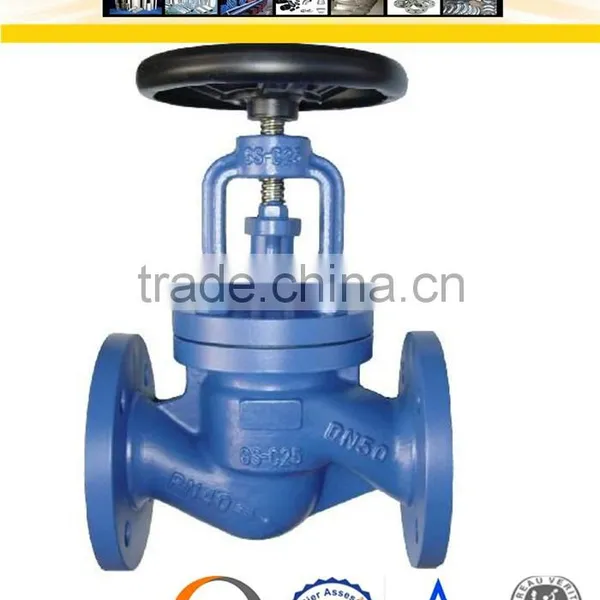

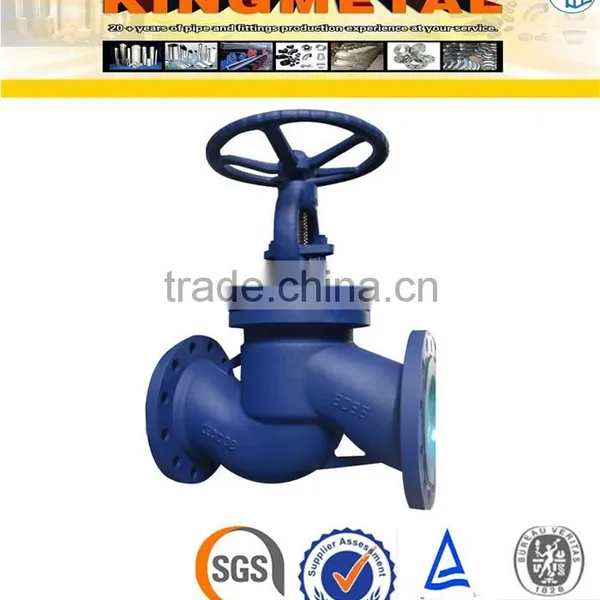

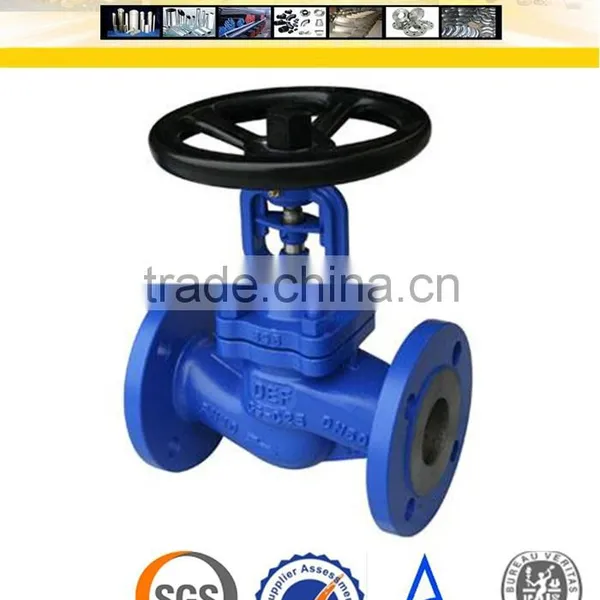

Help CenterDIN Cast Iron Globe Valve PN16
US$ 10 - 5,000
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Other, globe valve
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stainless Steel 316 6Inch Steam Globe ValveUS$ 10 - 5,000MOQ: 10 Pieces -
304/316 Stainless Steel Flanged Swing Check Valve 6 InchUS$ 0.5 - 50MOQ: 1 Piece
-
304/316 Stainless Steel Check Valve 1/8US$ 0.5 - 50MOQ: 1 Piece
-
304/316 Stainless Steel Wafer Check ValveUS$ 0.5 - 50MOQ: 1 Piece
-
304/316 Stainless Steel Flanged Check Valve 10 InchUS$ 0.5 - 50MOQ: 1 Piece
Standard or Nonstandard
Standard
Structure
Other, globe valve
Pressure
Medium Pressure
Power
Manual
Material
Stainless Steel
Temperature of Media
Normal Temperature
Media
Water
Port Size
1/2"-24"
Place of Origin
China
Model Number
EL-GV
Brand Name
Kingmetal
Application
General
Material:A351-CF8,CF8M,CF3M,316,304;A216-WCB
Size:
Class125:2 INCH~16 INCH
Class150:1/2 INCH~14 INCH
Class300:1/2 INCH~14 INCH
Class600:1/2 INCH~8 INCH
Industry Standards
| Design and manufacture | ANSI B16.34 |
| Face-to-Face | ANSI B16.10 |
| Flange Dimensions | ANSI B16.1/ANSI B16.5 |
| Weld end | ANSI B16.25 |
| Testing | API 598 |
Test pressure
| Item/Class | 125 | 150 | 250 | 300 | 600 | 900 | 1500 | 2500 |
| Shell(hydrostatic) | 350 | 450 | 875 | 1125 | 2250 | 3250 | 5400 | 9000 |
| Seat(hydrostatic) | 230 | 320 | 620 | 825 | 1650 | 2400 | 4000 | 6600 |
| Seat(air) | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
Material of main parts(cast steel):
| Parts/Group | LCB | WCB | CF8 | CF8M |
| Body &Bonnet | LCB | A216-WCB | A351-CF8 | A351-CF8M |
| Disc | A182-F304 | A105-1025 | A182-F304 | A182-F316 |
| Seat | A182-F304 | A105-1025 | A182-F304 | A182-F316 |
| Sealing Face | 18-8/18-8,18-8/STL,STL/STL | 13Cr/13Cr,13 Cr/STL,STL/STL | 18-8/18-8,18-8/STL,STL/STL | |
| Stem | A182-F304 | A182-F6a | A182-F304 | A182-F316 |
| Stem Nut | A439-D2 | |||
| Bolt/Nut | A193-B8/A194-8 | A193-B7/A194-2H | A193-B8/A194-8 | |
| Gasket | Spiral Wounded/Soft Steel | |||
| Packing | Flexible Graphite | |||
| Handwheel | A216-wcb/A47-32510 | |||
Working Temperature:
LCB:-50 ° F~ 653°F
WCB :-20 ° F~ 800°F
CF8:-272 ° F-1000 ° F(Flanged end);~ 272° F-1472 ° F(Weld end)
CF8M:-272 ° F-1000 ° F(Flanged end);~ 272° F-1472 ° F(Weld end)
Application: PMilk ,Beer ,Drinks Machinery ,Food Processing,Medicine Machinery, Water Treatment, Chemical, ect.
