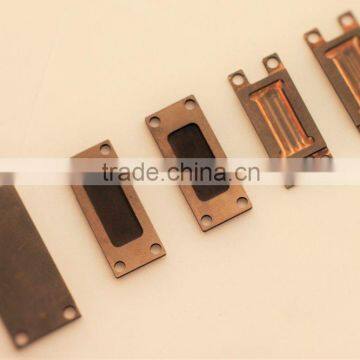

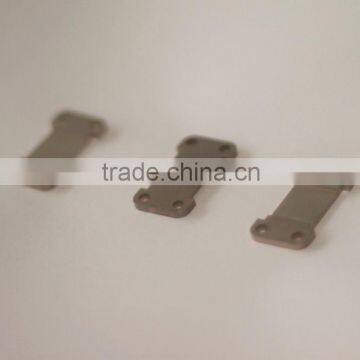

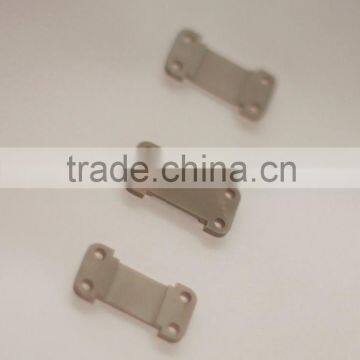

Help CenterTungsten Copper Submounts for Heat Sinks of High Power LD Modules Quality Choice
Related Products
The Advantages of Tungsten Copper Heat Sinks:
Tungsten copper alloys are widely used in electric, semiconductor, Machinery, metallurgy and other industries. Especially in semiconductor industries, the low coefficient of thermal expansion (CTE) and high thermal conductivity make these alloys the first choice for high power LD modules.
The Properties of Tungsten Copper Alloys:
Materials |
Density (g/cm3) |
CTE (ppm/K) |
Conductivity (MS/m) |
TC (W/mk) |
Applications |
W85Cu15 |
16.0~16.5 |
7.2 |
19 |
195~210 |
Contact/ Packaging/ Cathode |
W80Cu20 |
15.1~15.5 |
8.2 |
23 |
200~220 |
Contact/ Packaging/ Electrospark |
W70Cu30 |
13.7~14.2 |
9.4 |
25 |
220~240 |
Contact/ Packaging/ Electrospark/ Electrode |
W60Cu40 |
12.7~13.2 |
11 |
29 |
250 |
Contact/ Packaging/ Electrode |
Product Specification:
Materials: Tungsten copper alloy
Length: Customized
Width: 2.0~5.6 mm
Thickness: 0.20~0.40 mm
Precision: +/- 0.02 mm
Surface roughness: Ra<0.4
Warpage: <5.0 μm
Edge radius: <20.0 μm
Surface metallization: Ni 1.0~5.0 μm/ Au 0.1~0.3 μm
AuSn solder: Au75Sn25, 5 μm+/-1 μm
Options: Sputtering layer (Ti, Pt, Au, etc.)
Additional structure (Hole, step)
Packaging and Global Express
5x24h Service
Focusing on the application of new energy & new materials fields, SunEnrich Technology Co., Ltd (SER), combined with Chinese Academy of Sciences (CAS), University of Science & Technology Beijing (USTB), China Iron & Steel Research Institute Group (CISRI), General Research Institute for Nonferrous Metals (GRINM), dedicate to the R&D and the application of rare metals (please check the pic. of SER’s materials). We have three manufactories located in Beijing, Shanxi Province and Guangdong Province. Beijing company is the R&D center; Shanxi company engages in rare metal materials; and Guangdong company is for the machining.
Our products are widely used in aerospace, semiconductor, medical equipment, automotive industry and other fields, the products are exported to Europe, America, Southeast Asia and Taiwan region.
1, Office Located in Chaoyang distract, Beijing

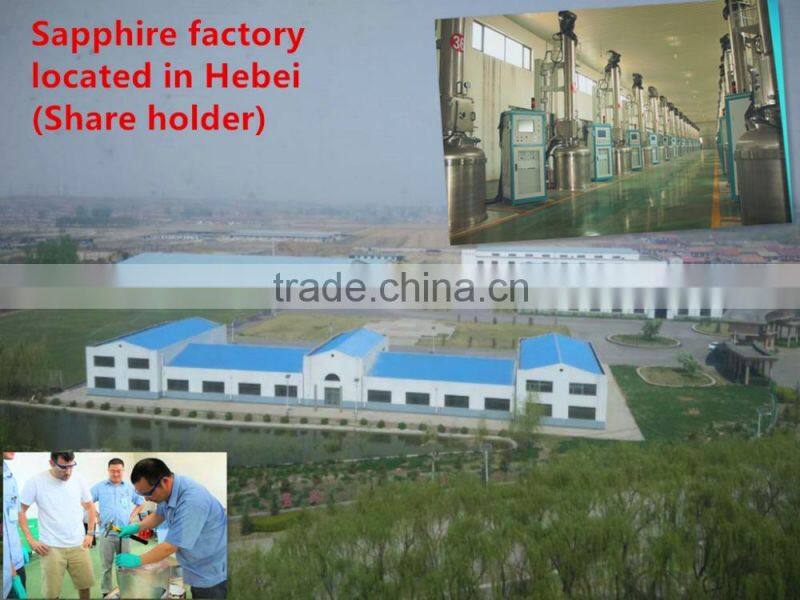

2, Sapphire Single Crystal & Machining Factory Located in Hebei (Shareholder)

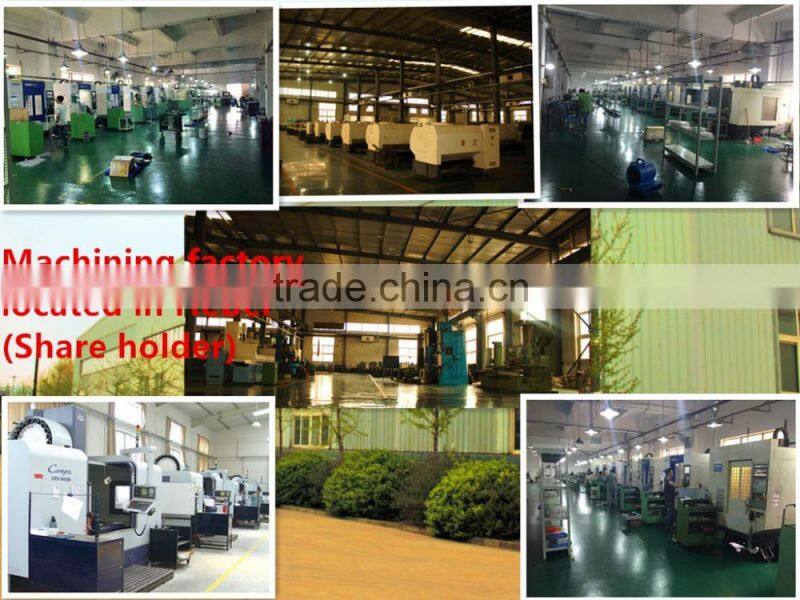

3, Machining Factory located in Hebei (Shareholder)
Pl contact us:
Mr.Boris (Dirrect of marketing) ,+86-10-5773 8217
Ms.Du (QA) , +86-10-5773 8127
Doc.Zhang (CTO), +86-10-5773 8128
Mr.Cao ( supply chain management ), +86-10-5773 8129
