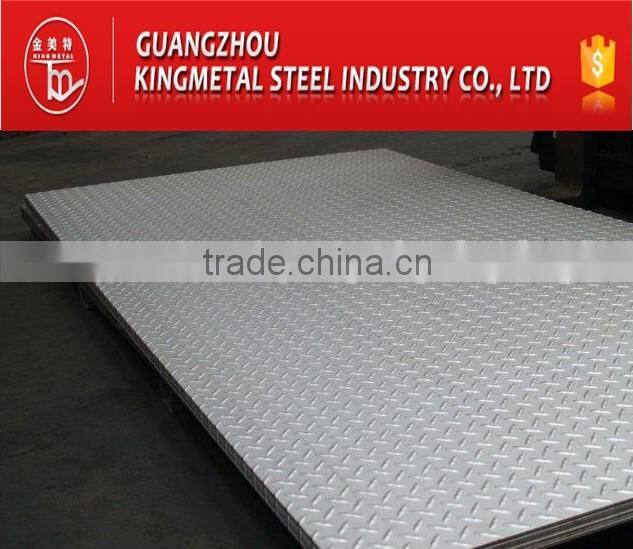

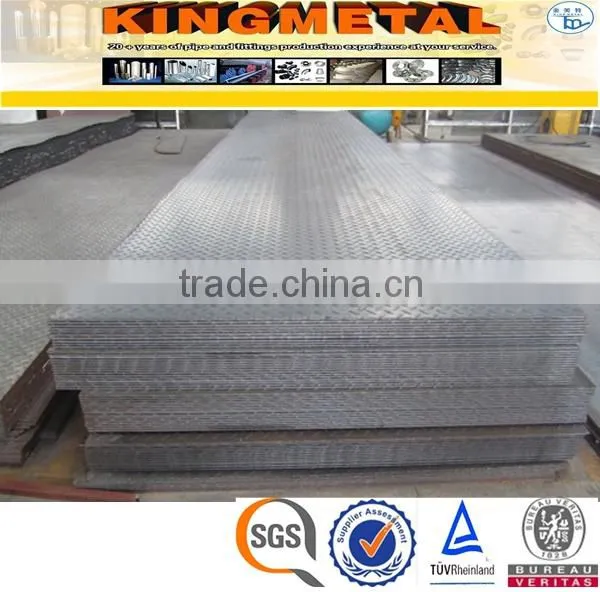

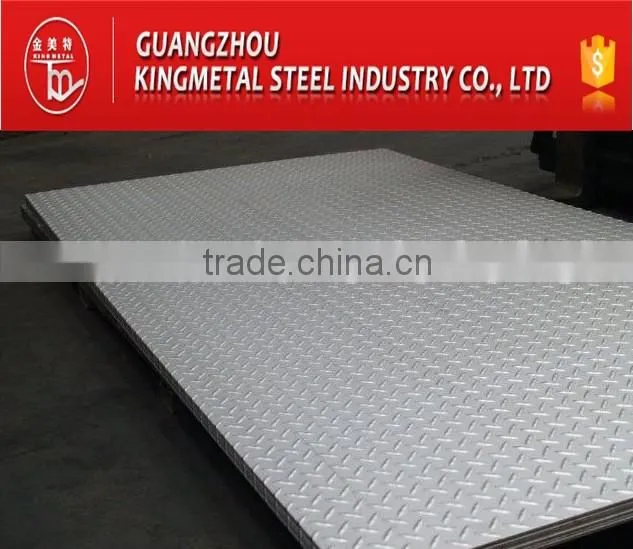

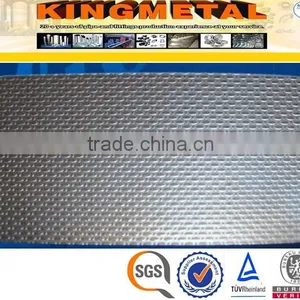

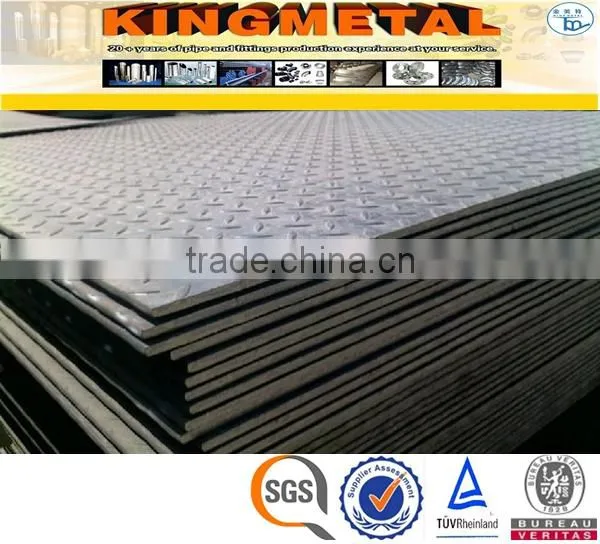

Help CenterStainless Steel Checkered Plate /Sheet
Related Products
-
RAL 9002 PPGI /Prepainted Galvanized Steel Coils PriceUS$ 450 - 1,500MOQ: 5 Tons -
Hot Dipped PPGI / Prepainted Galvanized Steel Coil PriceUS$ 500 - 1,000MOQ: 1 Ton
-
Hot Rolled 304/316 Stainless Steel Plate SheetUS$ 1,200 - 2,500MOQ: 1 Ton
-
MS Mild Steel Plate/Sheet PriceUS$ 450 - 2,500MOQ: 1 Ton
-
201 202 430 304 316L Cold Rolled Stainless Steel SheetUS$ 1,500 - 4,000MOQ: 50 Tons
Size |
Thickness: Cold rolled: 0.3-3mm, Hot Rolled: 3-120mm |
Standard |
AISI, ASTM, EN, BS, GB, DIN, JIS, etc |
Finish |
NO.1, 2B, BA, NO.3, NO.4, HL, 8K, etc |
Material |
201, 202, 304, 309S, 310S, 316, 316L, 410, 420, 430, 441, etc |
Application |
Stainless steel checkered plate are widely used as floor,ramp,pedal,ship deck,and car plate. |
Chemical composition
Grade |
C ≤ |
Si ≤ |
Mn ≤ |
P ≤ |
S ≤ |
Ni ≤ |
Cr ≤ |
201 |
0.12 |
0.75 |
7.00 |
0.045 |
0.045 |
1.00-1.28 |
13.70-15.70 |
202 |
0.15 |
1.00 |
2.25 |
0.045 |
0.045 |
4.07-4.17 |
14.00-16.00 |
304 |
0.08 |
0.75 |
2.00 |
0.045 |
0.03 |
8.00-11.00 |
18.00-20.00 |
304L |
0.035 |
0.75 |
2.00 |
0.045 |
0.03 |
8.00-13.00 |
18.00-20.00 |
309 |
0.15 |
0.75 |
2.00 |
0.045 |
0.03 |
12.00-15.00 |
22.00-24.00 |
310S |
0.08 |
1.50 |
2.00 |
0.045 |
0.03 |
19.00-22.00 |
24.00-26.00 |
316 |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
10.00-14.00 |
16.00-18.00 |
316L |
0.035 |
0.75 |
2.00 |
0.045 |
0.03 |
10.00-15.00 |
16.00-18.00 |
321 |
0.04-0.10 |
0.75 |
2.00 |
0.045 |
0.03 |
9.00-13.00 |
17.00-20.00 |
405 |
0.08 |
0.75 |
1.00 |
0.045 |
0.03 |
0.06 |
11.5-13.5 |
409 |
0.089 |
1.00 |
1.00 |
0.045 |
0.05 |
0.06 |
10.50-11.75 |
410 |
0.15 |
0.75 |
1.00 |
0.045 |
0.03 |
0.06 |
11.5-13.5 |
420 |
0.16-0.25 |
1.00 |
1.00 |
0.040 |
0.03 |
0.06 |
12.00-14.00 |
430 |
0.12 |
0.75 |
1.00 |
0.045 |
0.03 |
0.06 |
16.00-18.00 |
904L |
0.02 |
1.0 |
2.00 |
0.045 |
0.03 |
23.00-28.00 |
19.00-23.00 |
Finish
| Surface | Definition | Application |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. |
Chemical tank, pipe. |
| 2B |
Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster.
|
Medical equipment, Food industry, Construction material, Kitchen utensils. |
NO.3 |
Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. |
Kitchen utensils, Building construction |
NO.4 |
Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. |
Kitchen utensils, Building construction, Medical equipment. |
HL |
Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size |
Building Construction. |
BA |
Those processed with bright heat treatment after cold rolling |
Kitchen utensils, Electric equipment, Building construction. |
8K |
Shinning like a mirror |
Building construction |
