Help CenterSurface Mount Device 5930
Related Products

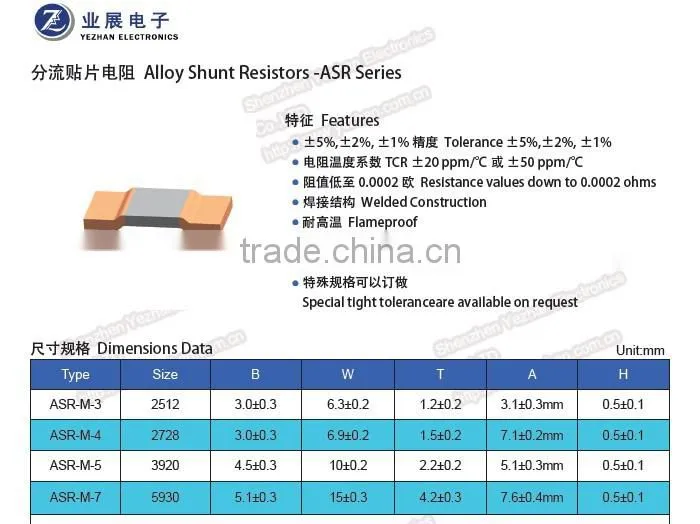

Specifications
Alloy, Shunt ;Manganin or Kama in the mddile with low TCR;
Oxygen-free copper on both sides no R and better heat dissipation
1. Model: ASR-M-3
Size : 2512 Power: 3W; B: 3.0 tolarance 3.0%; W: 6.3 telorance: 0.2%;
T: 1.2 tolerance:0.2%; A: 3.1 tolerance:0.3%; H: 0.5 tolerance:0.1%
2. Model: ASR-M-5
Size : 3920 Power: 4W; B: 4.5 tolarance 3.0%; W: 10 telorance: 0.2%;
T: 2.2 tolerance:0.2%; A: 5.1 tolerance:0.3%; H: 0.5 tolerance:0.1%
3. Model: ASR-M-7
Size : 5930 Power: 5W; B: 5.1 tolarance 3.0%; W: 15 telorance: 0.3%;
T: 4.2 tolerance:0.3%; A: 7.6 tolerance:0.4%; H: 0.5 tolerance:0.1%
Yezhan Electronics is a professional manufacturer of milliohm resistors with good price and high quality.
Website: /English/index.asp.
