Home > Electrical & Electronics > Passive Components > Resistor & Potentiometer > Sampling High Precsion Resistors (HSR Series 1% Tolerance )
Sampling High Precsion Resistors (HSR Series 1% Tolerance )
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
YEZHAN
Model Number:
3W 0.02R
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1575 Size 1% High Precision Resistors ( Milliohm Resistance for ASR Model)NegotiableMOQ: 1 -
Medical Equipments Application Milliohm Resistors (JSR Model 1% 1w to 5w 0.001R to 0.2R)NegotiableMOQ: 1
-
1% China No. One Milliohm Resistance High Precison Resistors (HSR Series 1% Patented Resistor)NegotiableMOQ: 1
-
Munich Exhibition Patented High Precision Resistors ( Door Type HSR Model 1% Family)NegotiableMOQ: 1000 Pieces
-
Munich Electronics Exhibition High Precision Resistors ( 1% Torelance ASR Model Family)NegotiableMOQ: 1
Place of Origin
China
Brand Name
YEZHAN
Model Number
3W 0.02R
Type
Other
Technology
Metal Alloy
Package Type
Throught Hole
Resistance
1-200mohm
Resistance Tolerance
±1%
Rated Power
3W
Temperature Coefficient
±40PPM
Operating Temperature
-40℃~150℃
Specifications
Sampling High Precsion Resistors:9 years of producing experience
ISO9001,TUV,ROHS certificate
NO MOQ regulate
Sampling High Precsion Resistors (HSR Series 1% Tolerance )

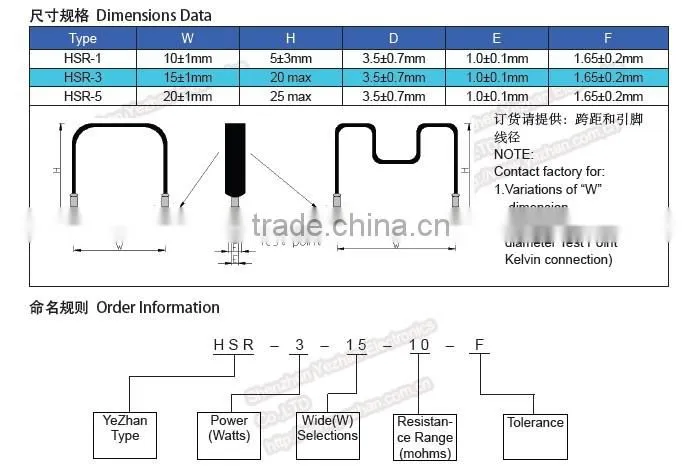

Physical parameters
A |
3.5mm±0.5mm |
H |
15mm±5mm |
W |
15mm±0.5mm |
y |
1.5±0.2mm |
l |
1.0±0.1mm |
resistance |
5mΩ±0.05mΩ |
current |
25A |
Electrical Features
a TCR×10-6/°C <±50
EMF VS Cu(0-100°C)uV/°C ≤35
Features
1.1,3,5 Watts
2.Tolerance ±5% or ±1%
3.TCR ±20 ppm/°C or ±50 ppm/°C
4.Resistance values down to 0.0025 ohms
5.High temperature proof
6.Low Inductance
7.Solderable copper leads
8.Lead-free
9.Special tight toleranceare available on request
