Specifications
Frequency Converter Shunt Resistance with good weilding technics.Very popular with inverter products application
Manganin
Oxidation Resistance Handled Frequency Converter Shunt Resistance focus on inverter products, frequency transformer, inducer applied and had great reputaion domestic market and oversea market.
This model item products for detail parameters, please visit our yezhan website address: /English/ProductShow.asp?ID=431
Features and Parameters taken examples as follows:
Model items: USR series
a.high precision.
b.TCR ±40ppm/°C.
c.current:5A-100A.
d.silver brazing process.
e.heat resistance.
f.Low Inductance.
lderable copper leads.
ply with ROHS,no lead.
i.special requirement can be customized.
Application:
Inverter products
a.Current sensing.
b.Feedback circuit.
c.Low inductance circuit.
d.Surge and pulse circuit .

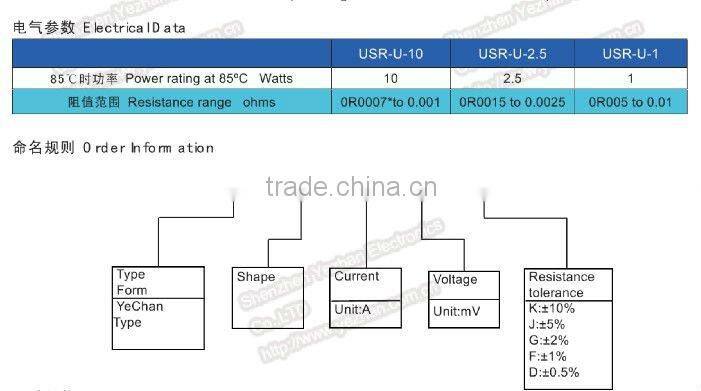

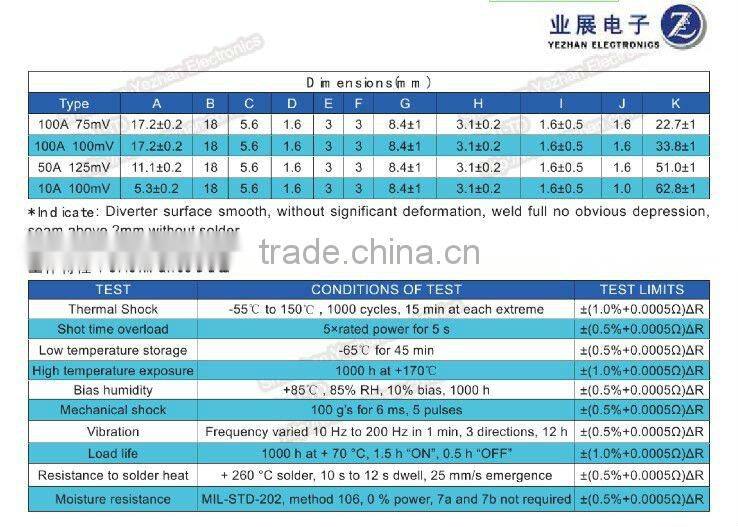

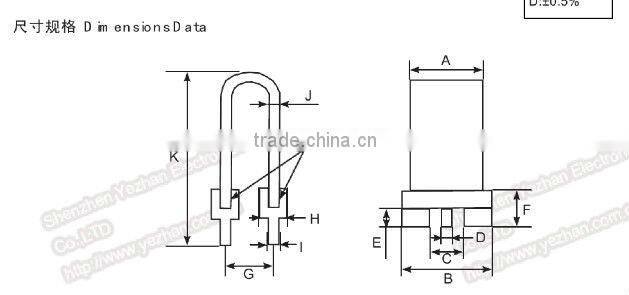

Parameter reference:
Quality resistors products guaranteed:
Yezhan Factory traffic and route:
Located in Longhua New Area, Shenzhen City, P.R.China
About 40 minutes'ride by car from Shenzhen Airport or borders between Hong Kong&Shenzhen
It's 90 minutes route by high-speed railway from Guangzhou Nan (Canton Fair).
3200-square-meter factory, 130 skilled workers, 15 QC staffs,
8 R & D engineers, 10 sales elites, 6 product lines,
full richly detected testing equipments & machines.
CE, RoHS, REACH, IEC compliance.
ISO9001: 2000 certification approved.
