TO220 Fixed Power Resistor 35W
- 50000000 Piece / Pieces per Month
- Shenzhen China
- T/T Credit Card
-
10W 70A Through Current Shunt Resistors (USR model 1% Tolerance Precision)
-
5% Telorance 0.5mR to 50mR Shunt Resistors ( PSR Model Coating for heat sinking)
-
2W Manganin More Popular Shunt Resistors (China Manufacturer 1% 2% tolerance)
-
Kama Alloy Shunt Resistors ( Milliohm Resistance for ASR model)
-
Shunt Resistance (SBN Family milliohm resistance 2 % tolerance)
-
Shunt Resistors (SBN Family milliohm resistance 1% tolerance)
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | Yezhan | Model Number: | YPR |
| Type: | Fixed Resistor | Technology: | Metal Alloy | Package Type: | Throught Hole |
| Resistance: | 0.05-1000000 ohms | Resistance Tolerance: | ±1%, ±5% or ±10% | Rated Power: | 20W |
| Temperature Coefficient: | ±50 ppm/℃ | Operating Temperature: | 0℃-150℃ |
Packaging Details
100pcs in an opp bag
Product Description

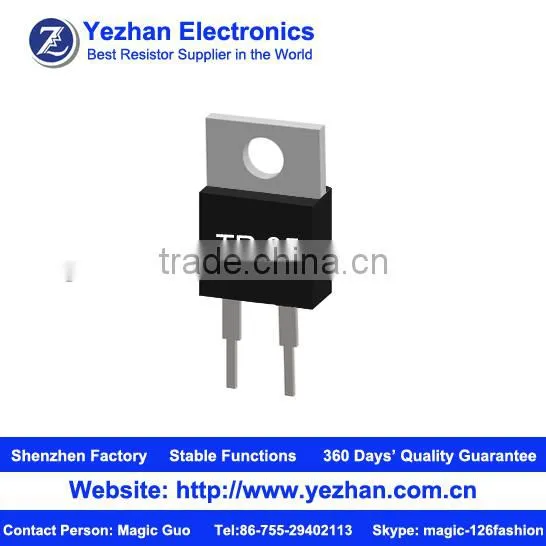

TO-220 Fixed Power Resistor 35W
1. Manufacturer's Name: Shenzhen Yezhan Electronics Co., Ltd
2. Contact Person: Magic Guo(Tel: 86-135-28766993)
3. Features:
a. Power: 20-100W
b. Tolerance: ±1%, ±5% or ±10%
c. TCR: ±50 ppm/°C
d. Resistance can be down to 0.05 Ohms.
e. Low Inductance
f. Complying with ROHS requirements, lead-free
g. Special requirements can be customized as per clients' requests.
4. Applications:
a. High-speed switching power supplies;
b. Snubber circuits
c. Load resistor for pulse generators;
d. Voltage regulation;
e. VHF amplifiers.

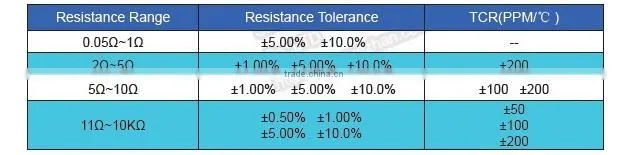

5. Electrical Data:
6. Order Information:

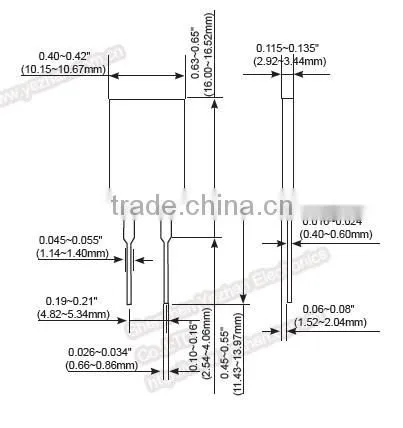

7. Dimension Data(unit: mm):

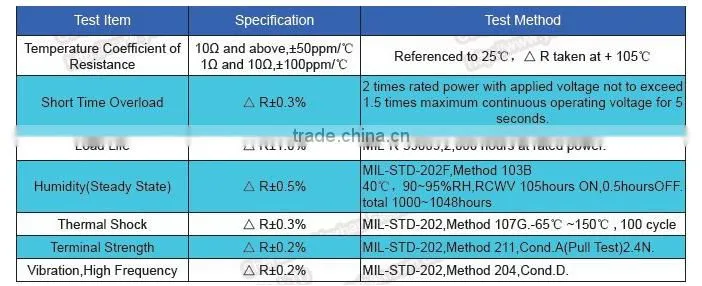

8. Environmental Characteristics:
9. Strict Quality Control:

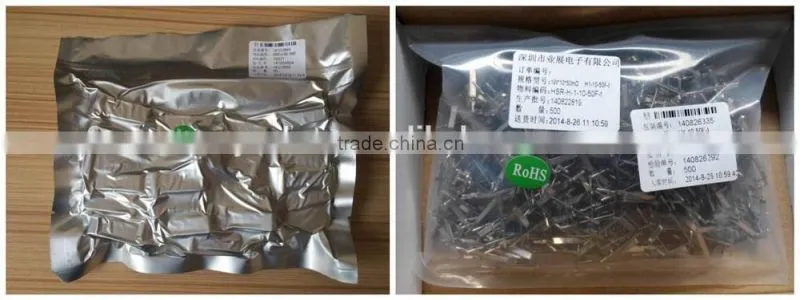

10. Packages:
Notes: We often pack this type of resistors by bulk packages in case of deforming. Of course we will also
use the vacuum packages to protect the products as per clients' requests.
11. Certificates: CE, RoHS, REACH, IEC compliance.
12. Transportation:
a. by air or by sea
b. by express: DHL, UPS or Fedex...
13. Customization Supported
14. 360 days' quality guarantee
If having any demand or request, welcome to contact me !
Company Profile
Shenzhen Yezhan Electronics Co., Ltd is a sophisticated manufacturer which highly professional performance on manufacturing, designing and researching of all kinds of Micro Resistors, Milliohm Resistors and other Resistors. It has strong product R & D and manufacturing ability & very good after-sale service. Since founded in 2005, our advanced production lines, precise equipments, strict quality control process and experienced engineers team are capable to fulfill the toughest requirement from customers worldwide.
Our Products & Services
Resistor Manufacturing: milliohm resistors and shunt resistors, including high-precision welding feet current sense resistors, high-precision power sense resistors, presser foot sense resistors, jump wire resistors and bare sense resistors.
OEM & ODM capacity:
6400-square-meter factory, 130 skilled workers, 15 QC staffs, 8 R & D engineers, 10 sales elites, 6 product lines, full richly detected testing equipments & machines.
Certificates:
CE, RoHS, REACH, IEC compliance.
ISO9001: 2000 certification obtained.
Location and traffic route:
Located in Longhua New Area, Shenzhen City, P.R.China,
It is about 40 minutes ride by car from Shenzhen Airport or borders between Hong Kong and Shenzhen,
It is 90 minutes route by high-speed railway from Guangzhou Nan (Canton Fair).
