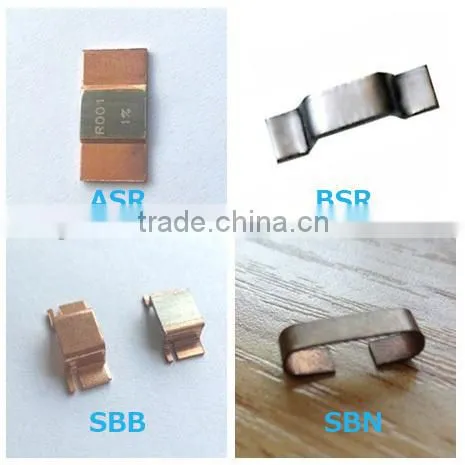

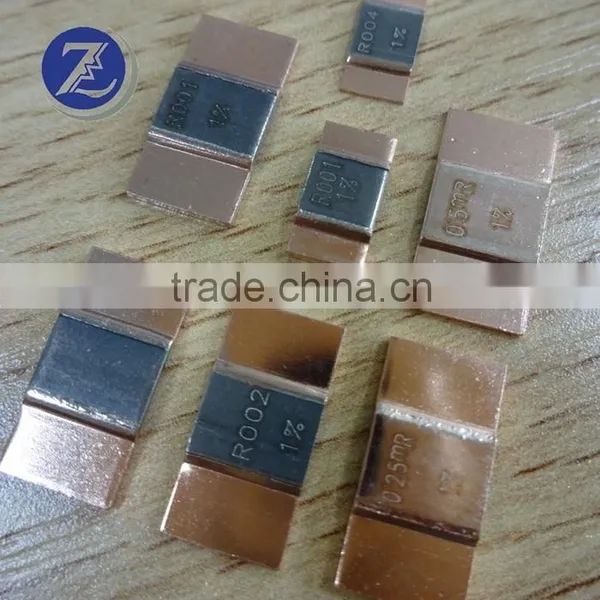

4 Series of SMD ( Surface Mount ) Resistors

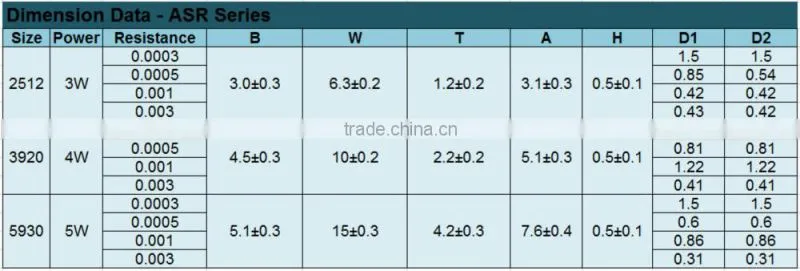

ASR
Tolerance ±5%, ±2%, or ±1%;
TCR ±20 ppm/℃ or ±50 ppm/℃;
Resistance values down to 0.0002 ohms;
Welded construction;
High temperature proof;
Low electrical inductance, less than 10nH;
Lead-free;
Special specification is available for request.

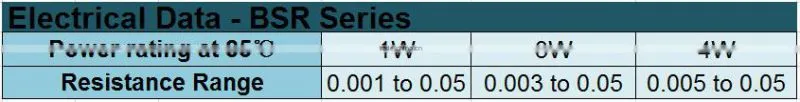

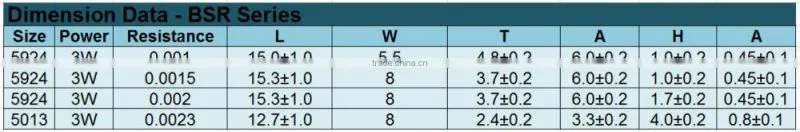

BSR
1 - 5 Watts;
Tolerance ±5%, ±10%;
TCR ±40ppm/℃;
Resistance values down to 0.001 ohms;
Low electrical inductance, less than 10nH;
Lead-free;
Special specification is available for request.

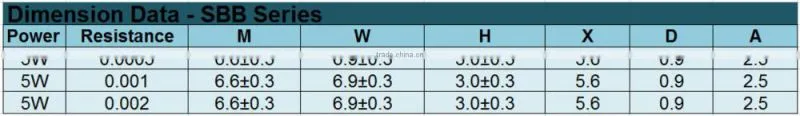

SBB
2 - 5 Watts;
Tolerance ±5%, ±1%;
TCR ±20ppm/℃ or ±50ppm/℃;
Resistance values down to 0.0005 ohms;
Low electrical inductance, less than 10nH;
Lead-free;
Special specification is available for request.

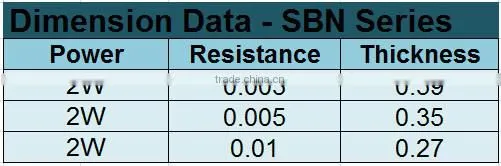

SBN
2 - 5 Watts;
Tolerance ±5%, ±1%;
TCR ±20ppm/℃ or ±50ppm/℃;
Resistance values down to 0.0005 ohms;
Low electrical inductance, less than 10nH;
Lead-free;
Special specification is available for request.
Special specification is available for request.

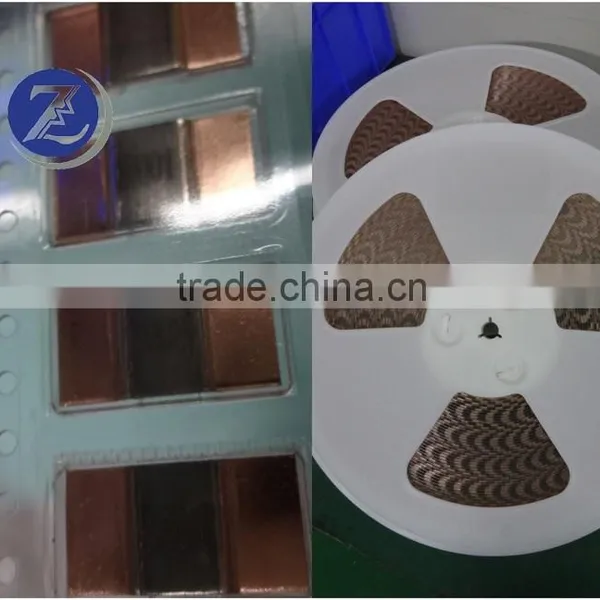

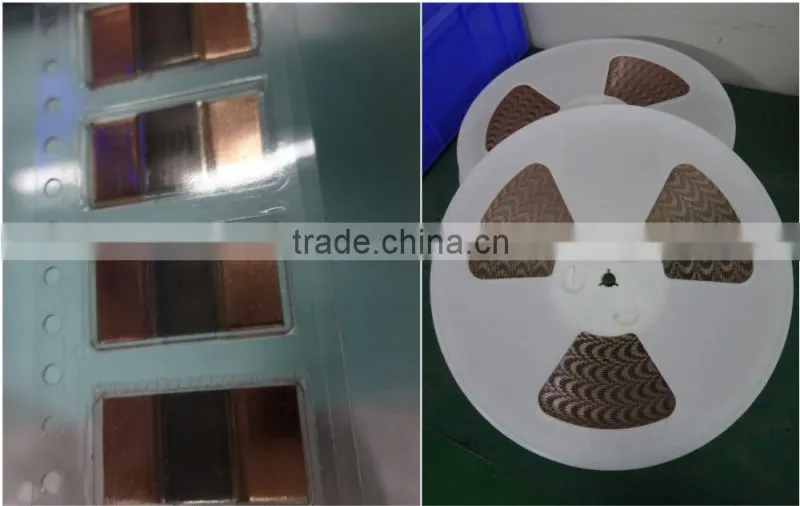

Tape and reel Package:

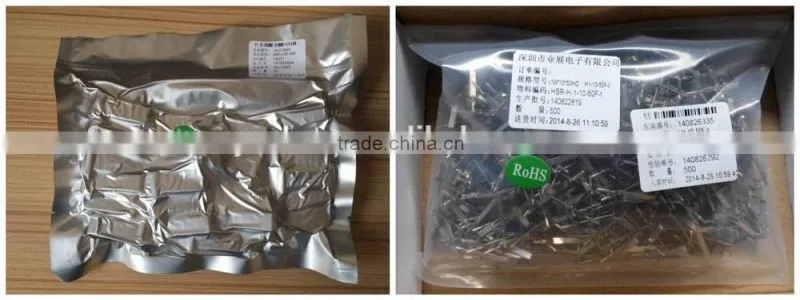

Bulk Package:
Strict Quality Control:
Yezhan Electronics is a 10 years old professional manufacturer of precision resistors.
