Place of Origin:
Guangdong, China
Brand Name:
JDDTECH
Model Number:
Polyester expandable sleeving(JDD-FR)
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PPS Expandable SleevingUS$ 0.315 - 3.125MOQ: 2000 Meters -
Nylon Wire Expandable SleevingUS$ 0.215 - 1.125MOQ: 2000 Meters
-
Cable Sleeving Kit (UV Expandable Sleeving ,Heat Shrink Tubing)US$ 1.23 - 5.2MOQ: 3000 Pieces
-
Cable Management-PET Expandable SleevingUS$ 0.045 - 5.6MOQ: 3000 Meters
-
Cable Protection-PET Expandable SleevingUS$ 0.045 - 7.2MOQ: 3000 Meters
Place of Origin
Guangdong, China
Brand Name
JDDTECH
Model Number
Polyester expandable sleeving(JDD-FR)
Type
Other, expandable sleeving
Material
Other, Polyester
Specifications
Expandable braided sleeveLow price
high quality
short lead time
Best after-sale service

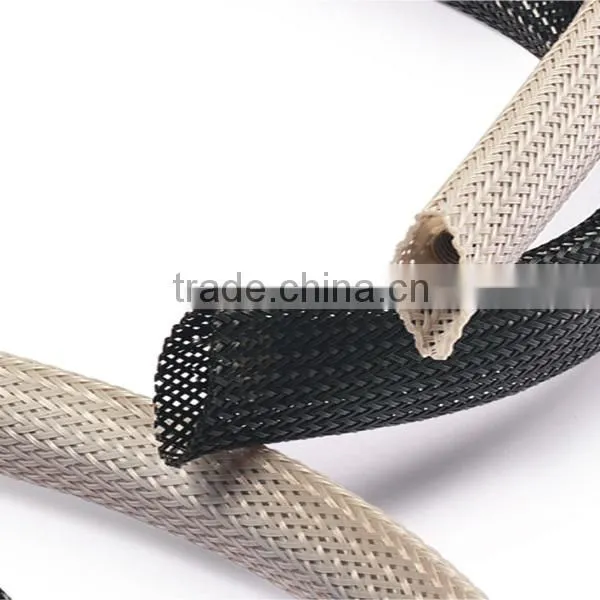

JDD-FR polyester expandable sleeving is flame-retardant and halogen-free. It offers durable abrasion resistance is a wide range of industrial applications. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors. Totally expanded the sleeving can reach at least 1.5 times than the initial dimension.

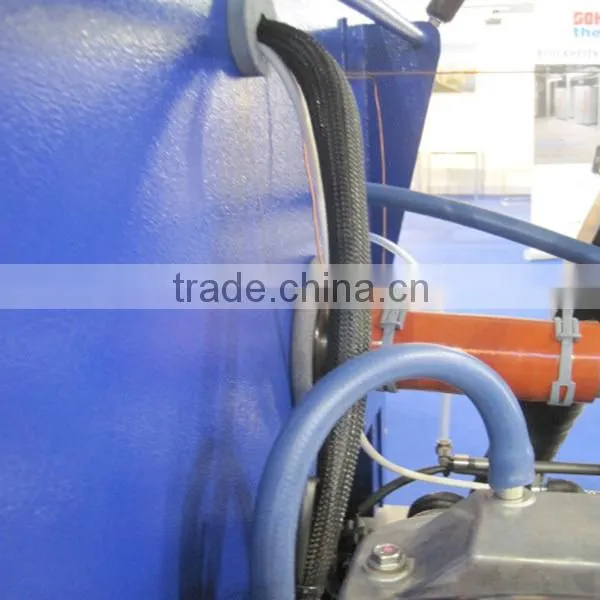

Application: It is mainly used to cover cables, wire harnesses, tubes, industrial hoses where is required an good mechanical protection.
| Technical data | |
| Material | Polyester |
| Operating Temperature | -50°C-+150°C |
| Melt point | 240±10°C |
| Flammability | VW-1 |
| Standard color | Black and grey |
| Approval | UL,ROHS,PFOS,REACH,Halogen Free |
| Cutting tool | Hot knife |
| Datasheet | |||||
| Nominal sizeW | Part No. | Expanded range | PackingL | ||
| Inch | mm | Min.I | Max.O | standard spool | |
| 1/8" | 3 | FR-003 | 1 | 6 | 1000 m |
| 1/4" | 6 | FR-006 | 3 | 9 | 500 m |
| 5/16" | 8 | FR-008 | 5 | 16 | 350 m |
| 3/8" | 10 | FR-010 | 7 | 19 | 350 m |
| 1/2" | 12 | FR-012 | 8 | 24 | 300 m |
| 5/8" | 15 | FR-016 | 10 | 27 | 250 m |
| 3/4" | 20 | FR-019 | 14 | 30 | 200 m |
| 1" | 25 | FR-025 | 18 | 35 | 200 m |
| 1 1/4" | 30 | FR-032 | 20 | 50 | 150 m |
| 1 1/2" | 40 | FR-038 | 30 | 60 | 100 m |
| 1 3/4" | 45 | FR-045 | 35 | 75 | 100 m |
| 2" | 50 | FR-050 | 40 | 80 | 100 m |
| 2 1/2" | 64 | FR-064 | 45 | 105 | 100 m |
| 3" | 76 | FR-076 | 64 | 120 | 100 m |
| Unit:mm | |||||
