Contact Platform Support
Help CenterPPS Expandable Sleeving
US$ 0.315 - 3.125
MOQ: 2000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
JDDTECH
Model Number:
JDD-PPS
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Nylon Wire Expandable SleevingUS$ 0.215 - 1.125MOQ: 2000 Meters -
Cable Sleeving Kit (UV Expandable Sleeving ,Heat Shrink Tubing)US$ 1.23 - 5.2MOQ: 3000 Pieces
-
Cable Management-PET Expandable SleevingUS$ 0.045 - 5.6MOQ: 3000 Meters
-
Cable Protection-PET Expandable SleevingUS$ 0.045 - 7.2MOQ: 3000 Meters
-
Cable Protection-Nylon Expandable SleevingUS$ 0.069 - 8.6MOQ: 3000 Meters
Place of Origin
Guangdong, China
Brand Name
JDDTECH
Model Number
JDD-PPS
Type
Other, Expandable sleeving
Material
Other, PPS
Specifications
High flame-retardant with UL94-V0.PPS Expandable braided sleeve
Low price
high quality
short lead time

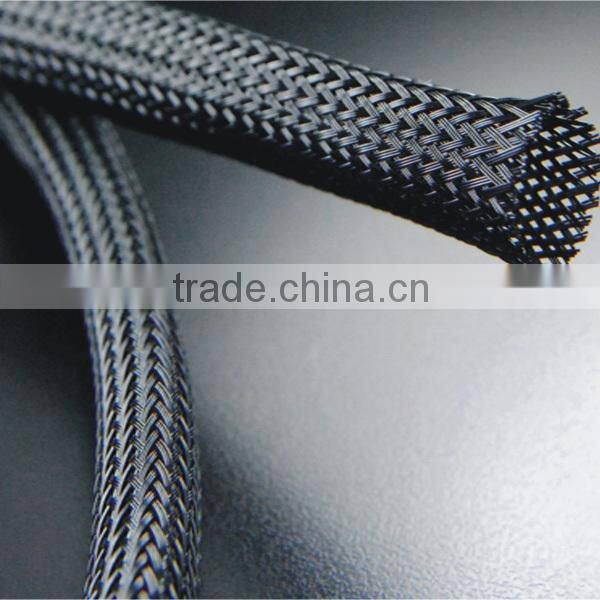

JDD-PPS expandable braided sleeving is made of PolyPhenylene Sulfide ( PPS ) monofilament UL94 V-0. It is commonly used in high temperature environments. It has high abrasion resistance, chemical resistance, high temperature stability, low moisture absorption, excellent dimensional stability.

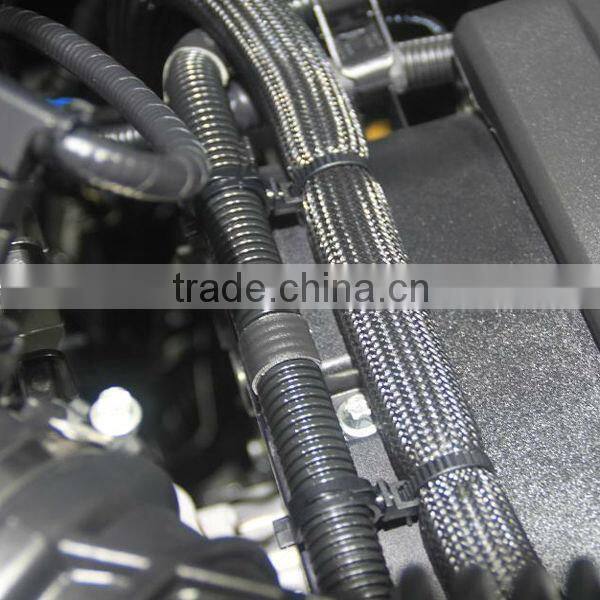

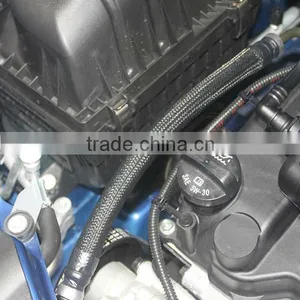

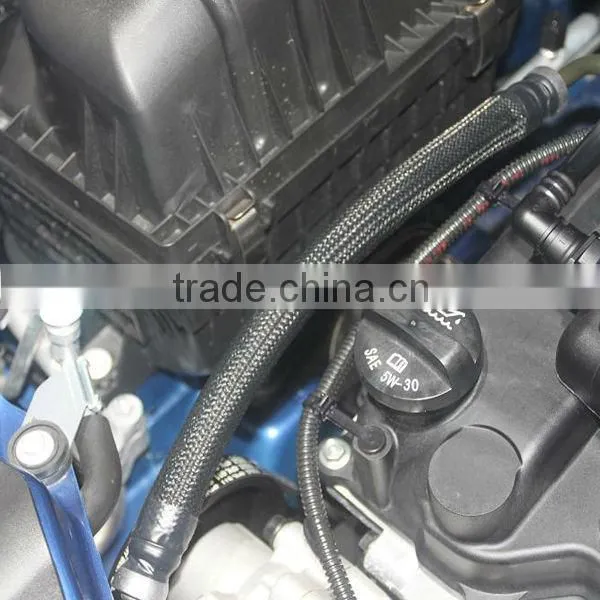

Application: It is mainly used in the following fields: automotive, railways, aerospace, telecom and military where are required high characteristics for flame-retardancy and high temperature resistance.
| Technical data | |
| Material | PPSPolyphenylene sulfide |
| Operating range | -70°C+200°C |
| Melt point | 285±10°C |
| Flnmmability | UL94 V-0 |
| Standard color | Black and natural |
| Certificate | ROHS |
| Cutting tool | Hot Knife |
| Other features | Acids,solvents and fuels resistant |
| Datasheet | |||||
| Nominal sizeW | Part No. | Expanded range mm | PackingL | ||
| Inch | mm | Min.I | Max.O | Standard spool | |
| 1/8" | 3 | PPS-003 | 1 | 6 | 1000 m |
| 1/4" | 6 | PPS-006 | 3 | 9 | 500 m |
| 5/16" | 8 | PPS-008 | 5 | 16 | 350 m |
| 3/8" | 10 | PPS-010 | 7 | 19 | 350 m |
| 1/2" | 12 | PPS-012 | 8 | 24 | 300 m |
| 5/8" | 16 | PPS-016 | 10 | 27 | 250 m |
| 3/4" | 19 | PPS-019 | 14 | 30 | 200 m |
| 1" | 25 | PPS-025 | 18 | 35 | 200 m |
| 1 1/4" | 30 | PPS-032 | 20 | 50 | 150 m |
| 1 1/2" | 40 | PPS-038 | 30 | 60 | 100 m |
| 1 3/4" | 45 | PPS-045 | 35 | 75 | 100 m |
| 2" | 50 | PPS-050 | 40 | 80 | 100 m |
| 2 1/2" | 64 | PPS-064 | 45 | 105 | 100 m |
| 3" | 76 | PPS-076 | 64 | 120 | 100 m |
| Unit:mm | |||||
