Home > Products > Special expandable sleeving > Copper foil shielding sleeving
Copper foil shielding sleeving
- 3000000 Meter / Meters per Month
- YanTian
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | JDDTECH | |
| Model Number | SES-012 |
Product Description

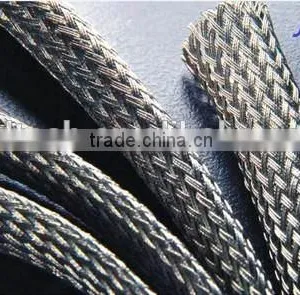

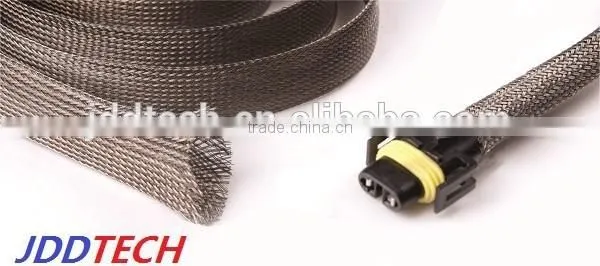

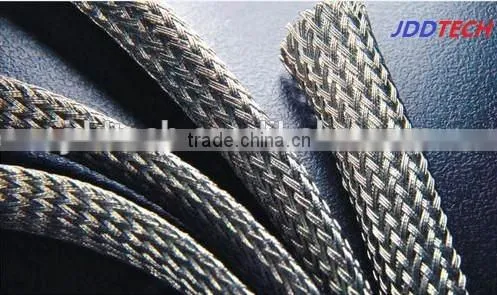

JDD-SS tinned copper braided sleeving offers a good solution for where EMI shielding and light weight are required at the same time. It also provides exceptional abrasion resistance ad cut-through resistance with excellent flexibility.
Application:
This product has a variety of industrial application in high speed train, underground, aerospace and high-tech special products.
Technical Data:
Material:Copper filament
Operating range:-40℃-+150℃
Standard color:Tinned color
Certificate:RoHs
Cutting tool:Scissors
Other features:Resists gasonline and engine chemicals
| Part No. | Nominal Size(W) | Expandable range(I to O) | Packing |
| SES-004 | 4.0 | 3.0-7.0 | 300M/R |
| SES-006 | 6.0 | 4.0-9.0 | 200M/R |
| SES-008 | 8.0 | 6.0-12.0 | 200M/R |
| SES-010 | 10.0 | 7.0-16.0 | 150M/R |
| SES-012 | 12.0 | 8.0-20.0 | 100M/R |
| SES-015 | 15.0 | 10.0-23.0 | 100M/R |
| SES-020 | 20.0 | 13.0-28.0 | 100M/R |
| SES-025 | 25.0 | 18.0-32.0 | 100M/R |
| SES-030 | 30.0 | 20.0-40.0 | 50M/R |
| SES-040 | 40.0 | 30.0-50.0 | 50M/R |
| SES-050 | 50.0 | 40.0-60.0 | 50M/R |
