Description:
JDD expandable braided sleeving is made of PolyPhenylene Sulfide (PPS) monofilament UL94 V-0. It is commonly used in high temperature environments. It has high abrasion resistance, chemical resistance, high temperature stability, low moisture absorption, excellent dimensional stability.
Application:

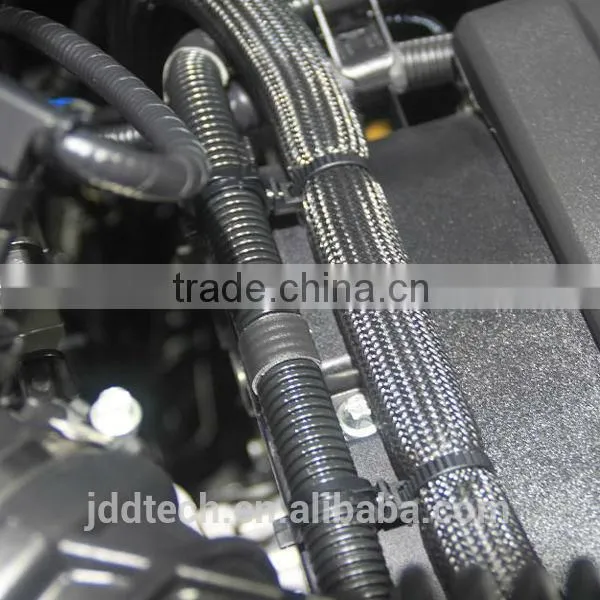

It is used mainly in the following fields: automotive, railways, aerospace, telecom and military where are required high characteristics for flame-retardancy and high temperature resistance.
Technical data:
Material: Polyphenylene sulfide (PPS)
Operating range: -70°C ÷ + 200°C
Melt Point: 285°C
Flammability: UL 94 V-0
Standard colours: black, grey
Cutting tool: hot knife
Certified: RoHS
Other features: acids, solvents and fuels resistant
Dimensions:
Nominal Size (W) |
Part No. |
Expanded Range |
Packing (L) |
|||
Inch |
mm |
Min.(I) |
Max.(O) |
Standard spool |
Shop spool |
|
1/8" |
3 |
PPS-003 |
1 |
6 |
500 m |
100m |
1/4" |
6 |
PPS-006 |
3 |
9 |
500 m |
100m |
5/16" |
8 |
PPS-008 |
5 |
16 |
350 m |
100m |
3/8" |
10 |
PPS-010 |
7 |
19 |
350 m |
100m |
1/2" |
12 |
PPS-012 |
8 |
24 |
300 m |
100m |
5/8" |
15 |
PPS-016 |
10 |
27 |
250 m |
100m |
3/4" |
20 |
PPS-019 |
14 |
30 |
200 m |
100m |
1" |
25 |
PPS-025 |
18 |
35 |
200 m |
100m |
1 1/4" |
30 |
PPS-032 |
20 |
50 |
150 m |
100m |
1 1/2" |
40 |
PPS-038 |
30 |
60 |
100 m |
100m |
1 3/4" |
45 |
PPS-045 |
35 |
75 |
100 m |
100m |
2" |
50 |
PPS-050 |
40 |
80 |
100 m |
100m |
2 1/2" |
64 |
PPS-064 |
45 |
105 |
100 m |
100m |
3" |
76 |
PPS-076 |
64 |
120 |
100 m |
100m |
Unit:mm
Note:
- 1. Nominal size indicates the flat width.
- 2. The part No. will be followed with BK,GR and so on to indicate the color of sleeving.
- 3. This sleeving has expandable character, the following sizes are covered by the nearest: 16mm=15mm, 19mm=20mm, 32mm=30mm, 38mm=40mm, 51mm =50mm.
- 4. Special packing, sizes and colours can be supplied upon request.
- 5. All numerical data are average or typical values, not including customized sizes.
