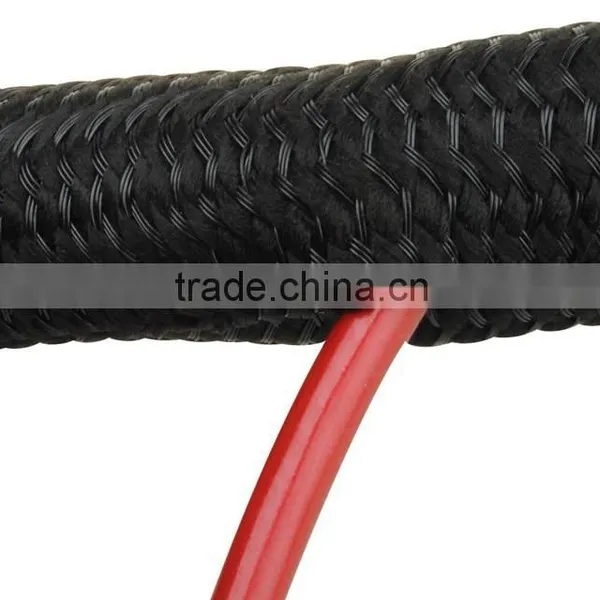

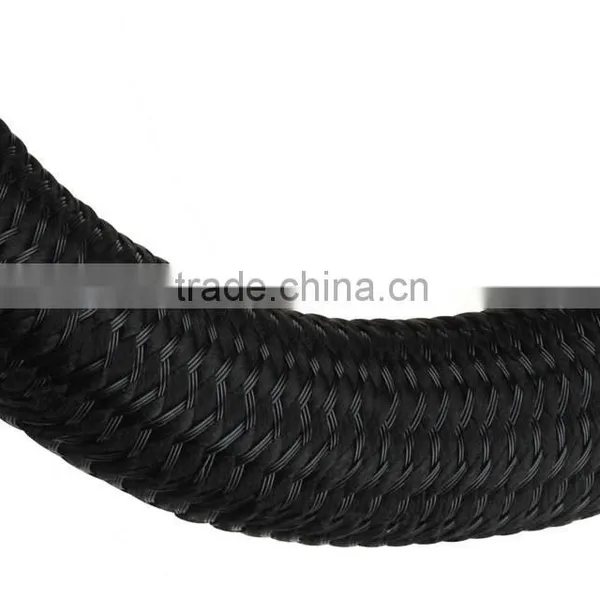

JDD silent braided wrap is woven by Polyester monofilament and Polyester multifilament. The special structure offers excellent reduction of noise. Side-entry design makes it easy to install, remove and reuse for wire harnesses or cables, especially where it is installed in difficult areas
to reach such as door panels or dashboards. This kind of sleeving achieves the same protection
function as other common expandable sleeving products adding the noise reduction.
Application:

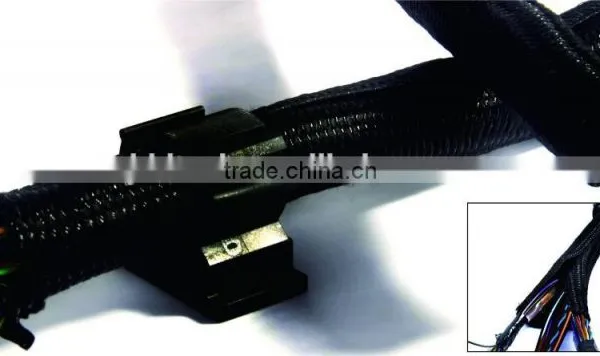

Most commonly used on wire harness,cable assemblies,flat ribbon cable,tubing and hoses providing a tough,durable protection and a reduced noise level in the automotive applications,railway,industrial machinery and similar fields.
Technical data:
Material:PET monfilament and multifilament
Operating:-50℃-+150℃
Melt Point:240±10℃
Flammability:VW-1
Standard color:Black
Certificate:RoHs,Halogen free
Cutting tool:Hot knife
| Part No. | I.D(d) | Overlap(%) | Max.bundle Dia | Packing(L) |
| SSCW-005 | 5 | 25 | 6 | 200M/R |
| SSCW-009 | 9 | 25 | 10 | 100M/R |
| SSCW-013 | 13 | 25 | 14 | 50M/R |
| SSCW-019 | 19 | 25 | 20 | 25M/R |
| SSCW-025 | 25 | 25 | 26 | 25M/R |
| SSCW-032 | 32 | 25 | 33 | 25M/R |
