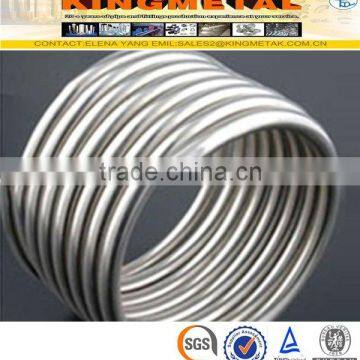

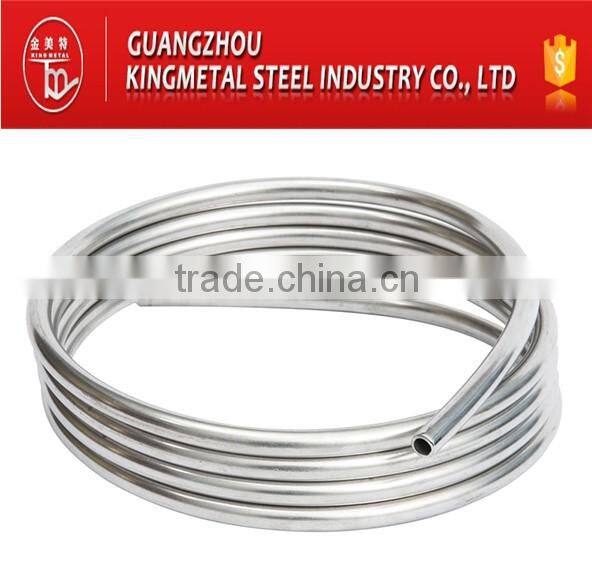

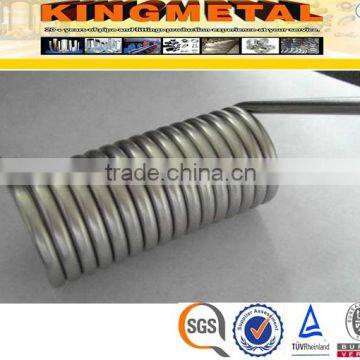

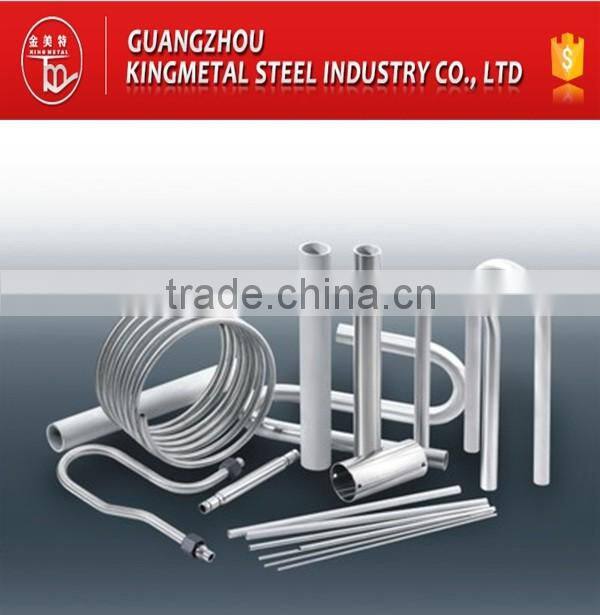

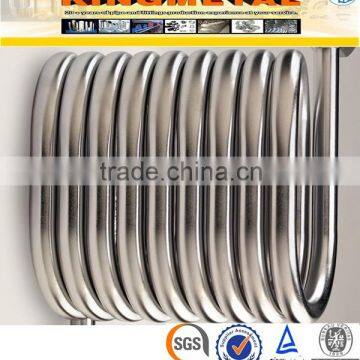

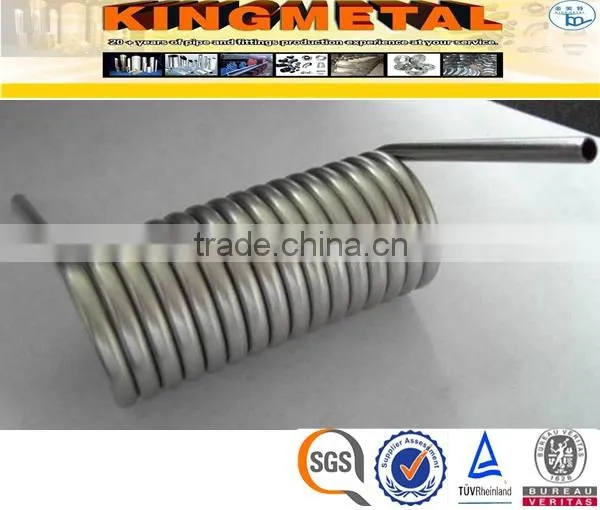

TP304/316 Stainless Steel Coil Tube Price Unit
US$ 3 - 8
MOQ: 500 Kilograms
Key Specifications
Get Latest Price
Standard:
ASTM, AISI, DIN, EN, GB, JIS
Place of Origin:
China
Brand Name:
Kingmetal
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ASTM A53 Gr.B SCH40/SCH80 Seamless Carbon Steel PipeUS$ 350 - 2,500MOQ: 1 Ton -
ASTM A106 GR.B Seamless Carbon Steel PipeUS$ 500 - 2,500MOQ: 1 Ton
-
ASTM A500 Welded Black Carbon ERW Steel PipesUS$ 350 - 1,000MOQ: 1 Ton
-
API 5L Welded Carbon Steel Spiral Seam Submereged Arc Welded Pipe SSAW PipeUS$ 350 - 1,500MOQ: 1 Ton
-
BS 1387 Q195 Glass B Welded Pre Galvanized Steel GI PipeUS$ 400 - 1,500MOQ: 1 Ton
Standard
ASTM, AISI, DIN, EN, GB, JIS
Place of Origin
China
Brand Name
Kingmetal
Model Number
EL-CT
Type
Seamless
Steel Grade
200 Series
Application
Heat Exchanger
Certification
Other, ISO, ISO,TUV,AD
Welding Line Type
EFW
Thickness
0.5-100mm
Outer Diameter
6-800mm
Material
TP304/304L/304H, 316/316L, 321/321H, 317/317L, 347/347H, 309S, 310S, 2205, 2507, 904L (1.4301, 1.4306, 1.4948, 1.4401, 1.4404, 1.4571, 1.4541, 1.4833, 1.4878, 1.4550, 1.4462, 1.4438, 1.4845)
Standards: ASTM A312, A213, A269, A511, A789, A790, A376, EN 10216-5, EN 10297,DIN 17456, DIN 17458,JISG3459, JIS GS3463, GS3467, JIS G3448, GOST 9940, GOST 9941, etc.
Application:
1.Control Tubing in Oil and Gas Well
2. Instrument Tubing
3. Chemical Injection Tubing Line
4. Pre-insulated Tubing
5. Electric Heating or Steam Heating Tubing Line
6. Heater Tubing Line etc
Process: Cold drawn, Cold rolled, Precision Rolled for Seamless Pipe or Tube
Surface Bright,Polished,2B,NO.1,NO.4,HL,BA,8K,Mirror,2D,checkered,
Finish: Outside & Inside Polished
Ends: Beveled or plain end, square cut, burr free
Package:Each tube with plastic bag and caps,then in polywooden cases.
| Material | ASTM A269 Chemical Composition % Max | ||||||||||
| C | Mn | P | S | Si | Cr | Ni | Mo | N B | Nb | Ti | |
| TP304 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 18.0-20.0 | 8.0-11.0 | ^ | ^ | ^ . | ^ |
| TP304L | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 | 18.0-20.0 | 8.0-12.0 | ^ | ^ | ^ | ^ |
| TP316 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | ^ | ^ | ^ |
| TP316L | 0.035 D | 2.00 | 0.045 | 0.030 | 1.00 | 16.0-18.0 | 10.0-15.0 | 2.00-3.00 | ^ | ^ | ^ |
| TP321 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 17.0-19.0 | 9.0-12.0 | ^ | ^ | ^ | 5C -0.70 |
| TP347 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 17.0-19.0 | 9.0-12.0 | 10C -1.10 | ^ | ||
| Material | Heat treatment | Temperure F (C) Min. | Hardness | |
| Brinell | Rockwell | |||
| TP304 | Solution | 1900 (1040) | 192HBW/200HV | 90HRB |
| TP304L | Solution | 1900 (1040) | 192HBW/200HV | 90HRB |
| TP316 | Solution | 1900(1040) | 192HBW/200HV | 90HRB |
| TP316L | Solution | 1900(1040) | 192HBW/200HV | 90HRB |
| TP321 | Solution | 1900(1040) F | 192HBW/200HV | 90HRB |
| TP347 | Solution | 1900(1040) | 192HBW/200HV | 90HRB |
| OD, inch | OD Tolerance inch(mm) | WT Tolerance % | Length Tolernace inch(mm) | |
| + | - | |||
| ≤ 1 / 2 | ± 0.005 ( 0.13 ) | ± 15 | 1 / 8 ( 3.2 ) | 0 |
| > 1 / 2 ~1 1 / 2 | ± 0.005(0.13) | ± 10 | 1 / 8 (3.2) | 0 |
| > 1 1 / 2 ~< 3 1 / 2 | ± 0.010(0.25) | ± 10 | 3 / 16 (4.8) | 0 |
| > 3 1 / 2 ~< 5 1 / 2 | ± 0.015(0.38) | ± 10 | 3 / 16 (4.8) | 0 |
| > 5 1 / 2 ~< 8 | ± 0.030(0.76) | ± 10 | 3 / 16 (4.8) | 0 |
| 8~< 12 | ± 0.040(1.01) | ± 10 | 3 / 16 (4.8) | 0 |
| 12~< 14 | ± 0.050(1.26) | ± 10 | 3 / 16 (4.8) | 0 |
