Home > Products > New Products > Forced Ventilation Fan Automatic Roof Extractor Fan
Forced Ventilation Fan Automatic Roof Extractor Fan
- 10000 Piece / Pieces per Month
- Ningbo Shanghai
Product Details
Electric Current Type: | AC | Mounting: | Wall Fan | Blade Material: | Stainless Steel |
Place of Origin: | Zhejiang, China | Brand Name: | DINGBEN | Model Number: | DINGBEN |
Voltage: | 110V/220V/380V | Power: | 1.1KW | Air Volume: | 44500m3/h |
Speed: | 425rpm | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

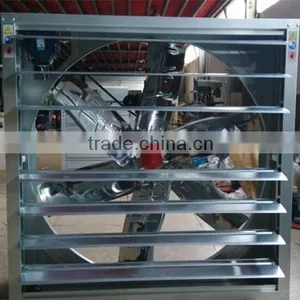

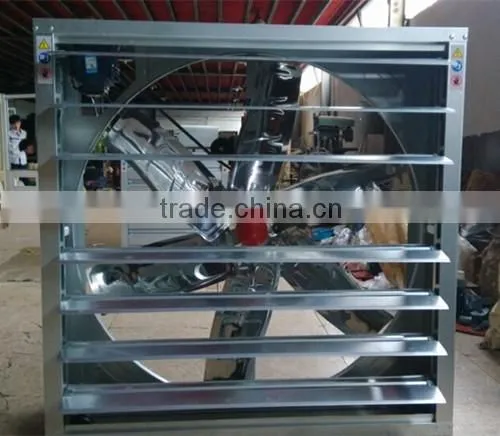

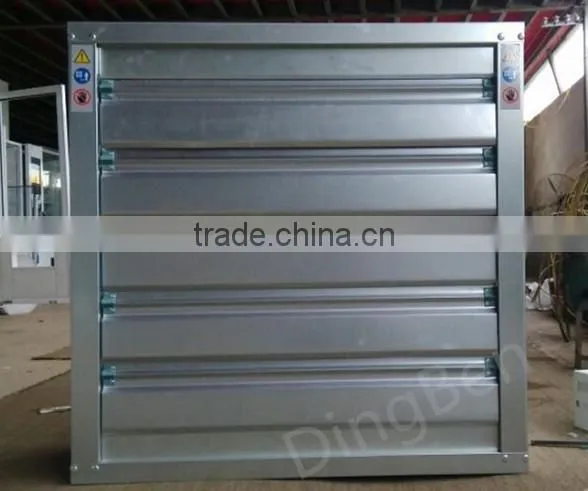

1.Product Pictures of Exhaust Fan
2.Product Description of Exhaust Fan
Size (mm) | 1380*1380*400 | Transmission Mode | Belt |
Blade Dia (mm) | 1250 | Rotational Speed(r/min) | 425 |
CFM(m3/h) | 44500 | Voltage (v) | 380 |
Noise (db) | ≤65 | Input Power (w) | 1100 |
Total Pressure (pa) | 60 | Net Weight (kg) | 74 |
3.Other Sizes Also Available
Model | Size(mm) | Blade Dia(mm) | Rotational Speed(r/min) | CFM(m3/h) | Input Power(w) | Noise(db) |
DB-80T08 | 800*800*400 | 720 | 650 | 20000 | 370 | ≤65 |
DB-90T08 | 900*900*400 | 750 | 630 | 22000 | 370 | ≤65 |
DB-100T08 | 1000*1000*400 | 900 | 610 | 25000 | 370 | ≤65 |
DB-110T1 | 1100*1100*400 | 1000 | 485 | 32500 | 750 | ≤65 |
DB-122T1 | 1220*1220*400 | 1100 | 435 | 37500 | 750 | ≤65 |
DB-138T1 | 1380*1380*400 | 1250 | 425 | 44500 | 1100 | ≤65 |
DB-153T1 | 1530*1530*400 | 1400 | 325 | 55800 | 1100 | ≤70 |
4.Certification
5.Plastic Parts& Upgraded Details

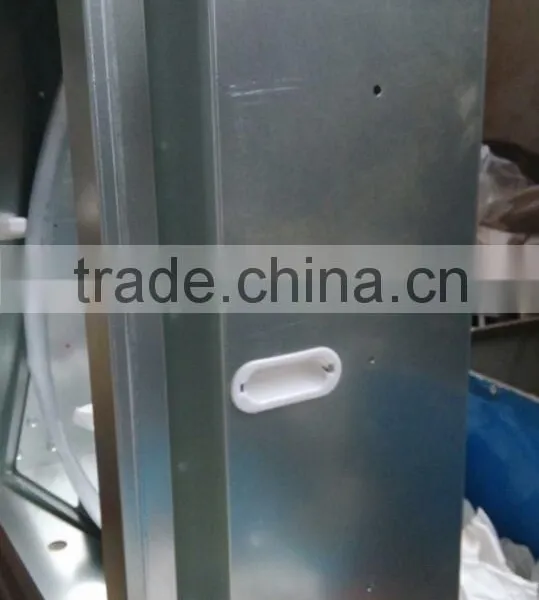

A:With this handle, two men could lift a 1530mm or 1380mm height exhaust fan easily.
B:Riveting could make shutters more firm.

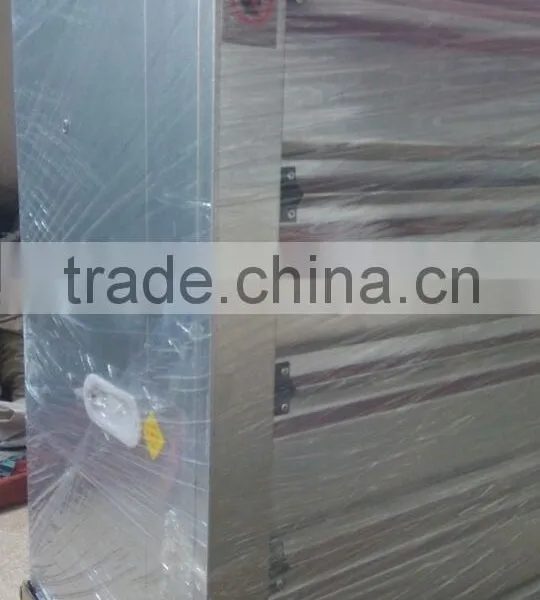

6.Packaging And Shipping
7.Working Principle
Company Information
1.About Us
is to import and export all kinds of environmental air conditioners and industry fans and so on.
We are a subcompany of Hang zhou Dingben Environmental Technology and Science
Co., Ltd., which is a factory specializing in manufacturing sheet metal products.
3.Our Markets
Our main markets are South Asia, Southeast Asia, South America, the Middle East and Africa.
Our products enjoy a good reputation among our customers.
We welcome customers, business associations and friends from all parts of world to contact us and seek
cooperation for mutual benefit.
Q: Are you a trading company or a factory ?
A: We have own factory, but for easy shipping , we use trading company to register .
Q: Why your price more expensive than other China suppliers ?
A: Our material we use is much better than other suppliers, we use high zinc contect galvanized sheet
for all axial flow fans, and screws all use good quality stainless steel, won't be rusted. For plastic products
(eg. air coolers ) we all use new material to make sure the products can be long use. All our products,
we use China famous motor brand, the motor can 1 year guarantee, with a correct using, the motor life
can be more than 10 years.
Q: What voltages you can do , if you can make special voltages ?
A: Almost all kinds of voltages we all can make, but for special voltages, we have a big MOQ and maybe
price will be a little higher. Our normal voltage is 380V 50HZ 3phase.
Q: Can you cheaper ?
A: We have many quality stage products for client choose, different stage price will be different, if you
really want low price we will suggest you choose lower stage product, in our company, we don't have
bad quality products, you can reassure about the quality.
Q: I want to use our own brand , is it ok?
A: Of course it's OK, we can make OEM products and also can provide our own brand products,
it's all by your request.
