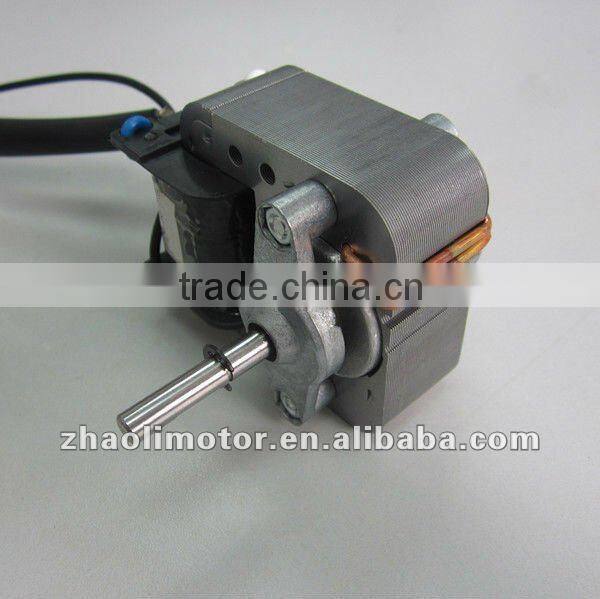

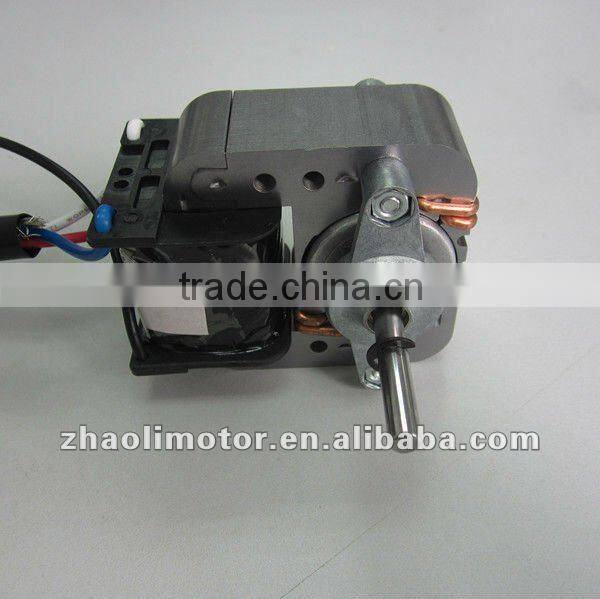

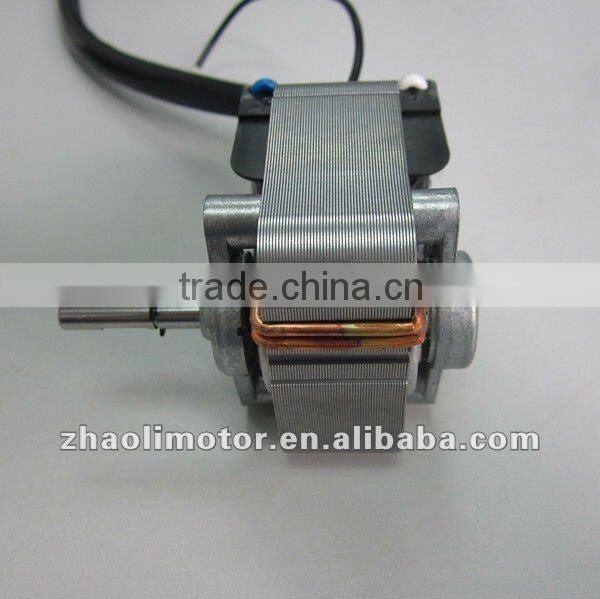

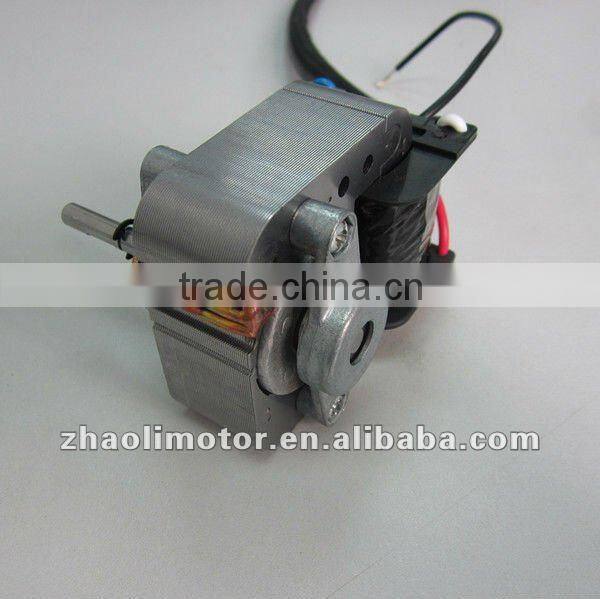

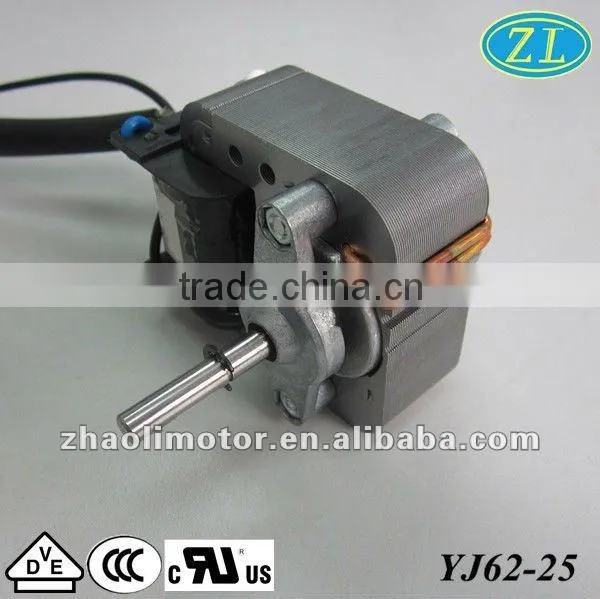

Help CenterMotor ac Shaded Pole Motor YJ62-25: 220V,50hz,2500-3000rpm,CL.B Electromotor Electric Motor Specifications
Related Products
-
Electric Fan Motor High Torque Low Rpm Shaded Pole MotorYJ62-25 Type:VDE,UL,CE,CCC,CUL Certified High Speed Low NoiseUS$ 3.5 - 6MOQ: 1000 Units -
Asynchronous Motor Electric Oven Fan Motor Small Powerful Electric Motors YJ62-20:120V, 60HZ, CL.H, 31W Motor SpecificationsUS$ 3 - 6.5MOQ: 1000 Units
-
220v 50Hz 3000rpm 50w Shaded Pole Motor for Ventilation Vacuum Pump and NebulizerUS$ 3 - 5MOQ: 1000 Pieces
-
230v 50Hz 3000rpm 50w Shaded Pole Motor for Ventilation Vacuum Pump and NebulizerUS$ 3 - 5MOQ: 1000 Pieces
-
Ac Motor High Rpm Ac Gear Motor Exhaust Fan Motor Single Phase Shaded Pole Motor YJ62: 230V, 50hz, Insulation CL. A/E/B/F/HNegotiableMOQ: 1000 Units
Specifications
Rated Voltage:100-240VACLaminations: 8--25mm
Size: 48*48mm
Life: 3000 Hours Min
Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
Product General Performance Parameters:
Voltage----------------------100-240VAC
Frequency-------------------50/60HZ
Power------------------------5-100W
Insulation Class----------- -A/E/B/F/H
Noise--------------------------less than 43Db(A)
Life----------------------------5000-10000Hours
Core Thickness---------------8-40mm
Shaft Diameter(mm)---------Φ2.5,Φ3.17,Φ4.0,Φ4.6,Φ5.0,Φ5.5,Φ6.0,Φ6.35
Series: YJ62-25
Characteristics:
Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenance.
Application:
Ventilator, Nebulizer, Vacuum pump, Air pump
Motor with Pump assembly:
