Sch40 90 Degree Carbon Steel Elbow

FOB Price

US$ 0.2 - 500 / Piece

20 Pieces(Min. Order)

Port China Main Port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Carbon Steel	Technics	Other, Forged, Casting
Type	Elbow	Place of Origin	China
Model Number	KM0928	Brand Name	KM
Connection	Other, Welding, Male, Female	Shape	Other, Equal, Equal, Reducing
Head Code	Other, round

Product Description

Carbon Steel Elbow

Size: 1/2"-48" (Seamless & Welded)

Wall Thickness

SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS & NS available with NACE MR 01-75

Material: ASTM A234 WPB / A420 WPL3/ A420 WPL6/ MSS-SP-75 WPHY 42/46/52/56/60/65/70 etc.

Standard:

ASME: ANSI B16.9, ANSI B16.28, MSS SP75
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
SGP: JIS B2313
EN: EN10253-1, EN10253-2

Type: Long Radius(LR), Short Radius(SR)

L/R Elbow(45 & 90 & 180 degree) S/R(90 & 180 degree)

Bending Angle:

Degree 15, 30, 45, 60, 90, 135, 180

R=1D,1.5D, 3D, 5D, 6D, 8D, 10D & 20D.

And also could manufacture according to the angles given by clients.

Surface Treament: Anti-rust oil, sand blast, black painted, varnished etc.

Specification:

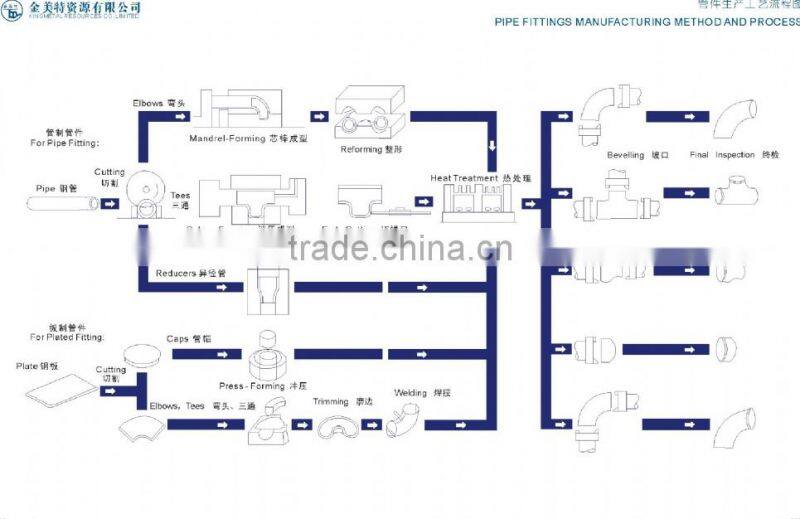

Pipe Fittings Manufacturing Process

Packing:

Production Line

Quality testing

Certification and Application

Our customers

About Us:

KINGMETAL RESOURCES CO., LIMITED

GUANGZHOU KINGMETAL STEEL INDUSTRY CO., LTD.

Our Company is a Professional Manufacturer, and Exporter of Steel Pipe, Pipe Fittings & Flanges, being specialized in Steel Industry for Over 25 Years with Good Business Standing and Reliability.

We offer a comprehensive rang of items in Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel, Hastealloy Steel, Titanium Steel

Malleable Casting Iron, Ductile Iron and Other Special Steel etc., which are for 100% Export.

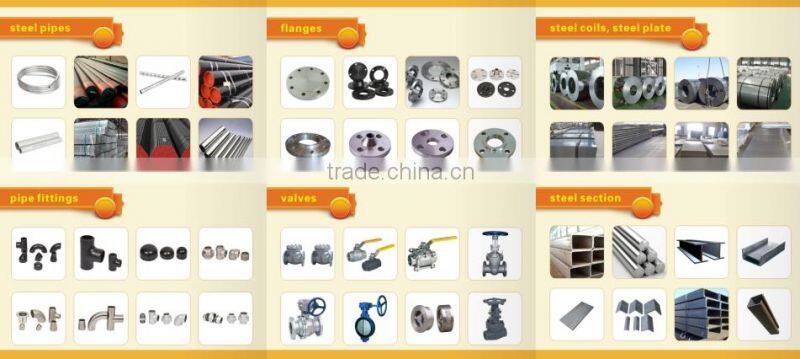

Main Product Range:
