Home > Products > BLDC Motor > Brushless dc motor for 42/44/46 inch ceiling fan motor Energy saving Dc ceiling fan motor 220VAC to DC or 12/24/36VDC
Brushless dc motor for 42/44/46 inch ceiling fan motor Energy saving Dc ceiling fan motor 220VAC to DC or 12/24/36VDC
- 1000 Unit / Units per Month
- Shenzhen
- T/T
- High speed Micro 385 Brush DC Motor for Electric Appliance Tools 3.7V 24V
- DC motor from Haiyan Long Bo factory for Hydraulic equipments
- traction motor GE761,D77/78,GE752,D29
- Maxon motor
- High torque BLDC tattoo motor 2016RB low-start voltage diameter 20mm tattoo motor long lifespan tattoo motor for tattoo gun
- High torque BLDC tattoo motor 2016RB low-start voltage diameter 20mm tattoo motor long lifespan tattoo motor for tattoo gun
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Zhaoli Motor | Model Number: | 65 |
Usage: | Fan, Home Appliance, Other, Fan, Home Appliance, pump assembly | Certification: | CCC, CE, ROHS, UL, VDE, Other, CCC, CE, ROHS, UL, VDE, CUL | Type: | Other, bldc motor |
Construction: | Permanent Magnet | Commutation: | Brushless | Output Power: | 1--50W |
Voltage(V): | 23/24/36VDC |
Product Description
Specifications
1.Save more than 50% energy consumption, longer life2.Positive and negative rotation
3.Stepless speed regulating
Brushless Direct Current Motor
BLDC motor is composed of main body part and circuit control part. The body part concludes permanent magnet rotor and stator made up of silicon steel sheet and copper wire. Compared with brush dc motor, BLDC motor has the advantage of longer life, avoiding the problems of brush dc motor like machine noise, friction sparks and electromagnetic interference through electronic commutating instead of mechanical commutating. This is a type of energy-saved motor. It owns following characteristics:
1) High efficiency:
In general, the efficiency of single-phase AC motor is under 30% , but the efficiency of single-phase DC motor is above 40%.
2) Easy control the speed:
Using PWM to control the speed and obtain linear deviation.
3) Soft start-up ( Lower start-up current):
Decreasing the start-up current to reduce the damage for matching system.
4) High reliability and long life:
Using high tech bearing system to ensure high reliability and long life.
5) Speed feedback and alarm function:
System can easy read real time revolution and give alarm signal when rotor stops.
Series: 65

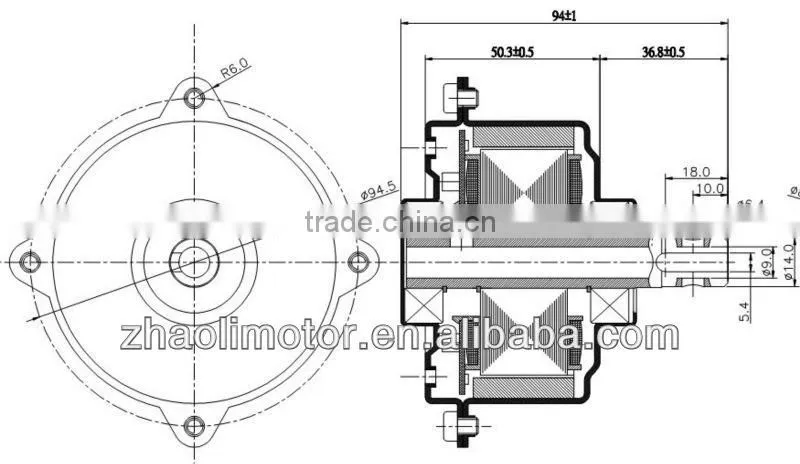

Drawing:
Application:

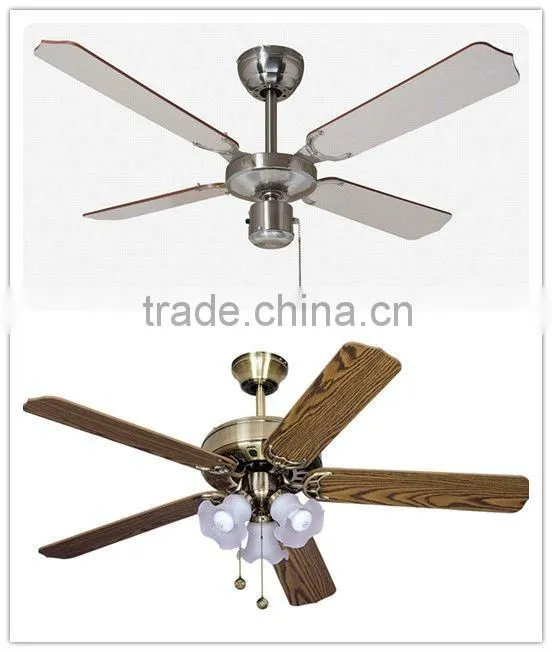

Electric Fan, 42/44/46inch Ceiling fan
Contact Us
- Shenzhen Zhaoli Motor Co., Ltd.
- Contact nameChristine Ma
- Phone86-755-81730550
- Address8 &9 Building, Shapuwei NO.2 Industrial Area, Songgang, Bao an, Shenzhen, CHINA Shenzhen,Guangdong
