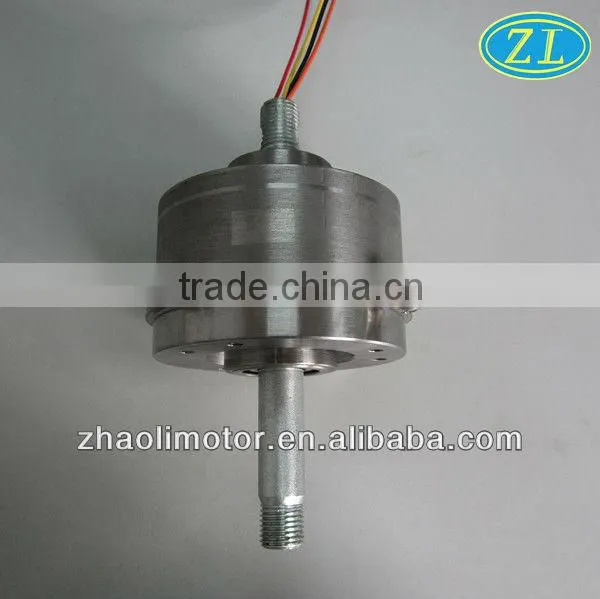

Help Center42/44/46 Inch Ceiling Fan Motor 350RPM <30W Brushless dc Motor Ceiling Fan Motor Low Noise Energy-saving
Related Products
-
Kitchen Hood Motor Brushless dc Motor BLDC Range Hood Motor: 24VDC, PWM ControllerNegotiableMOQ: 1000 Units -
Kitchen Hood Motor Brushless dc Motor BLDC Kitchen Hood Motor: 24VDC, PWM Controller,<100WNegotiableMOQ: 1000 Units
-
12v 24v High Rpm Brushless dc Fan Motor for Air Conditioner MotorUS$ 5 - 10MOQ: 1000 Pieces
-
Small Electric Motor Condenser Fan Motor Brushless DC Motor: 42 Bldc Motor, 24V, 12VNegotiableMOQ: 1000 Units
-
Low Rpm High Torque dc Motor Brushless Motor for 36/40/42 Inch Ceiling Fan: 12/24VDC, 170rpm, 30dB,50000hours LifeNegotiableMOQ: 1000 Units
Specifications
1.Save more than 50% energy consumption, longer life2.Positive and negative rotation
3.Stepless speed regulating
Brushless Direct Current Motor
BLDC motor is composed of main body part and circuit control part. The body part concludes permanent magnet rotor and stator made up of silicon steel sheet and copper wire. Compared with brush dc motor, BLDC motor has the advantage of longer life, avoiding the problems of brush dc motor like machine noise, friction sparks and electromagnetic interference through electronic commutating instead of mechanical commutating. This is a type of energy-saved motor. It owns following characteristics:
1) High efficiency:
In general, the efficiency of single-phase AC motor is under 30% , but the efficiency of single-phase DC motor is above 40%.
2) Easy control the speed:
Using PWM to control the speed and obtain linear deviation.
3) Soft start-up ( Lower start-up current):
Decreasing the start-up current to reduce the damage for matching system.
4) High reliability and long life:
Using high tech bearing system to ensure high reliability and long life.
5) Speed feedback and alarm function:
System can easy read real time revolution and give alarm signal when rotor stops.
Series: 65
Drawing:
Application:
Electric Fan, 42/44/46inch Ceiling fan
