XLDX Semi-auto Double Head Stitcher

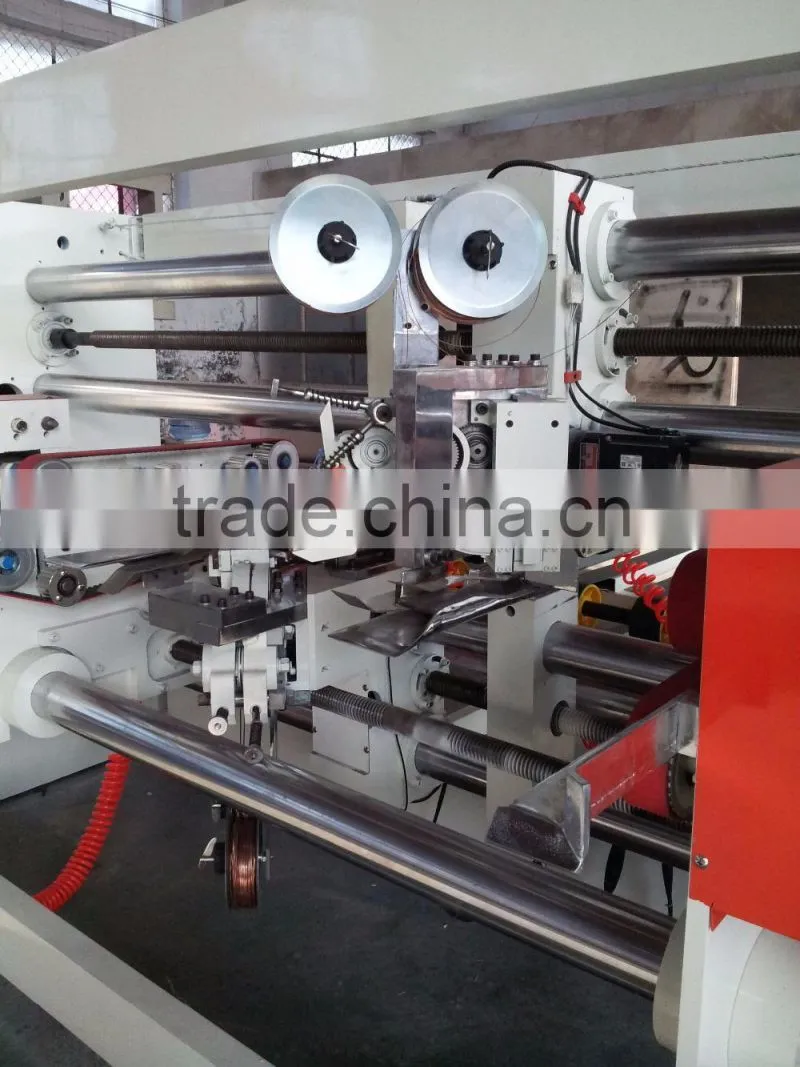

XLDX Semi-auto Double Head Stitcher photo-1

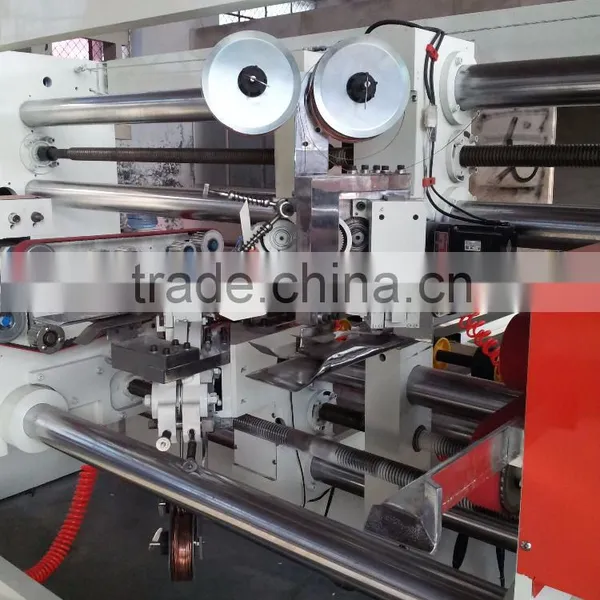

XLDX Semi-auto Double Head Stitcher photo-2

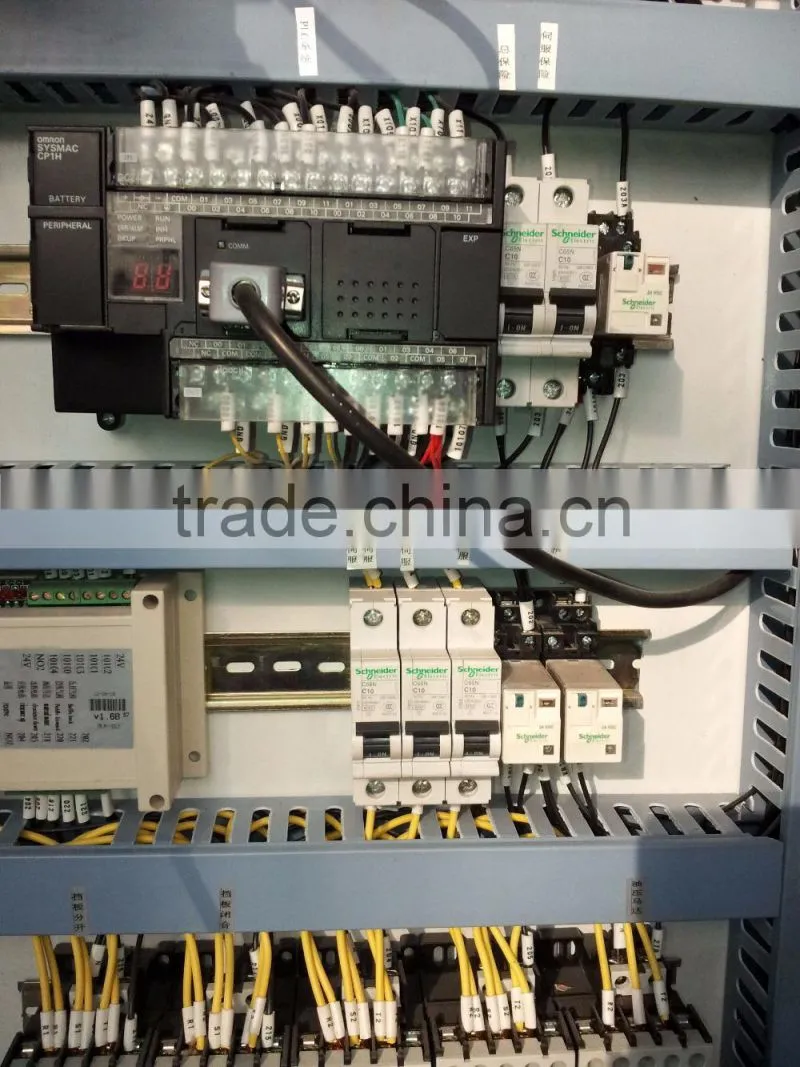

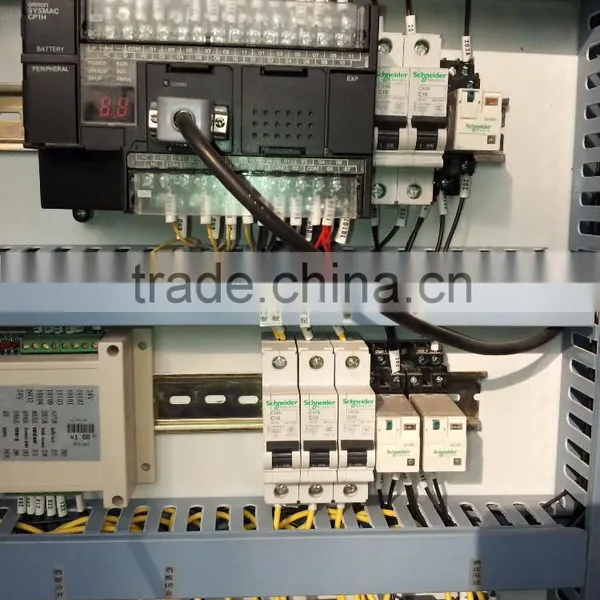

XLDX Semi-auto Double Head Stitcher photo-3
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, STITCHING
Automatic Grade:
Semi-Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, STITCHING
Automatic Grade Semi-Automatic
Place of Origin China
Brand Name AMC
Model Number XLDX
Warranty 12 monthes
After-sales Service Provided Engineers available to service machinery overseas

XLDX Semi-auto Double Head STITCHER

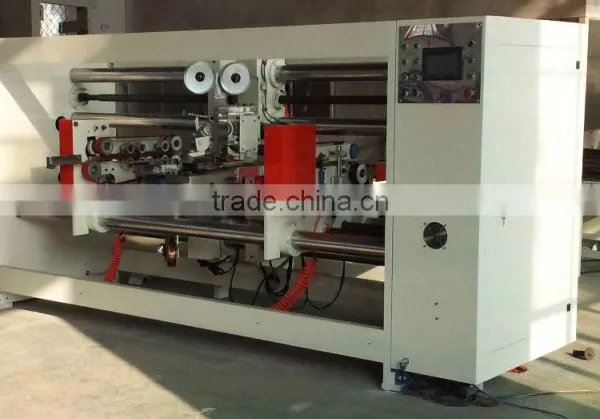

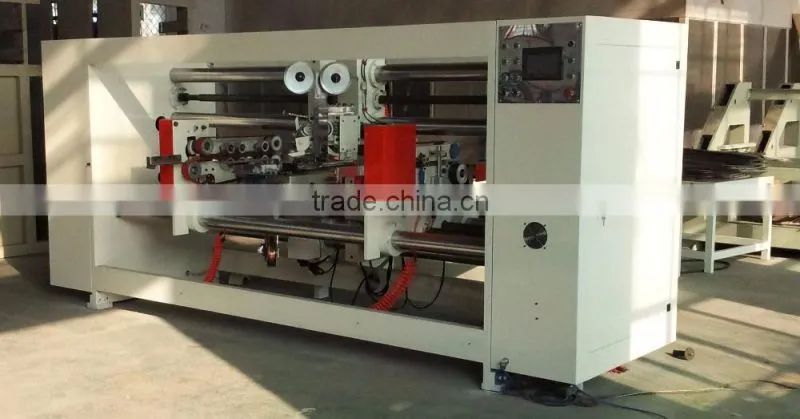

XLDX Semi-auto Double Head Stitcher   XLDX Semi-auto Double Head Stitcher     XLDX Semi-auto Double Head Stitcher







Characteristics:



  1. Our product can be generally applied to the three-layer or five-layer cardboard boxes as well as the uncovered ones with bottom. As for the seven-layer boxes needs to be customized.
  2. Suit for large carton.
  3. Single, double and strengthen nail are available, be finished one time, it can meet different requirements of different clients.
  4. Automatic counter ejector.
  5. Adjust stitching pitch automatically.
  6. Stitching pitch: 30mm-120mm, can be arbitrary regulation.
  7. Machine speed: 500stitches/minute.





XLDX Semi-auto Double Head Stitcher







Technology Parameters:



Model

XLD-2400mm

XLD-2700mm

XLD-3000MM

Max. sheet size(A+B)*2(mm)

4800

5400

6000

Min. sheet size(A+B)*2(mm)

1060

1060

1060

Max.sheet size length(mm)

2250

2550

2850

Min.sheet length(mm)

350

350

350

Max.sheet width(mm)

1200

1350

1500

Min.sheet width(mm)

180

180

180

Min.sheet height(C+D+C) (mm)

400

400

400

Stitching pitch(mm)

30-120

30-120

30-120

No.of stitching

1-99

1-99

1-99

Machine speed(stitch/min)

500

500

500

Power Required(HP)

18

18

18

Machine Dimension(m)

6000x3550x4000

6000x3550x4100

6000x3550x4150

Max.stopper Measurement

600mm(C)

Max.TS width

45mm(E)

Min.Frist stitch Pitch

25mm(D) Uncover
