160 Degree Viewing Angle 12V IP65 High Power 3w Injection Led Module With Lens

160 Degree Viewing Angle 12V IP65 High Power 3w Injection Led Module With Lens photo-1
160 Degree Viewing Angle 12V IP65 High Power 3w Injection Led Module With Lens photo-2
160 Degree Viewing Angle 12V IP65 High Power 3w Injection Led Module With Lens photo-3
US$ 1.9 - 1.9 MOQ: 20000 Pieces
Key Specifications
Get Latest Price
Model Number:
X1-3W
Chip Material:
Other, Epsitar
Emitting Color:
Other, Pure white
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Model Number X1-3W
Chip Material Other, Epsitar
Emitting Color Other, Pure white
Luminous Intensity 2000-2500MCD
Luminous Flux(lm) 210LM
Optical Attenuation(%) 3
Power 3W
Power Dissipation 3W
Color Rendering Index(Ra) 75
Color Temperature 6000-6500K
Operating Temperature(℃) -20, 60
Storage Temperature(℃) -50, 60
Place of Origin Guangdong, China
Brand Name Singsun
Certification CE

160 degree viewing angle 12V IP65 high power 3w injection led module with lens

Product Specifications:


LED Type

3535 LED

LED BRAND

GENESIS

Viewing Angle

15*45°

Luminous Flux(lm)

210 LM

LED Qty

1 pcs

 Life Span

80,000 H

Working Voltage

DC12V

Consumption

3 W

Driving Method

constant voltage

Stand Length In Serial Connection

15pcs

Maximum Length In Serial Connection

≤15pcs

Shell

Milk white ABS

Dimension

45*35 mm

Available Color

W/WW/CW

Certification

CE&ROHS

Working Temperature

 -20℃ —— +60℃

Store Temperature

 -50℃ —— +60℃

IP Degree

IP65

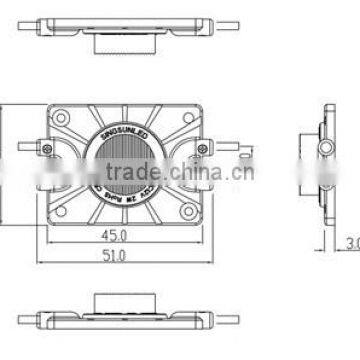

Dimension Diagram(mm):















160 degree viewing angle 12V IP65 high power 3w injection led module with lens

Connection Diagram:



Our Factory:



160 degree viewing angle 12V IP65 high power 3w injection led module with lens160 degree viewing angle 12V IP65 high power 3w injection led module with lens160 degree viewing angle 12V IP65 high power 3w injection led module with lens



Package:



15 pcs per string, 2 string per bag, 600 pcs per carton box. Carton size: 50*35*31.5 cm. 21kg/carton.





Application:







1. Side lighting for double side light box.







CE & RoHS Ceritifications:







Warmly welcome to send us inquiry or get free samples to check



our quality and service!!!
