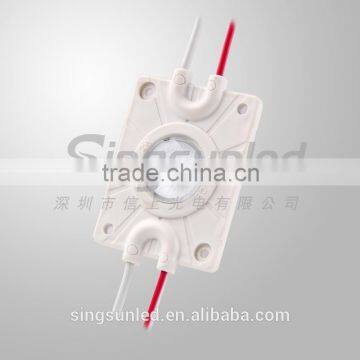

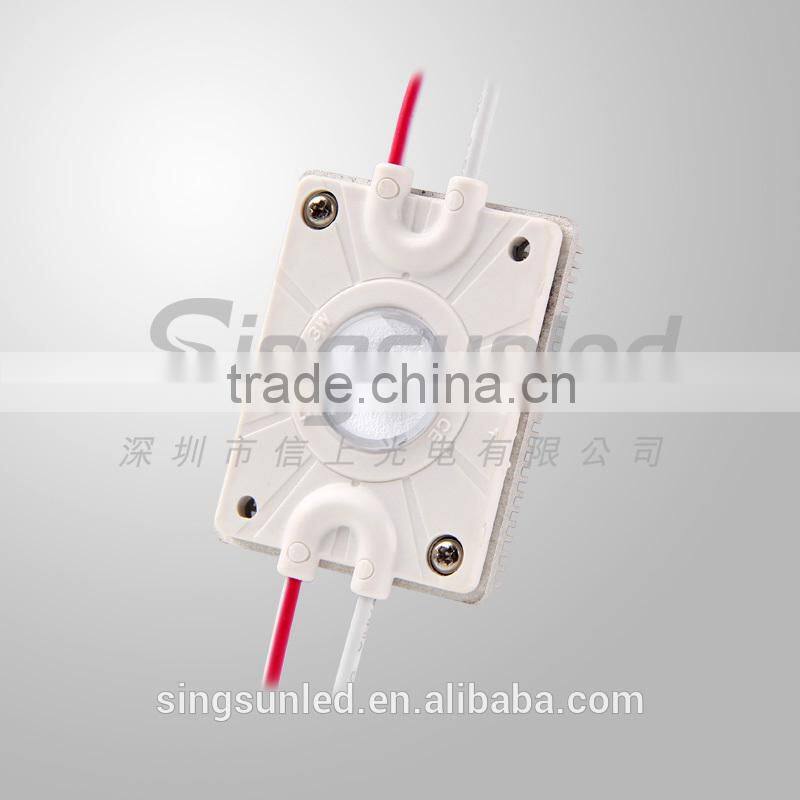

Help CenterDC12V High Power Backlighting for Light Box 3watt Injection 3535 LED Module
Related Products
-
Light Box Led Module 3535 Injection Led Module High Power Led ModuleUS$ 1.8 - 1.9MOQ: 500 Pieces -
DC12V PVC Injection Waterproof 3535 LED High Power Module for Lighting BoxUS$ 1.4 - 1.5MOQ: 500 Pieces
-
12v Wateproof Light Box Led Module 3 Watts High Power 3535 Injection Led Module With LensUS$ 1.8 - 1.9MOQ: 500 Pieces
-
Top Quality Good Price 3 Chips 5630 Samsung Led ModuleUS$ 0.37 - 0.45MOQ: 1000 Pieces
-
CE Rohs Outdoor Waterproof 1 Chip SMD3535 3W SMD 12V High Power Led ModuleUS$ 1.9 - 1.9MOQ: 20000 Pieces
Features:
- Ø With series-parallel connection circuit for led pcb, each string has 15pcs and each module can be cut individually;
- Ø Take 3535 LED as light source, no light spot, low decay and good consistency;
- Ø The LED passed America LM80 standard, 5 years quality warranty
- Ø ABS Injection outer cover, beautiful and unique appearance, good heat dissipation;
- Ø Low consumption, high brightness, free maintenance, long life span
- Ø Input voltage: DC12V, reliable and safe
- Ø Protect level: IP65, waterproof.
LED Type |
3535 LED |
LED BRAND |
GENESIS |
Viewing Angle |
160° |
Luminous Flux(lm) |
210 LM |
LED Qty |
1 pcs |
Life Span |
80,000 H |
Working Voltage |
DC12V |
Consumption |
3 W |
Driving Method |
constant voltage |
Stand Length In Serial Connection |
15pcs |
Maximum Length In Serial Connection |
≤15pcs |
Shell |
Milk white ABS |
Dimension |
45*35 mm |
Available Color |
W/WW/CW |
Certification |
CE&ROHS |
Working Temperature |
-20℃ —— +60℃ |
Store Temperature |
-50℃ —— +60℃ |
IP Degree |
IP65 |
Every 15 pcs per a string, every 2 string in an anti-static bag, 600 pcs per a carton box. Carton size: 50*35*31.5 cm.
Dimension Diagram(mm):
Applications:
1. Backlight for single side lighting box.
CE & RoHS Certifications:
Exhibition Pictures:
Russian REKLAMA 2014 (Time: 23-36, September, 2014. Booth No: FC144)
2014 Hong Kong International Lighting Fair Autumn Edition ( Time: 27-30 October, 2014. Booth No: CR-A32)
2014 GZ & Shang Hai International Lighting EXPO
