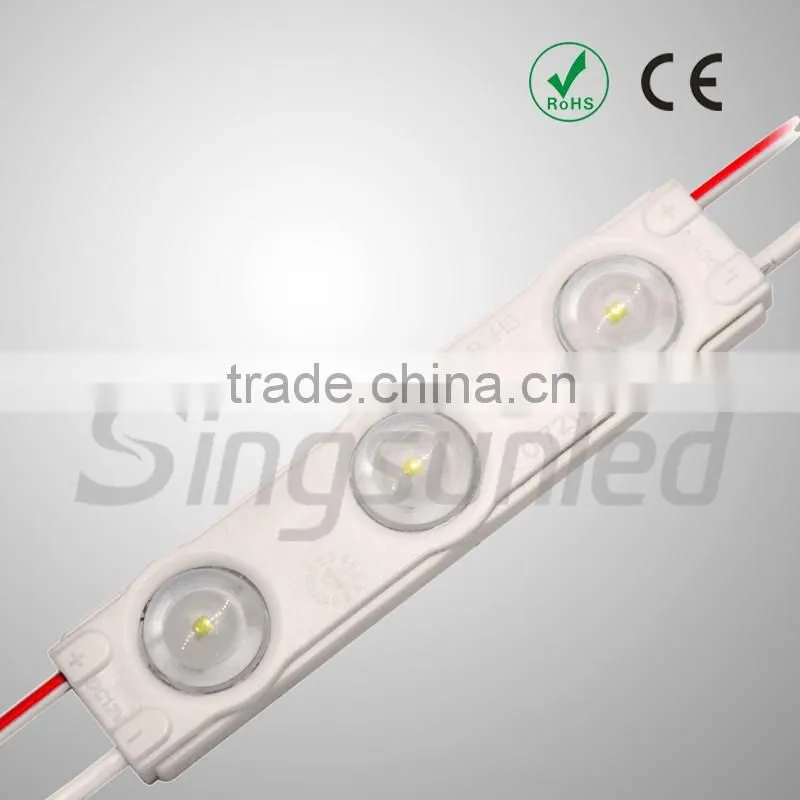

CE RoHS approved SMD5630 led module 12V 1.44W led module with lens
LED Type |
5630 SMD LED |
LED BRAND |
Epistar chip/SAMSUNG chip |
Viewing Angle |
160° |
Luminous Flux(lm) |
120-135 LM |
LED Qty |
3 pcs |
Life Span |
50,000 H |
Working Voltage |
DC12V |
Consumption |
1.44 W |
Driving Method |
constant Voltage |
Stand Length In Serial Connection |
20pcs |
Maximum Length In Serial Connection |
≤20pcs |
Shell |
white ABS |
Dimension |
64*15*6 mm |
Available Color |
W/WW/CW |
Certification |
CE&ROHS |
Working Temperature |
-20℃ —— +60℃ |
Store Temperature |
-50℃ —— +60℃ |
IP Degree |
IP67 |
Product Features:
Wide applicability, easy to install and maintain
Extremely luminous, with wide viewing angle
Energy saving and environmental friendly
Operating low voltage DC 12V for human safety
Various colors are available
Very bright and low power consumption
Long lifespan: More than 50, 000 hours
Application:
This product is applicable fo 3-20cm glowing character, advertisement board, light box or local lighting.
Every 20 pcs per a string, every 5 string in an anti-static bag, 3500 pcs per a carton box.
Carton size: 50*35*31.5 cm.
Net Weight: 7 g/pc; 140 g/string; 24kg/carton
Shipping Details:
1. For all your inquiries about us or our products, we will reply you in detail within 24 hours.
2. We own well-trained and passionate sales & after-sale services who can speak fluent English language.
3. We offer OEM services. Like print your own logo on product or customize the retail box packing ,etc.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
Shenzhen Singsun LED Co., Ltd was founded in 2009, specialized in development & production of LED lighting products.We are engaged in research and development, production, marketing and service. Singsun LED has been one of the most excellent manufacturers in the LED field in Shenzhen, China.
We have dedicated in providing high quality advertisment lighting,perfect commercial lighting solution, We have owner design term and advance production equipments. Main products include LED module,LED strip,LED power supply, Rigid LED strip,LED controller,LED connector, etc, which are widely used in signage lighting, advertisting light decoration, advertisting liht box and commercial lighting area.
Factory Show:
CE & RoHS Certifications:
Q1:Can I have samples to test ?
A:Yes, we are pleased to supply samples to test and check our quality.
Q2:Do you have any MOQ limited for order ?
A:Our MOQ for order is 5000 pieces.
Q3:What's the delivery time ?
A:Samples ;3-5 working days Mass production ;7-10 working day
Q4:What't the payment you accept ?
A: t/t(bank to bank payment)/paypal/western union
Q5:Do you offer guarantee for your products ?
A:Yes ,we offer 3-5 years guarantee fou our products ,during this period,
any quality problem ,we can replace new for you.
Q6:How do you ship the goods and how long does it take ?
A:DHL/UPS/FEDEX/TNT;3-5days
by air flight ;5-7days
by sea ;15-30days
