Factory Wholesale DC12V 5630 LED Module White Waterproof IP65

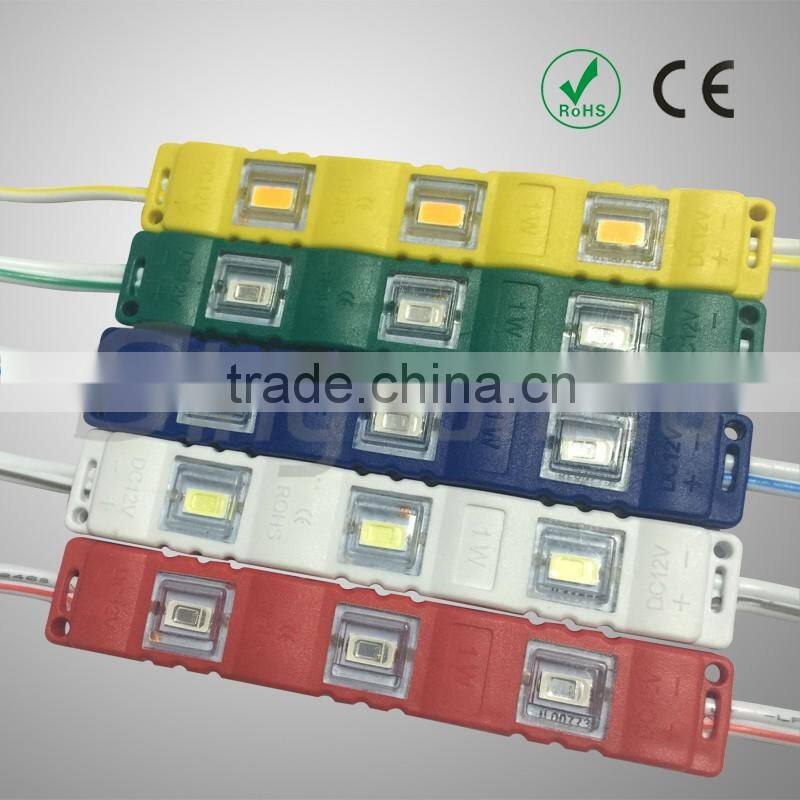

Factory Wholesale DC12V 5630 LED Module White Waterproof IP65 photo-1

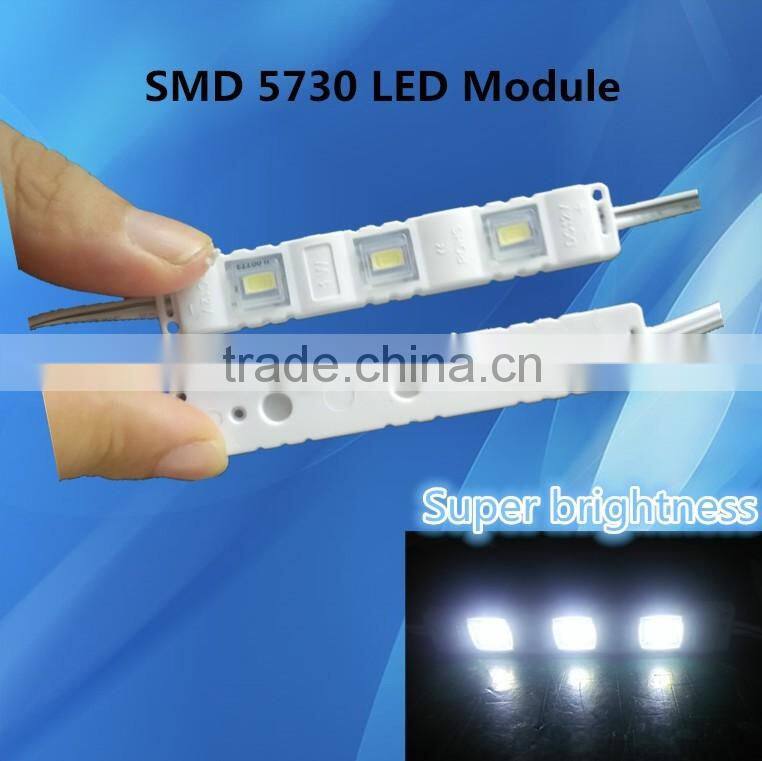

Factory Wholesale DC12V 5630 LED Module White Waterproof IP65 photo-2
Factory Wholesale DC12V 5630 LED Module White Waterproof IP65 photo-3
Factory Wholesale DC12V 5630 LED Module White Waterproof IP65 photo-4
Factory Wholesale DC12V 5630 LED Module White Waterproof IP65 photo-5
US$ 0.35 - 0.35 MOQ: 20000 Pieces
Key Specifications
Get Latest Price
Model Number:
STF-N3-5630
Chip Material:
Other, Epistar
Emitting Color:
Cool White
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Model Number STF-N3-5630
Chip Material Other, Epistar
Emitting Color Cool White
Luminous Intensity 2000-2500MCD
Luminous Flux(lm) 90-100lm
Optical Attenuation(%) 2
Power Other, 1w
Power Dissipation 1w
Color Rendering Index(Ra) 85
Color Temperature 10000k
Operating Temperature(℃) -20, 75
Storage Temperature(℃) -20, 60
Place of Origin Guangdong, China
Brand Name singsun
Certification CE

Factory Wholesale DC12V 5630 LED Module White Waterproof IP65

Specifications:



Model No. STF-N3-5630
Light Source 5630 SMD LED 3 pieces (90 ~ 100 Lm)
Input voltage DC 12V
Power consumption 1.44W
Current  0.12A (constant current)
Emitting color White 6000 ~ 6500 K
CRI Ra > 85
Luminous flux 120 ~ 135 Lm for one module
Beaming angle 160 degree
IP rank IP65
Lifespan over 50,000 hours
Warranty 3 years
Max connection 30 pieces in one line

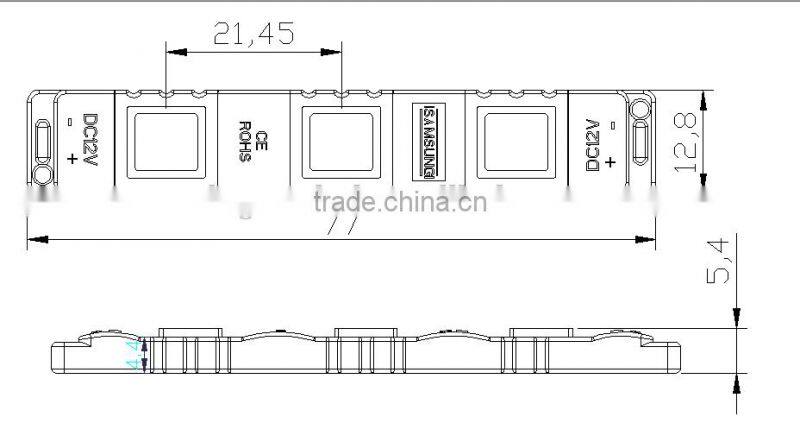

Dimension 66.8*15.8*7 mm (also available 82*15.8*7mm)



Factory Wholesale DC12V 5630 LED Module White Waterproof IP65



Factory Wholesale DC12V 5630 LED Module White Waterproof IP65





Factory Wholesale DC12V 5630 LED Module White Waterproof IP65



Factory Wholesale DC12V 5630 LED Module White Waterproof IP65



Features:


 Wide applicability, easy to install and maintain
 Extremely luminous, with wide viewing angle
 Energy saving and environmental friendly
 Operating low voltage DC 12V for human safety
 Various colors are available
 Very bright and low power consumption
 Long lifespan: More than 50, 000 hours

 Factory Wholesale DC12V 5630 LED Module White Waterproof IP65



Factory Wholesale DC12V 5630 LED Module White Waterproof IP65



Factory Wholesale DC12V 5630 LED Module White Waterproof IP65





Factory Wholesale DC12V 5630 LED Module White Waterproof IP65

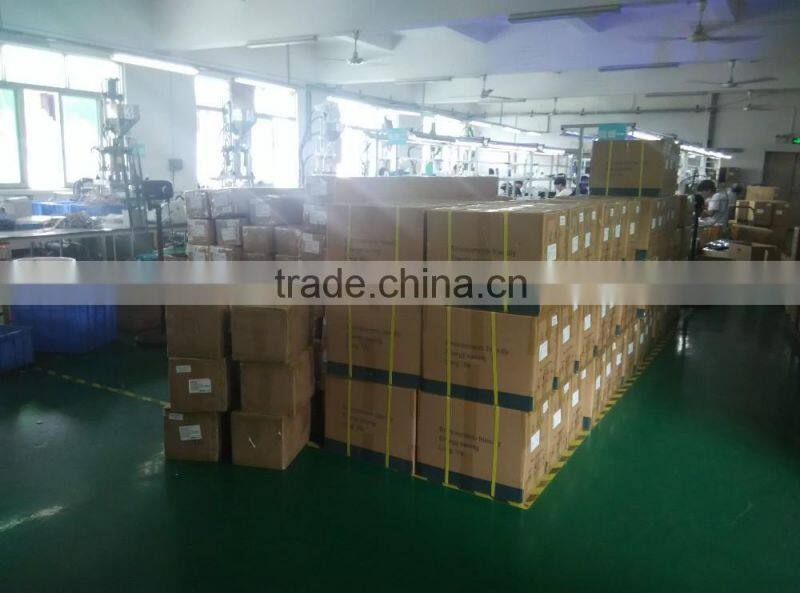

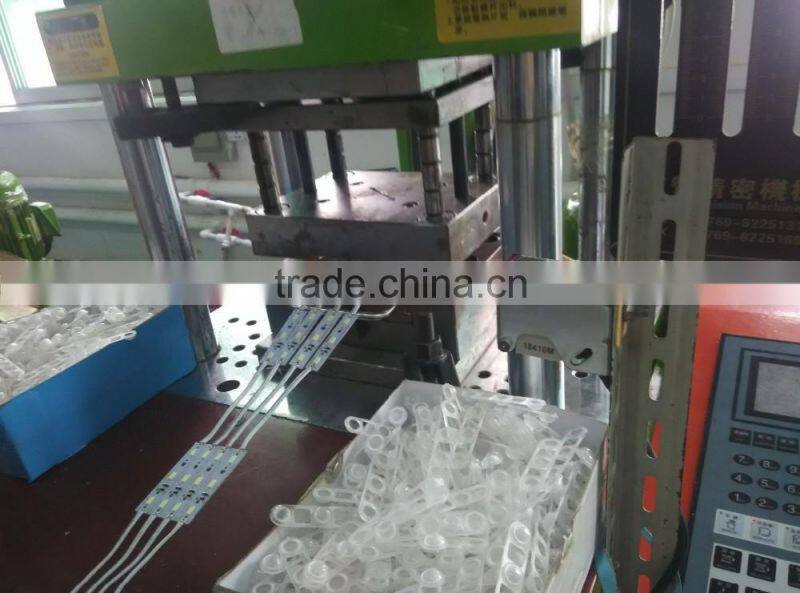

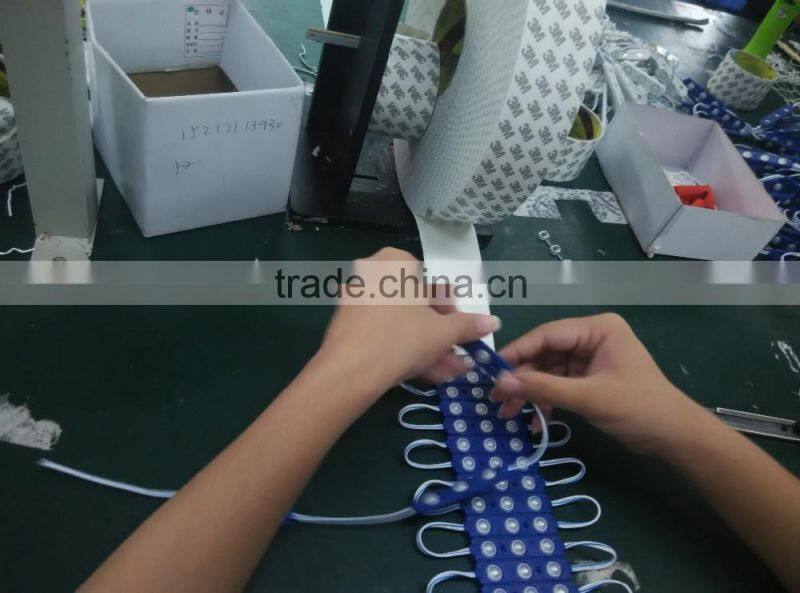

Our Factory:

Factory Wholesale DC12V 5630 LED Module White Waterproof IP65Factory Wholesale DC12V 5630 LED Module White Waterproof IP65

Factory Wholesale DC12V 5630 LED Module White Waterproof IP65



Application:


 Idea for in cabinet, furniture, landscape, architectural lighting
 Channel-letter backlights, signboard, sign and decoration, and more high luminance efficiency and low power consumption
 For cable and fixing hole
 Channel letters backlighting
 Advertisement signs acklighting
 Advertisement light boxes backlighting

CE and RoHs compliant



Factory Wholesale DC12V 5630 LED Module White Waterproof IP65Factory Wholesale DC12V 5630 LED Module White Waterproof IP65

Our certification:





Factory Wholesale DC12V 5630 LED Module White Waterproof IP65



Factory Wholesale DC12V 5630 LED Module White Waterproof IP65





Warmly welcome to send us inquiry or get free samples to check



our quality and service!!!
