Waterproof IP66 2 Chips Led Module SMD5050 White Led Module With Lens

Waterproof IP66 2 Chips Led Module SMD5050 White Led Module With Lens thumbnail-1
Waterproof IP66 2 Chips Led Module SMD5050 White Led Module With Lens thumbnail-2
Waterproof IP66 2 Chips Led Module SMD5050 White Led Module With Lens thumbnail-3
Waterproof IP66 2 Chips Led Module SMD5050 White Led Module With Lens photo-1
Waterproof IP66 2 Chips Led Module SMD5050 White Led Module With Lens photo-2
Waterproof IP66 2 Chips Led Module SMD5050 White Led Module With Lens photo-3
US$ 0.23 - 0.23 MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Model Number:
STF-Z2X
Chip Material:
Other, Epistar
Emitting Color:
Natural White
Contact Supplier Request Quote Chat Now
Shenzhen Singsunled Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number STF-Z2X
Chip Material Other, Epistar
Emitting Color Natural White
Luminous Intensity 2000-2500MCD
Luminous Flux(lm) 60-66lm
Optical Attenuation(%) 2
Power Other, 0.48W
Power Dissipation 0.48W
Color Rendering Index(Ra) 85
Color Temperature 6000-6500K
Operating Temperature(℃) -50, 60
Storage Temperature(℃) -20, 60
Place of Origin Guangdong, China
Brand Name Singsun
Certification CE

Waterproof IP66 2 chips led module SMD5050 white led module with lens



Dimension

44x15x6.8 mm

LED No

2 pcs 5050 SMD LED

Voltage

Input 12VDC

View angle

155 degree

Current

40mA

40mA

40mA

40mA

40mA

Watts

0.48

0.48

0.48

0.48

0.48

Lumen

40-44

8

25

10.5

13

Color

White

Blue

Green

Yellow

Red

Drive method

Contant Current Drive

Max connection

50 pcs per a Chain

Working temp

-20~+60℃

IP rate

IP65

Cover

Milky white ABS

Warranty

36 months

Certificate

CE:BTRE0708181359 / RoHS: BTRS0708310889

Part No

STF-Z2W

STF-Z2B

STF-Z2G

STF-Z2Y

STF-Z2R

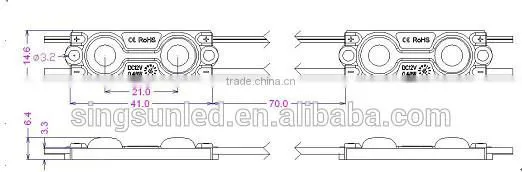

Dimension Diagram(mm):



Waterproof IP66 2 chips led module SMD5050 white led module with lens

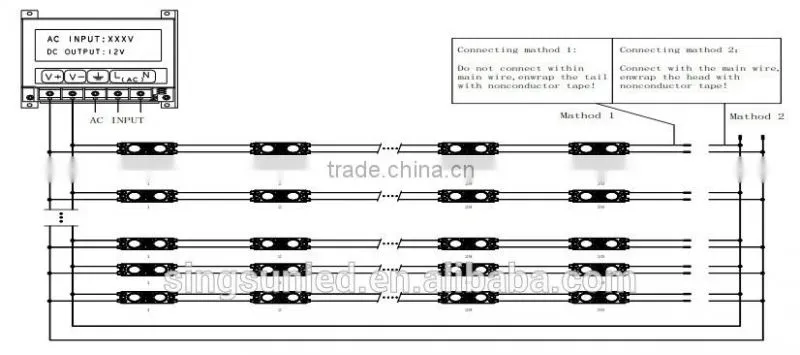

Connection Diagram:

Waterproof IP66 2 chips led module SMD5050 white led module with lens

Features:



95% transmittance lens, Wider view angle 155°.

Constant Current Driving method,50 pcs per Chain.

Suitable for Super Thin channel letters and light boxes, No Spot, No Shadow.

Injection molding process,IP Rate: IP 65, waterproof.

Exposed Aluminum pcb design, perfect heat dissipation.

Adopt Top 5050 SMD LED, Original Epistar chip from Taiwan.

Long life span, 50,000 hrs.





Waterproof IP66 2 chips led module SMD5050 white led module with lens



Packaging & Shipping





Every 50 pcs per a string, every 2 string in an anti-static bag, 3000 pcs per a carton box.

Carton size: 50*35*31.5 cm.

Net Weight: 5.6 g/pc;  560 g/bag;  17.5kg/carton.

Waterproof IP66 2 chips led module SMD5050 white led module with lens



Applications:



Idea for in cabinet, furniture, landscape, architectural lighting
Channel-letter backlights, signboard, sign and decoration, and more high luminance efficiency and low power consumption
For cable and fixing hole/Channel letters backlighting/Advertisement signs acklighting/Advertisement light boxes backlighting





Our Services



1. For all your inquiries about us or our products, we will reply you in detail within 24 hours.

2. We own well-trained and passionate sales & after-sale services who can speak fluent English language.

3. We offer OEM services. Like print your own logo on product or customize the retail box packing ,etc.

4. We have very experienced R&D engineers and we have strong ability to do ODM projects.





Company Information



Shenzhen Singsun LED Co., Ltd, was founded in 2009, specialized in development & production of LED lighting products.We are engaged in research and development, production, marketing and service. Singsun LED has been one of the most excellent manufacturers in the LED field in Shenzhen, China.

     We have dedicated in providing high quality advertisment lighting,perfect commercial lighting solution, We have owner design term and advance production equipments. Main products include LED module,LED strip,LED power supply, Rigid LED strip,LED controller,LED connector, etc, which are widely used in signage lighting, advertisting light decoration, advertisting liht box and commercial lighting area.

Waterproof IP66 2 chips led module SMD5050 white led module with lens



 CE and ROHS certification:





FAQ



Q1: Can I have samples to test?
A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available. Please note, free samples within 10pcs. and buyer pay for shipping cost.
Q2: Do you have any MOQ limited?
A: Our MOQ is 1000pcs.
Q3: What’s the lead time?
A: Sample :1-5days. Mass production: 7-10days.
Q4:How do you ship the goods and how long does it take?
A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 3-5days to arrive.By air,by sea are also acceptable.
Q5: Do you offer guarantee for your products?
A: Yes, we offer 3-5 years guarantee for the products.
