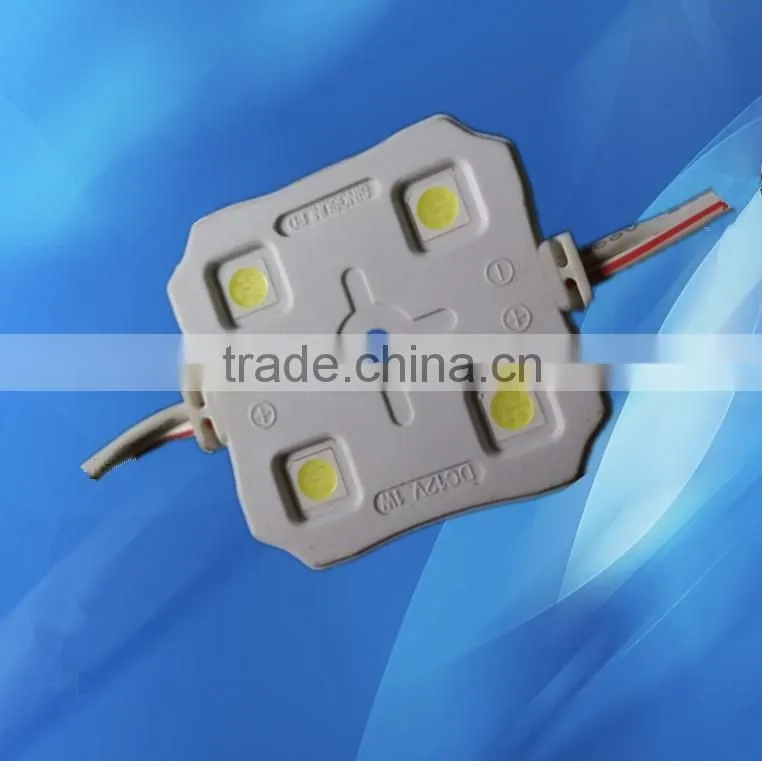

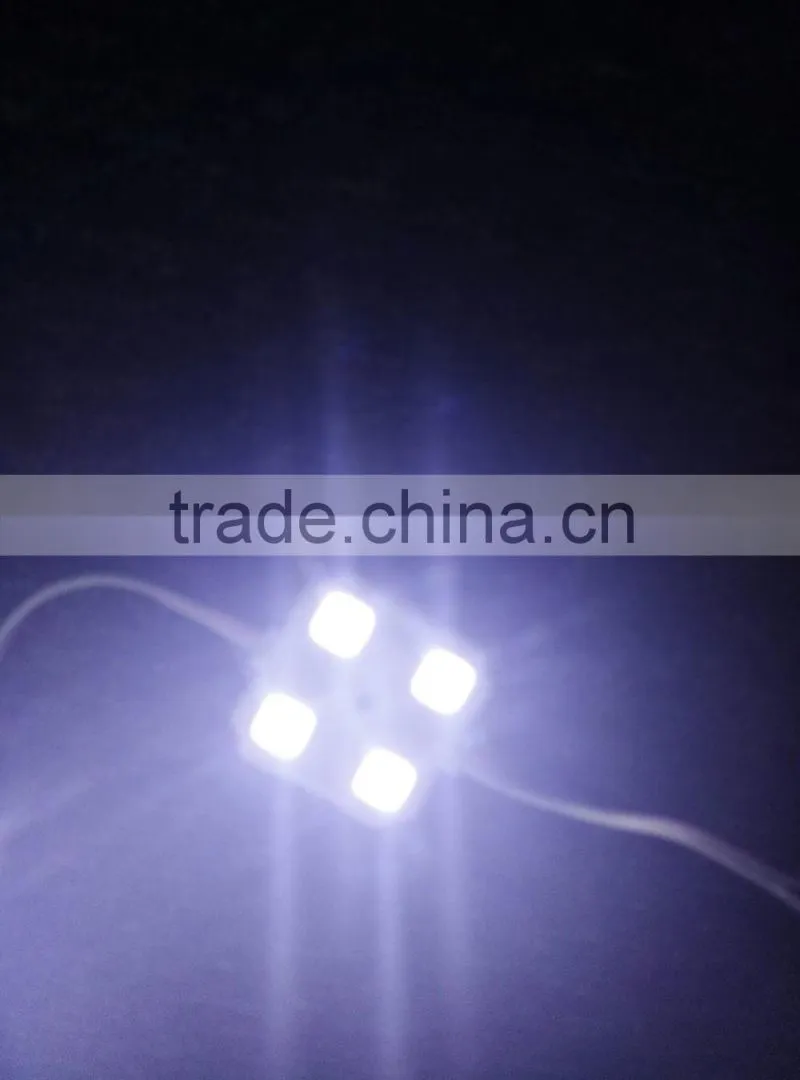

DC 12V 1W SMD 5050 injection led module 80lm 4 chips led module

Name: DC 12V 1W SMD 5050 injection led module 80lm 4 chips led module
Brand: Singsun
Price: USD $0.28 - 0.28 / Piece

FOB Price

USD $0.28 - $0.28 / Piece

10000 Pieces(Min.Order)

Supply Ability 2000000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Model Number:	SZ-35354X-50	Chip Material:	Other, Epistar	Emitting Color:	Other, WW PW CW
Luminous Intensity:	2000-2500MCD	Luminous Flux(lm):	180LM	Optical Attenuation(%):	2
Power:	Other, 1W	Power Dissipation:	1W	Color Rendering Index(Ra):	85
Color Temperature:	2700-12000K	Operating Temperature(℃):	-50, 60	Storage Temperature(℃):	-20, 60
Place of Origin:	Guangdong, China	Brand Name:	Singsun	Certification:	CE

Product Description

DC 12V 1W SMD 5050 injection led module 80lm 4 chips led module

LED Type	5050 SMD LED
LED BRAND	Epistar chip from Taiwan
Viewing Angle	≥120°
Luminous Flux(lm)	80 LM
LED Qty	4 pcs
Life Span	50,000 H
Working Voltage	DC12V
Consumption	1 W
Driving Method	constant voltage
Stand Length In Serial Connection	20pcs
Maximum Length In Serial Connection	≤20pcs
Shell	Milk white PVC
Dimension	37375.5 mm
Available Color	W/WW/CW/R/G/B/Y
Certification	CE&ROHS
Working Temperature	-20℃ —— +60℃
Store Temperature	-50℃ —— +60℃
IP Degree	IP65

Dimension Diagram(mm):

Connection Diagram:

Features:

1. Adopt TOP 5050 SMD LED, no light spot, with a low lumen recession and good consistency.

2. With a low power consumption and high lumen value, a long life-span, maintenance-free.

3. With a plastic injection technique for outer cover, this unique structure grants a better cooling effect.

4. IP Rate: IP65, waterproof.

5. DC 12V low voltage input, reliable and safe.

6. Adopt series-parallel connection circuit, 20pcs for 1 string, each module could be singled out.

Applications:

1. Backlight of giant signage ,channel letter and lighting box.

2. Marine signal and task lighting.

3. Architectural outdoor lights.

Packaging & Shipping

Every 20 pcs per a string, every 4 string in an anti-static bag, 2000 pcs per a carton box. Carton size: 50*35*31.5 cm.

Net Weight: 12 g/pc; 240 g/string; 25kg/carton.

Our Services

1. For all your inquiries about us or our products, we will reply you in detail within 24 hours.
2. We own well-trained and passionate sales & after-sale services who can speak fluent English language.
3. We offer OEM services. Like print your own logo on product or customize the retail box packing ,etc.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.

Company Information

Shenzhen Singsun LED Co., Ltd, was founded in 2009, specialized in development & production of LED lighting products.We are engaged in research and development, production, marketing and service. Singsun LED has been one of the most excellent manufacturers in the LED field in Shenzhen, China.
We have dedicated in providing high quality advertisment lighting,perfect commercial lighting solution, We have owner design term and advance production equipments. Main products include LED module,LED strip,LED power supply, Rigid LED strip,LED controller,LED connector, etc, which are widely used in signage lighting, advertisting light decoration, advertisting liht box and commercial lighting area.

CE & RoHS Certifications:

Exhibition Pictures:

Russian REKLAMA 2014 (Time: 23-36, September, 2014. Booth No: FC144)

2014 Hong Kong International Lighting Fair Autumn Edition ( Time: 27-30 October, 2014. Booth No: CR-A32)

2014 GZ& Shanghai International Lighting EXPO

FAQ

Q1: Can I have samples to test?
A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available. Please note, free samples within 10pcs. and buyer pay for shipping cost.
Q2: Do you have any MOQ limited?
A: Our MOQ is 5000pcs.
Q3: What’s the lead time?
A: Sample :1-5days. Mass production: 7-10days.
Q4:How do you ship the goods and how long does it take?
A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 3-5days to arrive.By air,by sea are also acceptable.
Q5: Do you offer guarantee for your products?
A: Yes, we offer 3-5 years guarantee for the products.
Q6: Do you accept drop shipping
A: Yes, it is available.
Q7: What's the payment method you accept?
A: Singsun accept below two different payments.
1. T/T(Bank to bank payment)
2. Western Union
