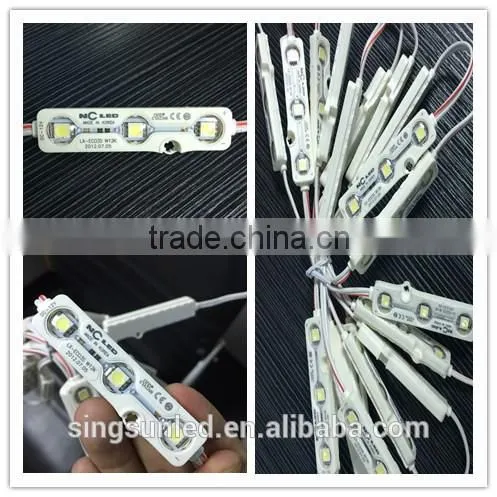

12v 0.72watt IP68 Waterproof 3 Chips 5050 Led Module Light

Name: 12v 0.72watt IP68 Waterproof 3 Chips 5050 Led Module Light
Brand: singsunled
SKU: 124116155
Availability: InStock

US$ 0.38 - 0.43 MOQ: 1000 Pieces

Key Specifications

Model Number:

STF-K3

Chip Material:

InGaN

Emitting Color:

Other, warm white/nature white/cool white/R/G/B/Y

Shenzhen Singsunled Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Yantian port

Delivery Detail:

Delivery time depends on order quantity.

Model Number STF-K3

Chip Material InGaN

Emitting Color Other, warm white/nature white/cool white/R/G/B/Y

Luminous Flux(lm) 60-66lumen

Optical Attenuation(%) 3%

Power Other, 0.72watt

Power Dissipation 0.72

Color Rendering Index(Ra) 75

Color Temperature 2700-12000k

Operating Temperature(℃) -20, 60

Storage Temperature(℃) -50, 60

Place of Origin Guangdong, China

Brand Name singsunled

Certification CE

12v 0.72watt IP68 waterproof 3 chips 5050 led module light.

Features:

1. Adopt TOP 5050 SMD LED, no light spot, with a low lumen recession and good consistency.

2. With a low power consumption and high lumen value, 20-22LM/led, a long life-span, maintenance-free.

3. With a plastic injection technique for outer cover, this unique structure grants a better cooling effect. UL 94V0 ABS.

4. IP Rate: IP68, waterproof.

5. DC 12V low voltage input , reliable and safe.

6. Adopt series-parallel connection circuit, 20/50pcs per string, each module could be singled out.

7. Viewing angle: 120° degree.

8. Three years warranty.

Product Specifications:

LED Type	5050 SMD LED
LED BRAND	Epistar chip from Taiwan
Viewing Angle	120°
Luminous Flux(lm)	60-66 LM
LED Qty	3 pcs
Life Span	50,000 H
Working Voltage	DC12V
Consumption	0.72 W
Driving Method	CV
Stand Length In Serial Connection	20pcs/50pcs
Maximum Length In Serial Connection	≤50pcs/≤20pcs
Shell	white ABS
Dimension	66157.5 mm
Available Color	W/WW/CWR/G/B/Y
Certification	CE&ROHS
Working Temperature	-20℃ —— +60℃
Store Temperature	-50℃ —— +60℃
IP Degree	IP68
