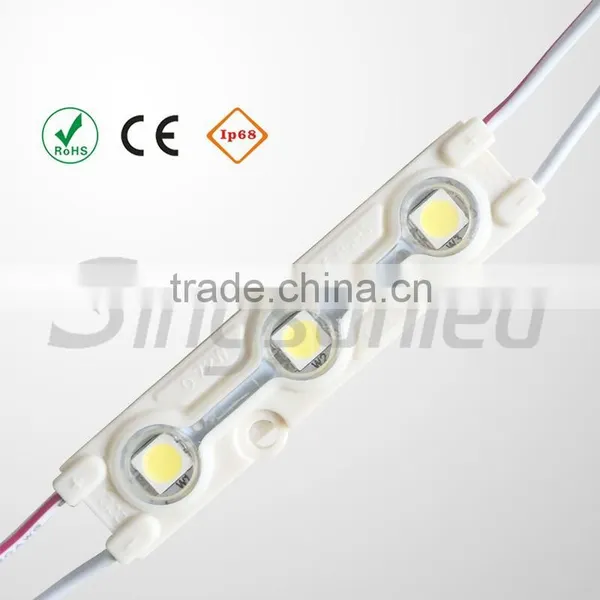

3 chips injection molding led pcb module ip68 50pcs per line
Features:
1. Adopt TOP 5050 SMD LED, no light spot, with a low lumen recession and good consistency.
2. With a low power consumption and high lumen value, 20-22LM/led, a long life-span, maintenance-free.
3. With a plastic injection technique for outer cover, this unique structure grants a better cooling effect. UL 94V0 ABS.
4. IP Rate: IP68, waterproof.
5. DC 12V low voltage input , reliable and safe.
6. Adopt series-parallel connection circuit, 20pcs/50pcs per string, each module could be singled out.
7. Viewing angle: 120° degree.
8. Five years warranty.
Specification:
LED Type | 5050 SMD LED |
LED BRAND | Epistar chip from Taiwan |
Viewing Angle | 120° |
Luminous Flux(lm) | 60-66 LM |
LED Qty | 3 pcs |
Life Span | 50,000 H |
Working Voltage | DC12V |
Consumption | 0.72 W |
Driving Method | CV |
Stand Length In Serial Connection | 20pcs/50pcs |
Maximum Length In Serial Connection | ≤50pcs/≤20pcs |
Shell | white ABS |
Dimension | 66*15*7.5 mm |
Available Color | W/WW/CW |
Certification | CE&ROHS |
Working Temperature | -20℃ —— +60℃ |
Store Temperature | -50℃ —— +60℃ |
IP Degree | IP68 |
Production overview:

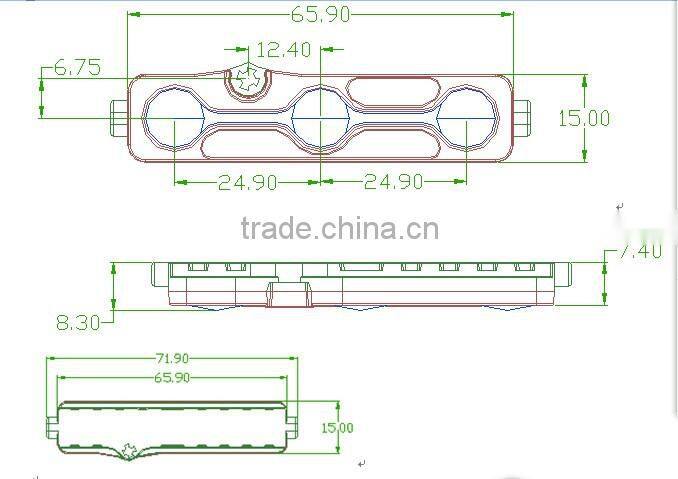

Dimension Diagram:
Connection Diagram:

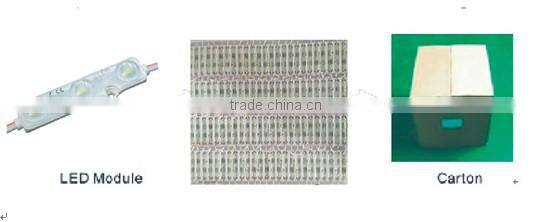

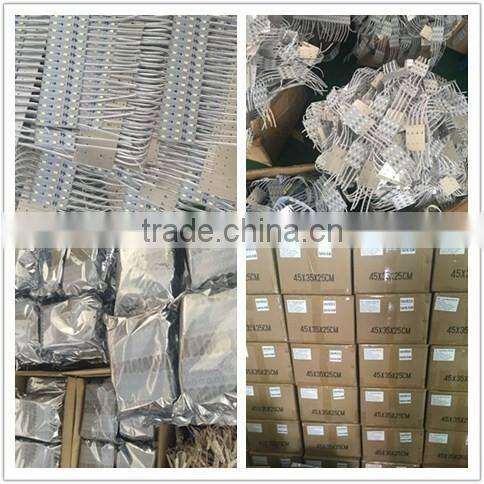

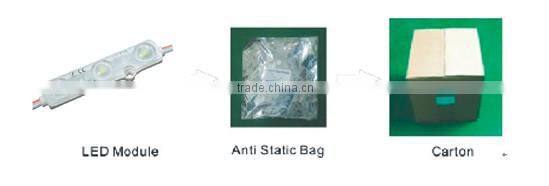

Package:
Application:
1. Backlight of giant signage ,channel letter and lighting box.
2. Marine signal and task lighting.
3. Architectural outdoor lights.
Certificates:
