12V Smd 5050 Samsung Plastic Led Sign Module for Outdoor Billboard

12V Smd 5050 Samsung Plastic Led Sign Module for Outdoor Billboard photo-1
12V Smd 5050 Samsung Plastic Led Sign Module for Outdoor Billboard photo-2

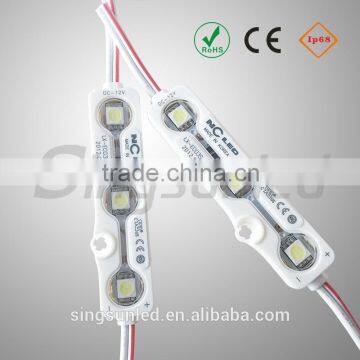

12V Smd 5050 Samsung Plastic Led Sign Module for Outdoor Billboard photo-3
12V Smd 5050 Samsung Plastic Led Sign Module for Outdoor Billboard photo-4
12V Smd 5050 Samsung Plastic Led Sign Module for Outdoor Billboard photo-5
12V Smd 5050 Samsung Plastic Led Sign Module for Outdoor Billboard photo-6
US$ 0.18 - 0.2 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Model Number:
STF-K3-5050
Chip Material:
InGaN
Emitting Color:
Other, ww/nw/cw/red/green/blue
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian
Delivery Detail:
Delivery time depends on order quantity.
Model Number STF-K3-5050
Chip Material InGaN
Emitting Color Other, ww/nw/cw/red/green/blue
Luminous Intensity 10000
Luminous Flux(lm) 60-66lm
Optical Attenuation(%) 3
Power Other, 0.72
Power Dissipation 0.72
Color Rendering Index(Ra) 75
Color Temperature w/ww/cw/red/green/blue
Operating Temperature(℃) -20, 60
Storage Temperature(℃) -50, 60
Place of Origin Guangdong, China
Brand Name singsunled
Certification CE

12V smd 5050 samsung plastic led sign module for outdoor billboard



Features:

1. Adopt TOP 5050 SMD LED, no light spot, with a low lumen recession and good consistency.



2. With a low power consumption and high lumen value, 20-22LM/led, a long life-span, maintenance-free.



3. With a plastic injection technique for outer cover, this unique structure grants a better cooling effect. UL 94V0 ABS.



4. IP Rate: IP68, waterproof.



5. DC 12V low voltage input , reliable and safe.



6. Adopt series-parallel connection circuit, 20pcs/50pcs per string, each module could be singled out.



7. Viewing angle: 120° degree.



8. Five years warranty.



Specification:



LED Type

5050 SMD LED

LED BRAND

Epistar chip from Taiwan

Viewing Angle

120°

Luminous Flux(lm)

60-66 LM

LED Qty

3 pcs

 Life Span

50,000 H

Working Voltage

DC12V

Consumption

0.72 W

Driving Method

CV

Stand Length In Serial Connection

20pcs/50pcs

Maximum Length In Serial Connection

≤50pcs/≤20pcs

Shell

white ABS

Dimension

66*15*7.5 mm

Available Color

W/WW/CW

Certification

CE&ROHS

Working Temperature

 -20℃ —— +60℃

Store Temperature

 -50℃ —— +60℃

IP Degree

IP68




Production overview:

12V smd 5050 samsung plastic led sign module for outdoor billboard

Dimension Diagram:

12V smd 5050 samsung plastic led sign module for outdoor billboard12V smd 5050 samsung plastic led sign module for outdoor billboard



Connection Diagram:

12V smd 5050 samsung plastic led sign module for outdoor billboard

Package:

12V smd 5050 samsung plastic led sign module for outdoor billboard

12V smd 5050 samsung plastic led sign module for outdoor billboard





Application:

1. Backlight of giant signage ,channel letter and lighting box.

2. Marine signal and task lighting.

3. Architectural outdoor lights.

12V smd 5050 samsung plastic led sign module for outdoor billboard

Certificates:

12V smd 5050 samsung plastic led sign module for outdoor billboard12V smd 5050 samsung plastic led sign module for outdoor billboard
