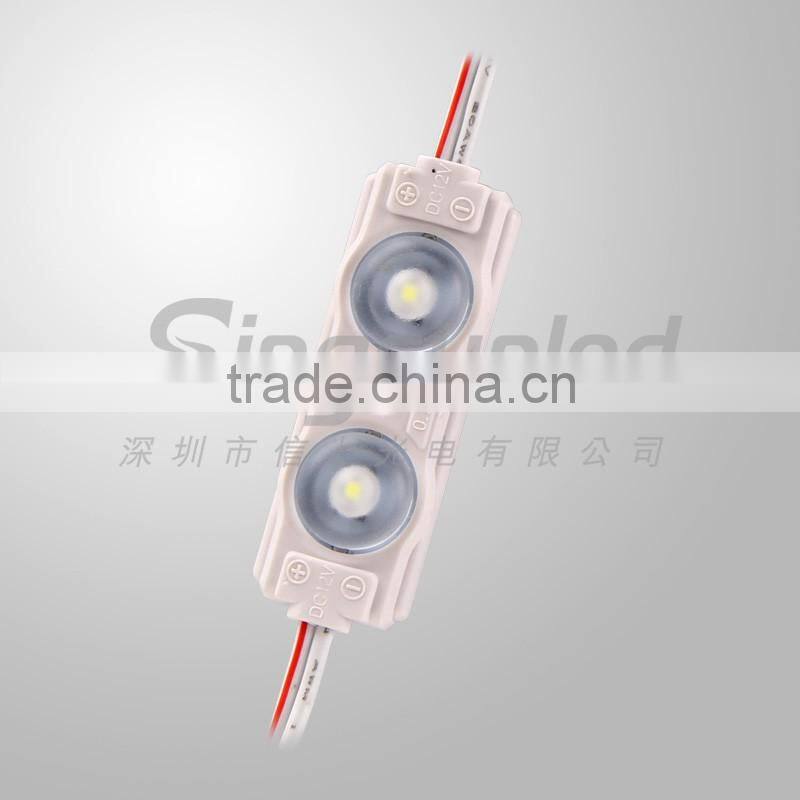

High quality 2chips 2835 LED Module 0.72W 165 Degree

FOB Price

USD $0.26 - $0.26 / Piece

5000 Pieces(Min.Order)

Product Details

High quality 2chips 2835 LED Module 0.72W 165 Degree

Product Specifications:

LED Type	2835 SMD LED
LED BRAND	Epistar chip from Taiwan
Viewing Angle	165-170°
Luminous Flux(lm)	70LM
LED Qty	2 pcs
Life Span	50,000 H
Working Voltage	DC12V
Consumption	0.72watt
Driving Method	constant current
Stand Length In Serial Connection	50pcs
Maximum Length In Serial Connection	≤50pcs
Shell	white ABS
Dimension	30176.5 mm
Available Color	W/WW/CW
Certification	CE&ROHS
Working Temperature	-20℃ —— +60℃
Store Temperature	-50℃ —— +60℃
IP Degree	IP65

Features:

1. Adopt TOP 2835 SMD LED, no light spot, with a low lumen recession and good consistency.

2. With a low power consumption and high lumen value, 35LM/led, a long life-span, maintenance-free.

3. With a plastic injection technique for outer cover, this unique structure grants a better cooling effect. UL 94V0 ABS.

4. IP Rate: IP65,

5. DC 12V low voltage input, constant current drive method, reliable and safe.

6. Adopt series-parallel connection circuit, 50pcs per string, each module could be singled out.

7. Viewing angle: 165-170°.

8. Five years warranty.

Dimesion Diagram(mm):

Application:

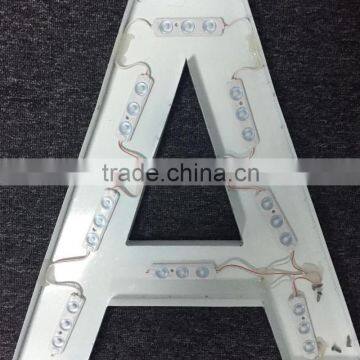

This product is applicable for 3-20cm glowing character, advertisement board, light box or local lighting.

Package:

50 pcs per string, 100pcs per bag, 5000 pcs per a carton box. Carton size: 50*35*31.5 cm.

Net Weight: 4.5 g/pc; 225 g/string; 24kg/carton.

CE & RoHS Certifications:

Shenzhen Singsunled Co., Ltd.: Contact nameTracy Gao; Phone86-755-28089078; Address2F, No. 5 of Xinggong 2nd Road, Hongxing Village, Gongming Street, Guangming New District Shenzhen,Guangdong
