2015 Hot Sell Injection Led Module 2835 Smd Led 1w Module Injection 2835 Led Module With Lens

2015 Hot Sell Injection Led Module 2835 Smd Led 1w Module Injection 2835 Led Module With Lens photo-1
2015 Hot Sell Injection Led Module 2835 Smd Led 1w Module Injection 2835 Led Module With Lens photo-2
2015 Hot Sell Injection Led Module 2835 Smd Led 1w Module Injection 2835 Led Module With Lens photo-3
2015 Hot Sell Injection Led Module 2835 Smd Led 1w Module Injection 2835 Led Module With Lens photo-4
2015 Hot Sell Injection Led Module 2835 Smd Led 1w Module Injection 2835 Led Module With Lens photo-5
2015 Hot Sell Injection Led Module 2835 Smd Led 1w Module Injection 2835 Led Module With Lens photo-6
US$ 0.52 - 0.58 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Model Number:
STF-T4
Emitting Color:
Other, warm white/nature white/cool white
Luminous Flux(lm):
140lm
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Model Number STF-T4
Emitting Color Other, warm white/nature white/cool white
Luminous Flux(lm) 140lm
Optical Attenuation(%) 3%
Power Other, 1.44watt
Color Rendering Index(Ra) 75
Color Temperature 2700-12000K
Operating Temperature(℃) -20, 60
Storage Temperature(℃) -50, 60
Place of Origin Guangdong, China
Brand Name Singsunled
Certification CE

2015 hot sell injection led module 2835 smd led 1w module injection 2835 led module with lens



2015 hot sell injection led module 2835 smd led 1w module injection 2835 led module with lens

2015 hot sell injection led module 2835 smd led 1w module injection 2835 led module with lens

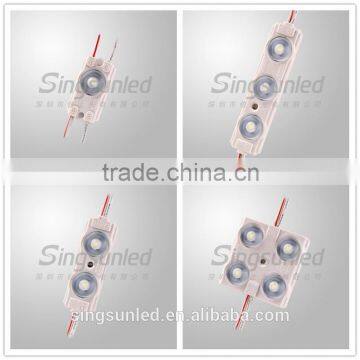

Features:



1. Adopt TOP 2835 SMD LED, no light spot, with a low lumen recession and good consistency.

2. With a low power consumption and high lumen value, 35-40LM/led, a long life-span, maintenance-free.

3. With a plastic injection technique for outer cover, this unique structure grants a better cooling effect. UL 94V0 ABS.

4. IP Rate: IP65,

5. DC 12V low voltage input, constant current drive method, reliable and safe.

6. Adopt series-parallel connection circuit, 20pcs per string, each module could be singled out.

7. Viewing angle: 165-170°.

8. Five years warranty.

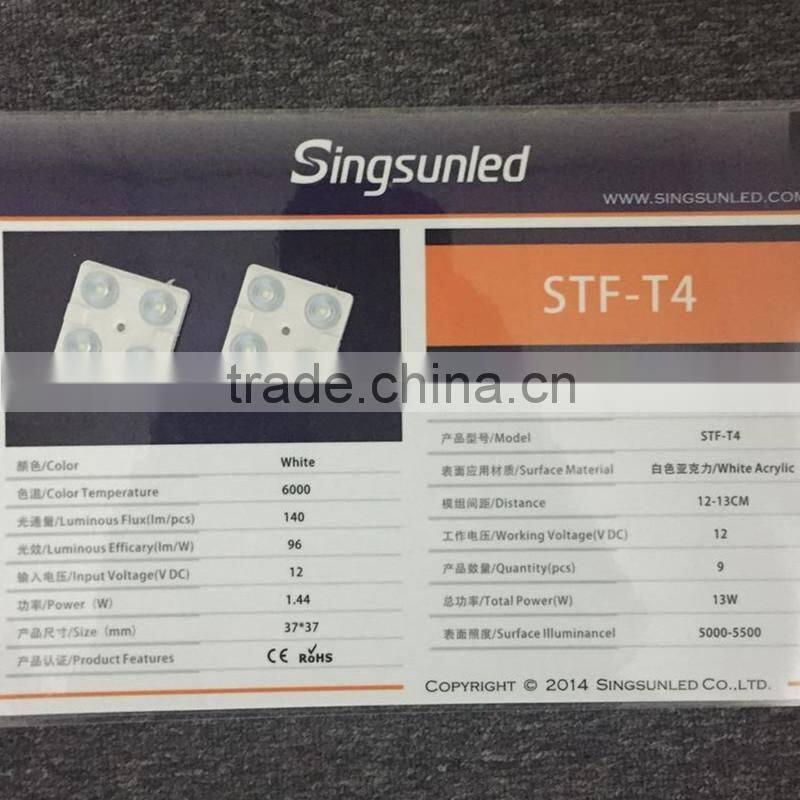

Product Specifications:



LED Type

2835 SMD LED

LED BRAND

Epistar chip from Taiwan

Viewing Angle

165-170°

Luminous Flux(lm)

140 LM

LED Qty

4 pcs

 Life Span

50,000 H

Working Voltage

DC12V

Consumption

1.44 W

Driving Method

constant current

Stand Length In Serial Connection

20pcs

Maximum Length In Serial Connection

≤20pcs

Shell

white ABS

Dimension

39*39*6.5 mm

Available Color

W/WW/CW

Certification

CE&ROHS

Working Temperature

 -20℃ —— +60℃

Store Temperature

 -50℃ —— +60℃

IP Degree

IP65





Package:



Every 20 pcs per a string, every 5 string in an anti-static bag, 2000 pcs per a carton box.  Carton size: 50*35*31.5 cm.

Net Weight: 12.5 g/pc;  250 g/string;  28kg/carton.

2015 hot sell injection led module 2835 smd led 1w module injection 2835 led module with lens





Dimension Diagram(mm):



2015 hot sell injection led module 2835 smd led 1w module injection 2835 led module with lens

Application:

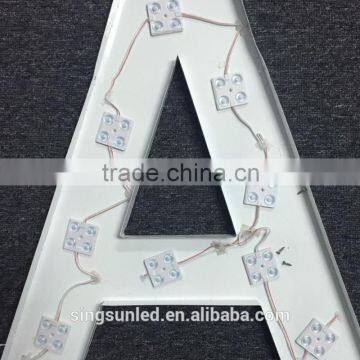

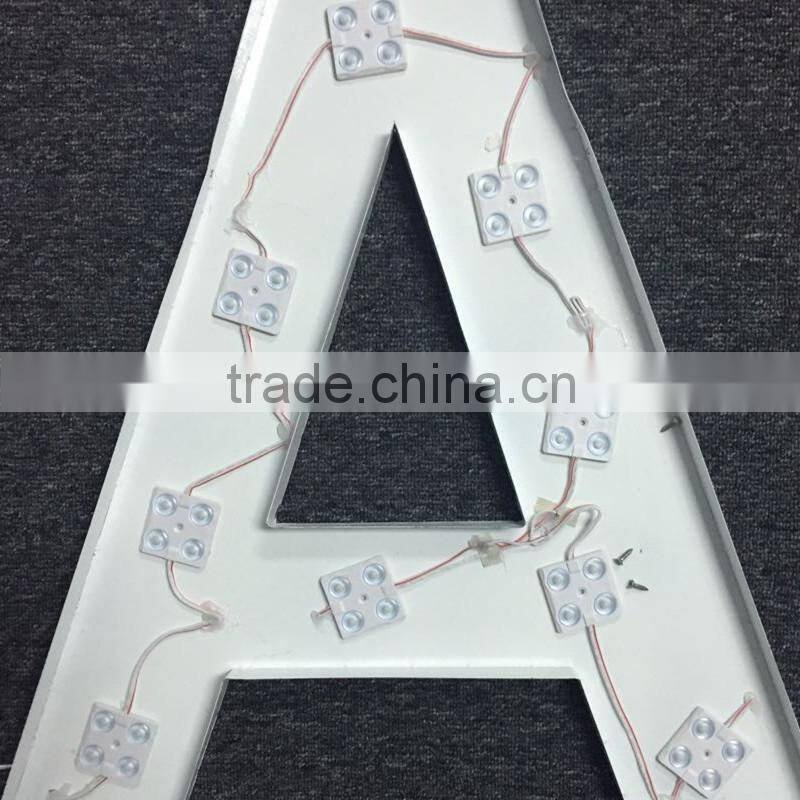

This product is applicable for 12-20cm glowing character, advertisement board, light box or local lighting.



2015 hot sell injection led module 2835 smd led 1w module injection 2835 led module with lens



2015 hot sell injection led module 2835 smd led 1w module injection 2835 led module with lens



2015 hot sell injection led module 2835 smd led 1w module injection 2835 led module with lens





CE & RoHS Certifications:



2015 hot sell injection led module 2835 smd led 1w module injection 2835 led module with lens



2015 hot sell injection led module 2835 smd led 1w module injection 2835 led module with lens





Exhibition Pictures:



Russian REKLAMA 2014(Time: 23-26, September, 2014.  Booth No: FC144)  & 2014 Hong Kong International Lighting Fair Autumn Edition( Time: 27-30, October, 2014.  Booth No: CR-A32)



2015 hot sell injection led module 2835 smd led 1w module injection 2835 led module with lens



2014 GZ&Shanghai International Lighting EXPO



2015 hot sell injection led module 2835 smd led 1w module injection 2835 led module with lens
