Print PE and Kraft Paper Bag Film Extrusion Coating and Laminating Machine/ plant
- 40 Set / Sets per Month
- Xiamen
- T/T Credit Card
Product Details
Condition: | New | Application: | Film | Plastic Processed: | PP |
Screw Design: | Single-screw | Automatic Grade: | automatic | Place of Origin: | Fujian, China |
Brand Name: | NUODA | Model Number: | ND-FH-1200 series | Voltage: | 380-415V, 50HZ |
Power(W): | 90-150kw | Dimension(L*W*H): | 12.5x8x3.2m | Weight: | 16ton |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.0.01-0.8mm film thickness2.Large production capacity
3.Low power consumption,
4.Stable performance
5.Easy to use

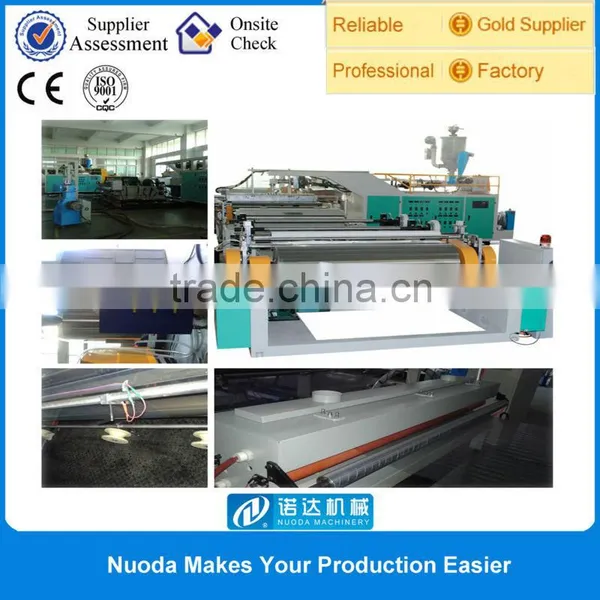

Print PE and Kraft Paper Bag Film Extrusion Coating and Laminating Machine/ Plant
Introduction:
Print PE and Kraft paper Bag Film extrusion coating and laminating machine/ plant uses LDPE, PP, EVA, PEVA, LLDPE, HDPE, TPU as raw material, and then laminates the extruded film onto various kinds of substrates, such as nonwoven fabric, BOPP, BOPET, BOPA, and paper etc. The final products are widely used for hygienic and medical products, the packaging of food, chemical industry, electrical products and metallurgy etc.
Characteristics & Applications:
1) Made up of plastic extruder, T die, first unwinder, embossing unit,second unwinder, edge trim unit, slitting system, automatic rewinder, etc.
2) Friction roll rewinding, or double-station turret rewinding, roll pre-rewinding device and single or double side laminating machine for choice.
3) Running for 24 hours, and change rolls automatically without stop, production speed can be 30-100/min.
4) Laminating PE, EVA, PP, TPU with paper,plastic film, non-woven, fabric or aluminum foil into double layer, three layers or multi-layers products.
5) Product are used as packing products for cement, chemicals, forage, food, medicine, adhesive tape, PE coated paper cups and fast food boxes,etc.
Technical data:
Model | Screw Diameter | Screw L/D Ratio | T Die Width | Film Width | Film Thickness | Liner Speed |
ND-FH-1200 | Φ90 | 33:1 | 1200mm | 1000mm | 0.015-2.0mm |
30-80m/min
|
ND-FH-1750 | Φ90 | 33:1 |
1750mm
| 1550mm | 0.015-2.0mm | 30-80m/min |
ND-FH-2000 | Φ110 | 33:1 | 2000mm | 1800mm | 0.015-2.0mm | 30-80m/min |
ND-FH-2300 | Φ120 | 33:1 | 2300mm | 2100mm | 0.015-2.0mm | 30-80m/min |
ND-FH-2700 | Φ135 | 33:1 | 2700mm | 2500mm | 0.015-2.0mm
| 30-80m/min |
Please contact us for more machine technical datails and proposal. We can send you machine videos for clear understanding.
Workshop And Equipments:
Customer's production field:
