High Transparency OPP/CPP Chocolate Candy Bag Film Machine
- 40 Set / Sets per Month
- Xiamen
- T/T Credit Card PayPal
- CE certificated hydraulic press/Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
- 20 years manufacturer, automatic hay and straw baling machine
- more than 20 years factroy supply CE certificated used clothes and textile baling machine
- more than 20 years factory supply Hard plastic/ Fiber/Cotton/Woolen/Clothes/Textile Baler machine press
- more than 20 years factory supply plastic baler machine
- more than 20 years factory supply Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
Product Details
Condition: | New | Application: | Food, Beverage, Commodity, Medical, Other, Food, Beverage, Commodity, Medical, Machinery & Hardware | Packaging Type: | Film, Foil |
Packaging Material: | Plastic | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 380-415V, 50HZ | Power: | 80-140KW | Place of Origin: | Fujian, China |
Brand Name: | NUODA High Transparency OPP/CPP Bag Film Machine | Model Number: | ND-FH-1200 series High Transparency OPP/CPP Bag Film Machine | Weight: | 16ton |
Dimension(L*W*H): | 15*3*3.5m | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1. large production capacity2. low power consumption
3. stable performance
4. easy to use

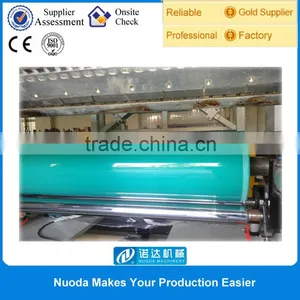

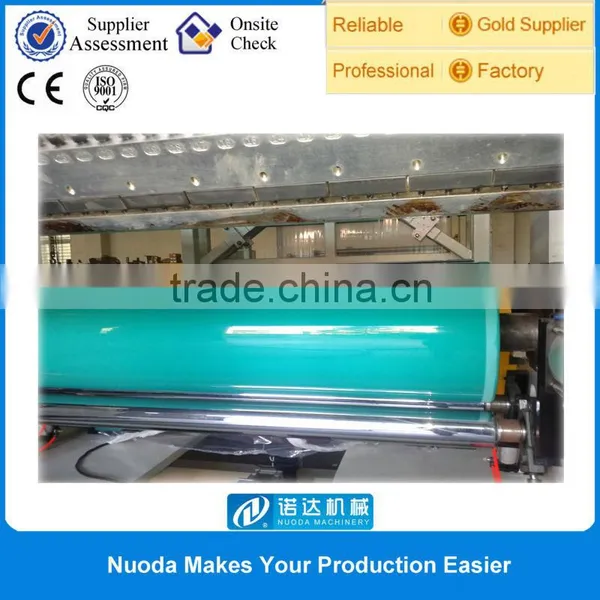

High Transparency OPP/CPP Chocolate Candy Bag Film Machine
Introduction:
High Transparency OPP/CPP Chocolate Candy Bag Film Machine uses LDPE, PP, EVA, PEVA, LLDPE, HDPE, TPU as raw material, and then laminates the extruded film onto various kinds of substrates, such as nonwoven fabric, BOPP, BOPET, BOPA, and paper etc. The final products are widely used for hygienic and medical products, the packaging of food, chemical industry, electrical products and metallurgy etc.
Characteristics & Applications:
1) Made up of plastic extruder, T die, first unwinder, embossing unit,second unwinder, edge trim unit, slitting system, automatic rewinder, etc.
2) Friction roll rewinding, or double-station turret rewinding, roll pre-rewinding device and single or double side laminating machine for choice.
3) Running for 24 hours, and change rolls automatically without stop, production speed can be 30-100/min.
4) Laminating PE, EVA, PP, TPU with paper,plastic film, non-woven, fabric or aluminum foil into double layer, three layers or multi-layers products.
5) Product are used as packing products for cement, chemicals, forage, food, medicine, adhesive tape, PE coated paper cups and fast food boxes,etc.
Technical data:
Model | Screw Diameter | Screw L/D ratio | T Die Width | Film Width | Film Thickness | Liner Speed |
ND-FH-1200 | 90 | 33:1 | 1200mm | 1000mm | 0.015-2.0mm | 30-80m/min |
ND-FH-1750 | 90 | 33:1 |
1750mm | 1550mm | 0.015-2.0mm | 30-80m/min |
ND-FH-2000 | 110 | 33:1 | 2000mm | 1800mm | 0.015-2.0mm | 30-80m/min |
ND-FH-2300 | 120 | 33:1 | 2300mm | 2100mm | 0.015-2.0mm | 30-80m/min |
ND-FH-2700 | 135 | 33:1 | 2700mm | 2500mm | 0.015-2.0mm | 30-80m/min |
Please contact us for more machine technical datails and proposal. We can send you machine videos for clear understanding.
