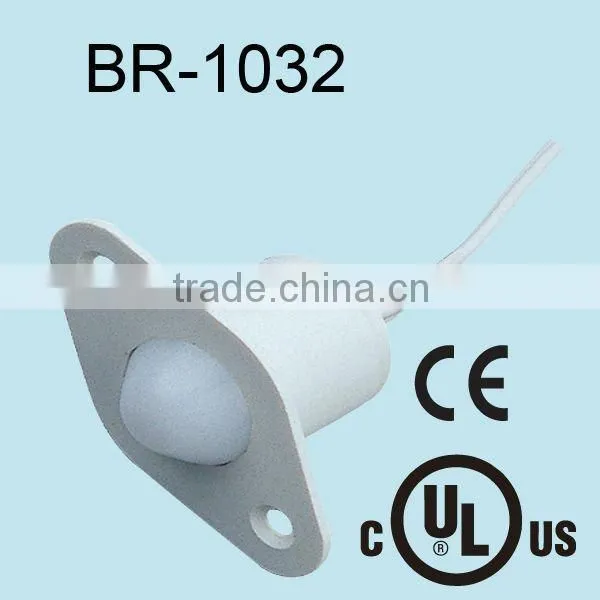

UL CE Approved Wired Magnetic Door Switch
US$ 0.8 - 1.2
MOQ: 500 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SENTEK
Model Number:
BR-1032
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Burglar Alarm Magnetic Door SwitchUS$ 0.8 - 1.2MOQ: 500 Sets -
Overhead Metal Door Magnetic Contact Switch BSD-3013US$ 4.8 - 5.5MOQ: 500 Pieces
-
Overhead Rolling Garage Door Magnetic Contact Door Contact BSD3013NegotiableMOQ: 500 Pieces
-
Surface Mount Security Magnetic Door Contacts BS-2072NegotiableMOQ: 500 Pieces
-
Surface Mount Security Magnetic Door Contact Switch/window Contact SwitchNegotiableMOQ: 500 Pieces
Place of Origin
Zhejiang, China
Brand Name
SENTEK
Model Number
BR-1032
Usage
Door
Specifications

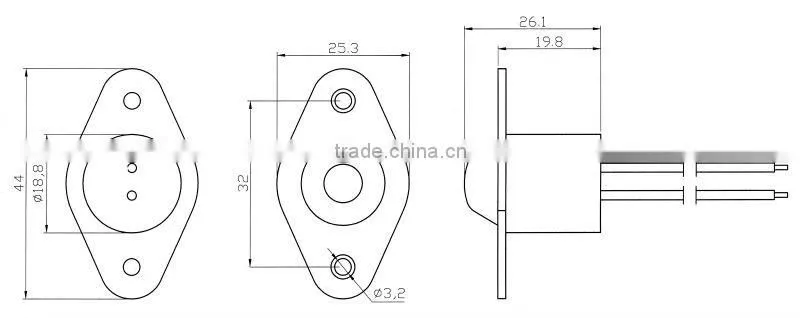

magnetic door switchPlunger flush type
3/4" diameter
Special leads available
Spacer and screws included
magnetic door switch
Specification:
* Plunger flush type
* 3/4" diameter
* Standard 18" #22AWG leads
* Special leads available
* Spacer and screws included
* Terminal block available
* Colors: White or Brown
The range includes:
|
Part Number |
Loop Type |
Reed Form |
Gap (total travel) [Inch (mm)] |
Maximum Initial Contact Resistance (Ohm) |
Maximum Contact Rating (W) |
Maximum Switching Voltage (VDC/VAC) |
Maximum Switching Current (A) |
BR-1032 |
Closed |
N/O |
1/4 (6) |
0.150 |
10 |
100 |
0.5 |
