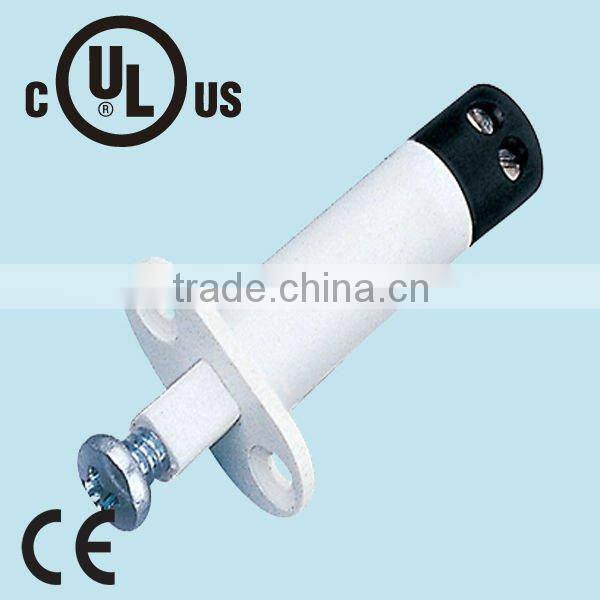

CE/UL approved screw plunger magnetic door contact switch
Specification:
. Adjustable screw plunger w/flange
. 3/8" diameter press to fit
. Single drink hole

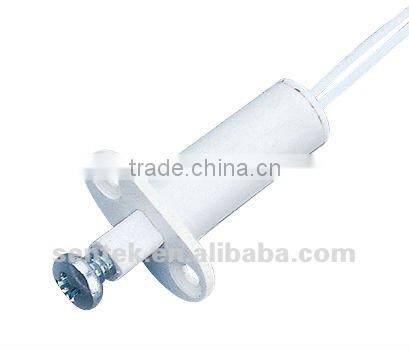

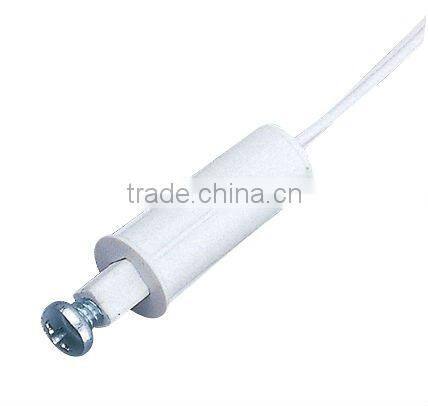

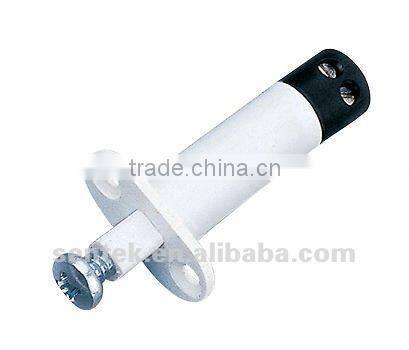

. 18" #22AWG leads or screw terminal
. Special leads available
. Screws included
. Colors: White, Brown, Grey
Order Information:
|
Part Number |
Loop Type |
Reed Form |
Gap (Inch (mm) ) |
Maximum Initial Contact Resistance (Ohm) |
Maximum Contact Rating (W) |
Maximum Switching Voltage (VDC/VAC) |
Maximum Switching Current (A) |
BR-1051F |
Closed |
N/O |
1/4 (6.2) |
0.150 |
10 |
100 |
0.5 |
BR-1051FT |
Closed |
N/O |
1/4 (6.2) |
0.150 |
10 |
100 |
0.5 |
BR-1051FA |
Open |
N/C |
1/4 (6.2) |
0.150 |
3 |
30 |
0.2 |
BR-1051FTA |
Open |
N/C | 1/4 (6.2) |
0.150 |
3 |
30 |
0.2 |
UL APPROVED:BR-1051F,BR-1051FT

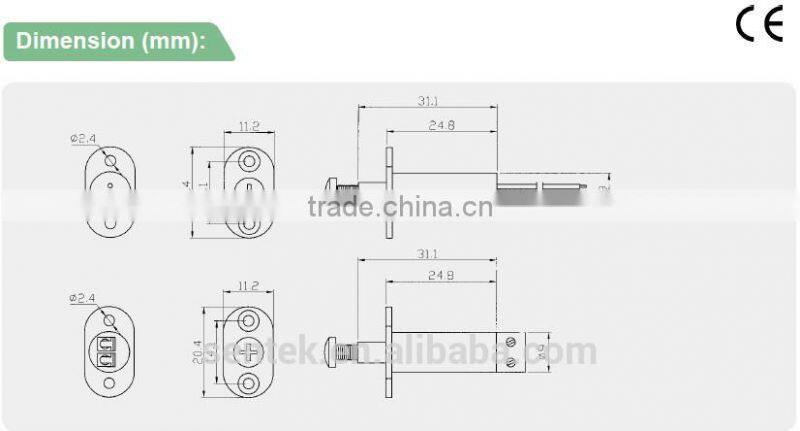

Note: 1. Total Travel: .244 inch (6.2mm) Pre Travel: .11+/-.04 inch (2.80+/-1.00mm)
2.Wire range for terminal: #20~#24AWG
BR-1051F BR-1051FT BR-1051
