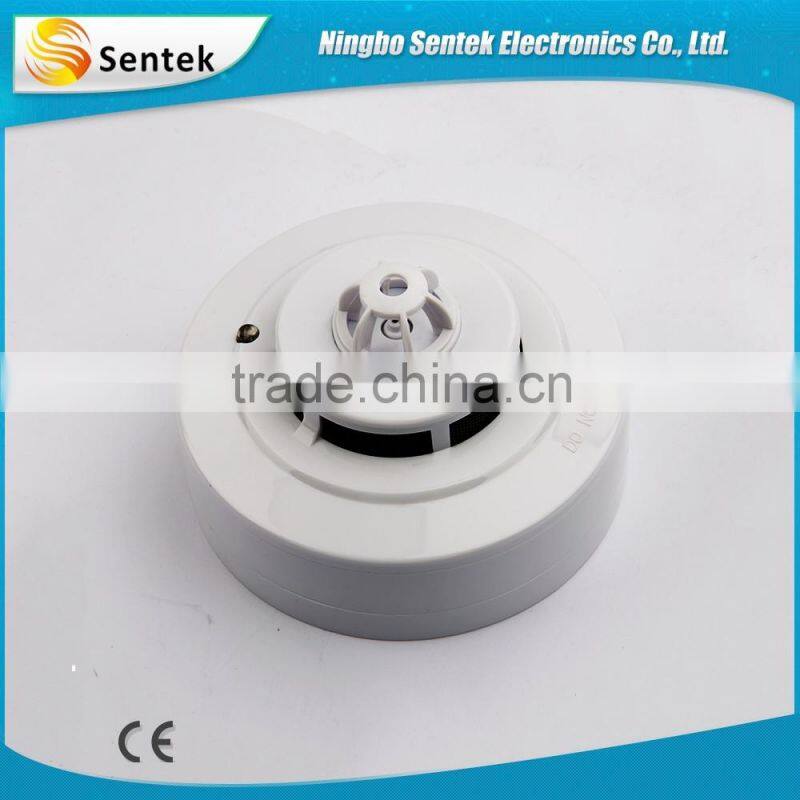

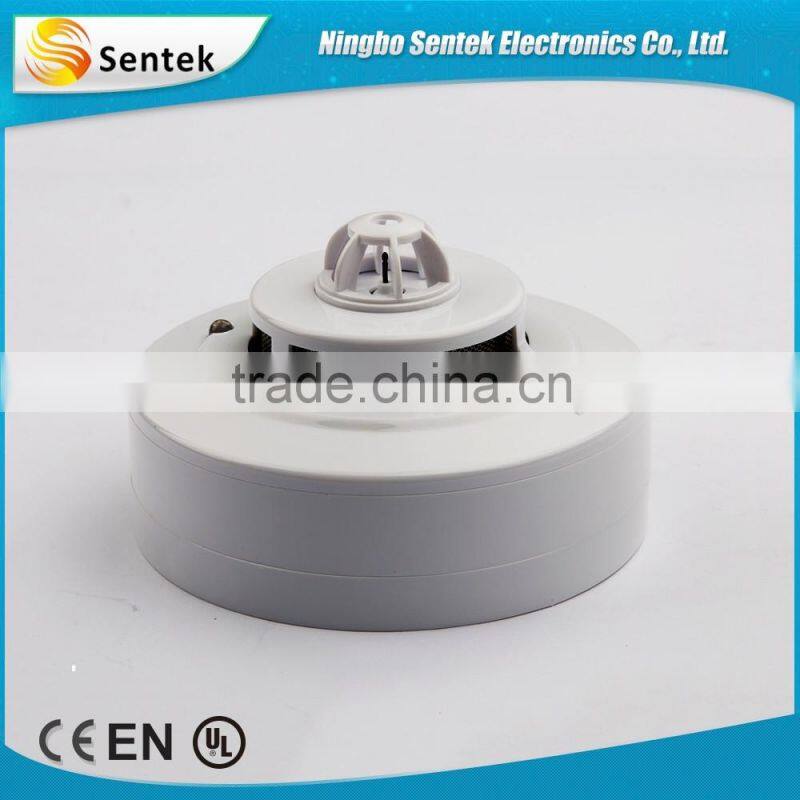

EN54 Certificated Analogue Addressable Combined Smoke and Heat Detector

EN54 Certificated Analogue Addressable Combined Smoke and Heat Detector photo-1
US$ 7 - 8 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Sentek
Model Number:
SD119-4H
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Sentek
Model Number SD119-4H

EN54 Certificated Analogue Addressable Combined Smoke and Heat Detector

Product Description

 EN54 Certificated Analogue Addressable Combined Smoke and Heat Detector



SD119-4H is a 4 wire multipurpose photoelectric smoke alarm with UL268/521 and EN54-5/7, CE approvals
Features:
1) Models:  SD119-4H(12V) or SD119-4H(24V) or SD119-4H(48V)
2) Advanced detection and discrimination algorithms
3) Easy installation and maintenance
4) Polished low-profile housing design
5) Durable sensor head, no need for replacement
6) SMD circuit board design: satisfactory quality and reliability guaranteed
7)  N/C (normal / close) and N/O (normal / open) relay output ways for option
8) AR (auto reset) function for security systems available
9) Sensor base: standard and Schottky diode style for optional
10) Five-year warranty



Smoke Sensitivity:

per UL268or EN54-7 standard

Ceiling Spacing:

50 foot rating for heat sensor (55 degree)

Reset Voltage:

less than 1 volt

Reset Time:

less than 1 second

Alarm Indicator:

LED continuously emitting red light

Remote Output:

25 mA max., diode gate

Temperature Range:

-10°C to 50°C

Permissible Current:

80mA maximum

Humidity:

0 to 95% RH, no condensation or icing

Alarm Contact:

NO or NC Operation, Form A: 1.0A@30VDC/0.5A@125VAC

Dimensions:

100mm (dia) x 52mm (ht) with base

Weight:

130g/set with base
