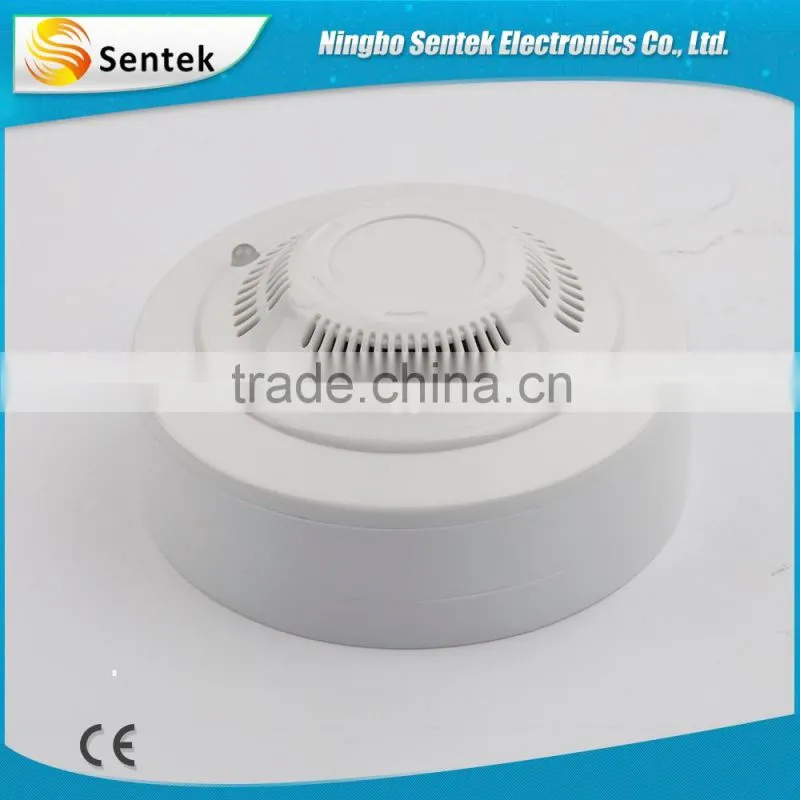

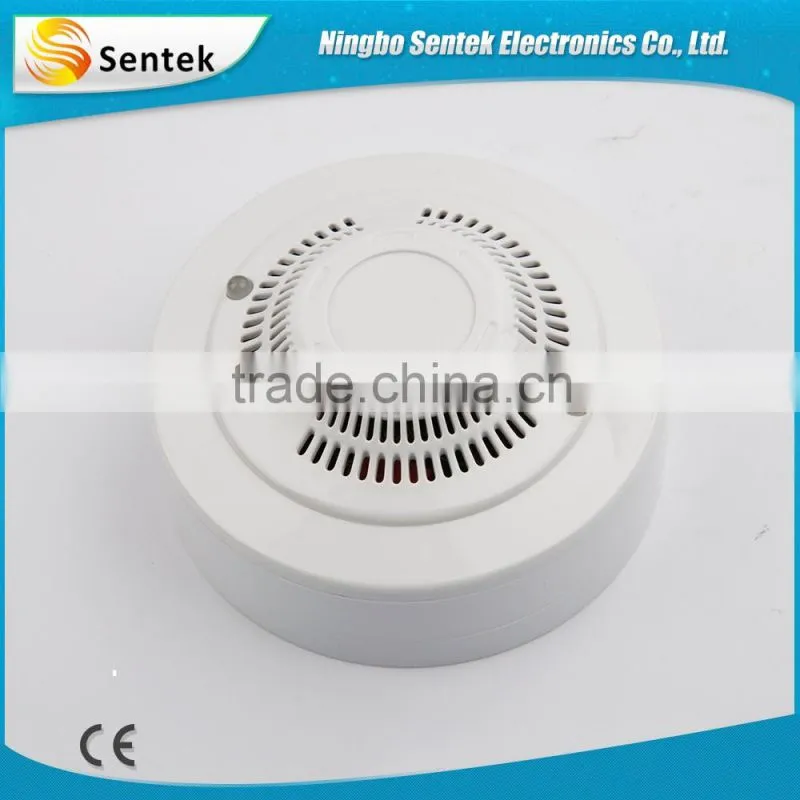

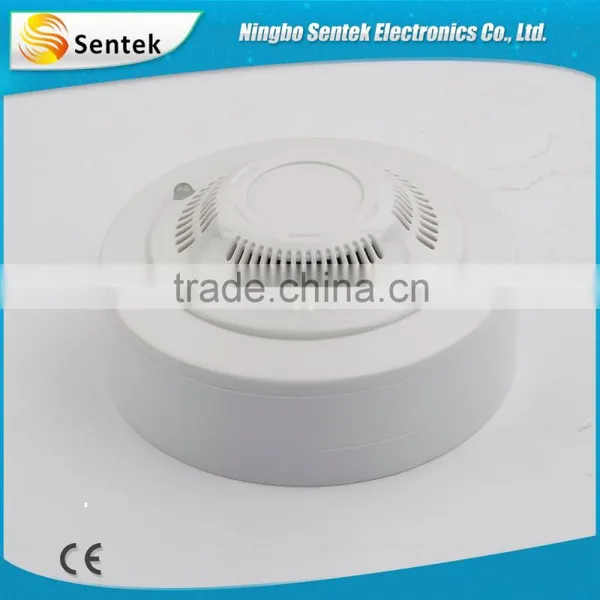

CO Gas Detector Carbon Monoxide Detector CO530
1 To detect CO gas (Cabon Monoxide)
2 Sensitivity can be calibrated into either UL2034 or EN50291 standards
3 Figaro semiconductor sensor heads with UL approval for CO detection
4 Advanced detection and discrimination algorithms
5 Easy installation and maintenance, Sleek low-profi le housing design
6 SMD circuit board design
7 Magnet test feature
8 Sounding a loud alarm signal of exceeding 85db in alarm mode
9 Five-year limited warranty
Specification:
Mode |
2/4 Wire |
Voltage DC min/max |
Standby Current 12V /24V |
Alarm Current 12V/24V |
Humidity |
Base Mode |
CO530 |
2 |
12/24 |
17 mA (12V) 10 mA (24V) |
25 mA(12V) 18 mA(24V) |
3090 |
P/N852001 |
CO530R |
4 |
12/24 |
17 mA (12V) 10 mA (24V) |
30 mA(12V) 20 mA(24V) |
3090 |
P/N854001 |
| Unit Dimensions | 98mm (Diameter) x 47 mm (Height) |
| Operating Temperature | -10°C to +50°C |
| Ambient Humidity | 5%~95% RH |
| Alarm Horn | >75dB with Auto-reset at 3m (10 feet) |
| Relay Rating (if available) | NO or NC operation, Rating: 1.0A@30VDC/0.5A@125VAC (resistive load) |
| Power Consumption | 2W |
| Time to alarm |
70ppm within 75minutes 150ppm within 35 minutes 400ppm within 10minutes Notice: the sensitivity can be cablicarated according to UL or EN standard |
| Weight: | 170g with base |
Packaging:100pcs/canton or packed according to customers' request
Shipping Details: 25days
