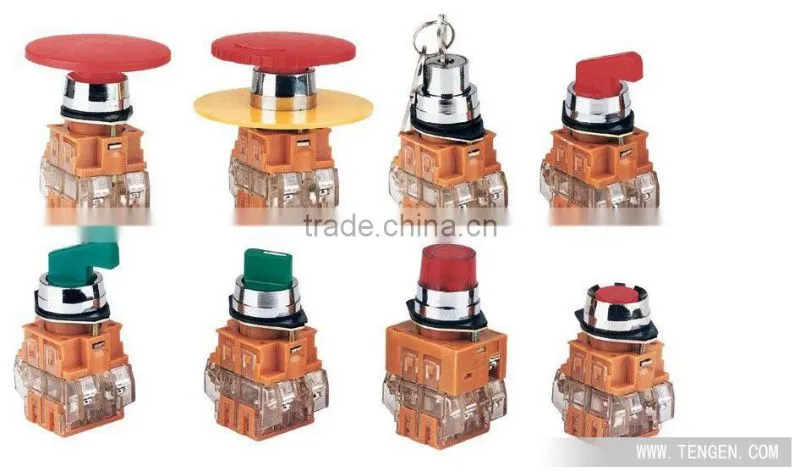

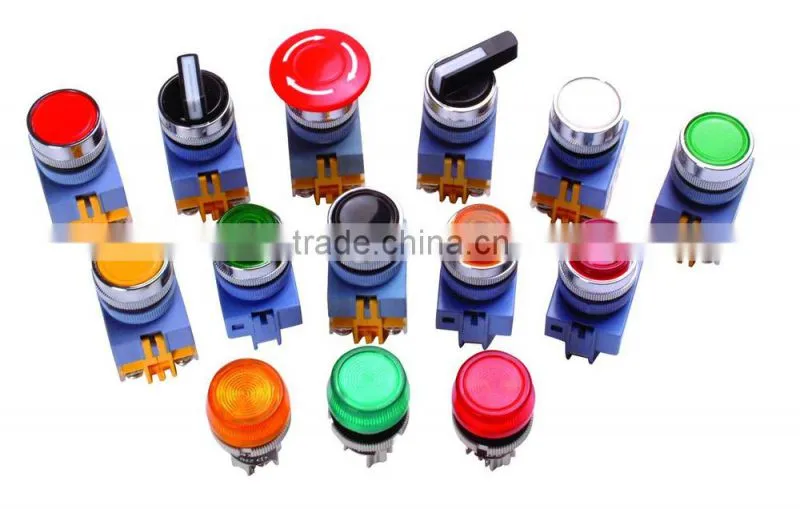

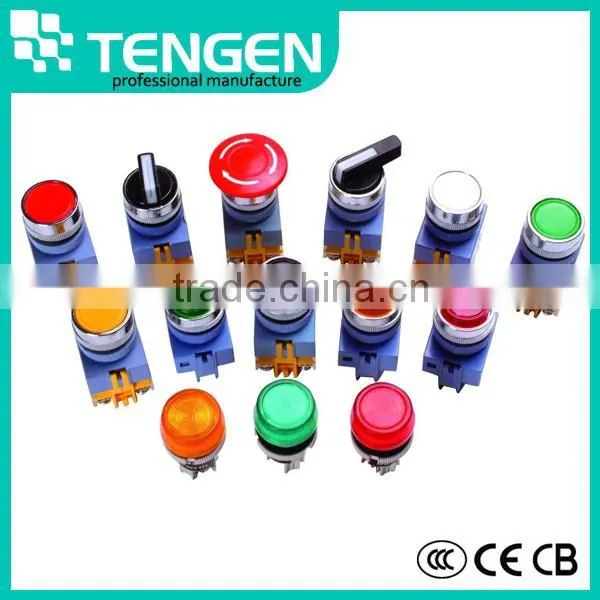

metal momentary push button switch/micro switch and push button/pin terminal push button switch
1.Specifications
Electrical Push Button Light Switch :control and signal chain
Electrical Push Button Light Switch use for telecontrol in electromagnetic starter, connector, relays and other electric circuit of
AC50Hz and rated voltage to 660V, rated voltage to 440V in DC circuit.
2.Feature
1)Base uses PC and contactors are copper
2)Contactors possess the function of cleaning itself which ensures the reliable switching on and off.
3)NO and NC contactors can be combined freely
4)Having mounting pad of preventing revolve and loose
5)Wire connecting terminals have shields to increase the security of use
3.Technical parameters
| Model | LAY3 | |
| Rated operational voltage | up to AC660V/DC440V | |
| Frequency | AC 50Hz | |
| Function | Control and signal chain | |
| Rated insulation voltag | 660V | |
| Conventional thermal current(Ith) | 10A | |
| Protection grade | IP40 | |
| Standard and certification | IEC 60947-5-1 ,CCC ,GB14048.5 | |
| AC-15 | Rated operational voltage(V) | 660 380 220 |
| Rated operational current(A) | 1.5 2.5 4.5 | |
| DC-13 | Rated operational voltage(V) | 440 220 110 |
| Rated operational current(A) | 0.1 0.3 0.6 | |
| Degree of pollution | 3 | |
| Type of installation | Ⅱ | |
| Altitude | ≤2000m | |
| Ambient air temperature | ‘-5°C~+40°C |
|
Q: Is sample available and free?
A:Sample is available and free. But the charge of freight should be paid.
metal momentary push button switch/micro switch and push button/pin terminal push button switch
Q: What cerficated do you got ?
A:We got CE , CCC , ISO...
metal momentary push button switch/micro switch and push button/pin terminal push button switch
Q: What's your warranty ?
A:Our warranty of the product is 8 years.
metal momentary push button switch/micro switch and push button/pin terminal push button switch
Q: What's the delivery time ?
A:Delivery time is depended on quantity . It usually takes 5-7 days as MOQ 1000pcs.
metal momentary push button switch/micro switch and push button/pin terminal push button switch
Q: How about the transport ?
A:We usually transport by Express for samll order , transport by sea or by air for huge quantity.
Zhejiang Tengen Imp. & Exp Co., Ltd.
Add: 161#Daqiao Road Tengen Building,Liushi,Wenzhou,Zhejiang,325604 China
TEL:0086-577-57572160
FAX:0086-577-57572157
Skype:helen.lin24
metal momentary push button switch/micro switch and push button/pin terminal push button switch
Thanks for your attention!
