45mm total length stereo 10k linear slide potentiometer
USD $0.65 - $0.97
/ Piece
1 Piece(Min.Order)
- 35000 Piece / Pieces per Month
- shanghai ningbo qingdao guangzhou shenzhen
- T/T Credit Card
You May Like
-
8mm Potentiometer: Horizontal, 10K Ohm+/-10%, with Rotary Switch, Shaft Length 15mm, Used for Walkie Talkies, Radios and Other Instruments and Equipment
-
9mm horizontal single gang rotary potentiometer knob adjustable resistance with rotary switch
-
9mm horizontal single gang rotary potentiometer knob adjustable resistance with rotary switch
-
8mm metal shaft horizontal type dual gang Rotary Potentiometer with rotary switch, use for interpone and Small Audio Device, Small Radio
-
8mm metal shaft horizontal type dual gang Rotary Potentiometer use for interpone and Small Audio Device, Small Radio
-
8mm metal shaft horizontal type rotary potentiometer knob integrated push switch , 10KΩ，adjustable resistance VR
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | YH | Model Number: | WH3012P L10C |
| Type: | Slide Potentiometer | Technology: | Carbon Film | Resistance: | 1k~1M |
| Resistance Tolerance: | ±20% / ±10% | Rated Power: | 0.25W | Max. Operating Voltage: | 200V AC |
| Operating Temperature: | -10 ~ 60 ℃ |
Product Description
name: 45mm total length stereo 10k linear slide potentiometer

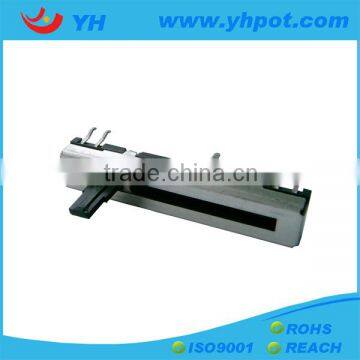

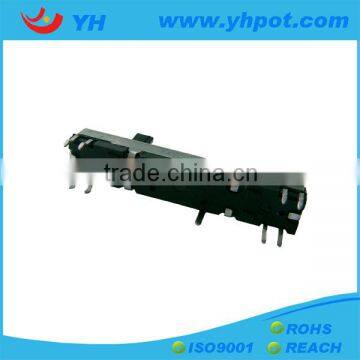

Product display:
Product specifications specifications:
| Total resistance: | 1KΩ~1MΩ |
| Resistance taper: | A,B,C |
| Resistance tolerance: | ±20% or ±10% |
| Rotational noise: | ≤47mV |
| Power Rating: | Curve B: 0.25W Other than B: 0.125W |
| Tracking error: | 0~-40dB ±3dB |
| Rated voltage: | Curve B: 200V |
| Withstanding Voltage: | 1Min,at 250V AC |
| Operating force: | 10~120gf.cm |
| Insulation resistance: | ≥10MΩ at DC250V |
| Operating Temperature: | -10 ~ 60℃ |
| Rotary life: | 10,000cycles |
Common problems:
| Q: | What is your MOQ of this item? |
| A: | 1000pcs. |
| Q: | Where is your loading port? |
| A: | Shanghai port or other port in China. |
| Q: | What is your payment term? |
| A: | TT in advance or LC at sight. |
| Q: | What is the lead time? |
| A: | Normally 15~20 days. |
| Q: | What is your company’s available production capacity? |
| A: | 35000PCS/month. |
| Q: | Could you provide sample? |
| A: | Of course,we are glad to provide free sample to you. |
