Automatic Drinking Water Treatment Plant
- 100 Set / Sets per Month
- SHANGHAI
- T/T Credit Card
- Cheapest Automatic Bottle Blowing Machine Prices/factory price automatic bottle shrink wrapping machine
- PET bottle making machine/nice plastic bottle making machine price/high quality plastic bottle blowing machine
- Top quality china automatic machines to make plastic bottles/bottle blowing machinery/Pet Bottles Blowing Machine 750ml
- Chinese PET water bottle blowing machine/equipment / automatic bottle Blowing machinery
- Low price Beverage drinking PET bottle blowing machinery/fully automatic pet bottle blowing machine
- high quality bottle blowing machine/automatic shrink wrapping machine/water bottle blowing machine
Product Details
Condition: | New | Application: | Food, Beverage, Medical | Packaging Type: | Cans, Bottles, Barrel, Bags |
Packaging Material: | Plastic, Glass | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 380V | Power: | depnds | Place of Origin: | Jiangsu, China |
Brand Name: | DINGSHUN | Model Number: | WTS- X | Dimension(L*W*H): | 9000*2000*1900mm |
Weight: | 3600KG | Certification: | CE ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Automatic Drinking Water Treatment Plant1. pure water,mineral water treatment system
2. automatic, PLC controling system
Welcome your visit to Zhangjiagang Dingshun Machinery Factory!
Our company specialized in providing complete beverage line machinery for water,juice, carbonated beverage,alcohol and oil.
Automatic Drinking Water Treatment Plant
Automatic Drinking Water Treatment Plant machines are widely used in all beverage production line such as pure water production line, mineral water production line, carbonated beverage line,juice line as well as in medical treatment fileds.

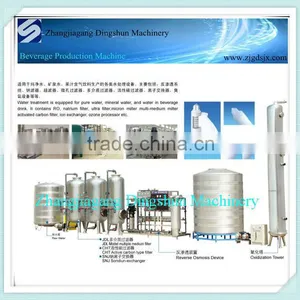

Pure Water Treatment line flow chart
Raw water ->Raw water tank -> Raw water pump -> Quartz sand filter -> Active carbon filter-> High pressure pump ->Security filter -> RO equipment->Pure water tank
Main equipment included the pre-treatment ,RO system and sterilizing system.
(A).Pre-treatment is included sand filter ,carbon filter ,softener(option) and security filter .

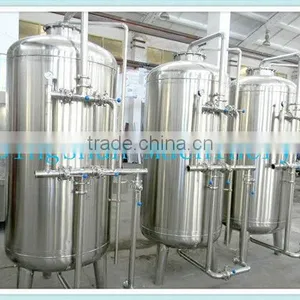

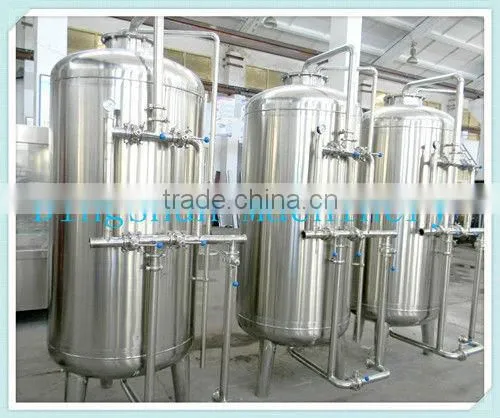

1.Sand filter: A laminated filter is provided to prevent sand, flocculent and colloid entering into membrane element. Its basic filter element is formed by quartzes sand and anthracite.
2. Active carbon filter: This is provided to absorb organic materials, residual chlorine and other injurants, thus it can reduce the effluent COD and keep SDI under and CL2 under 0.1 mg. L.
3. Softening system: This system is to prevent begrime the membrane by ion of Ca and Mg.
4. Precision filter (micro filter) ,PP filter of 5um is installed to prevent fine particulate entering the high lift pump and RO membrane.

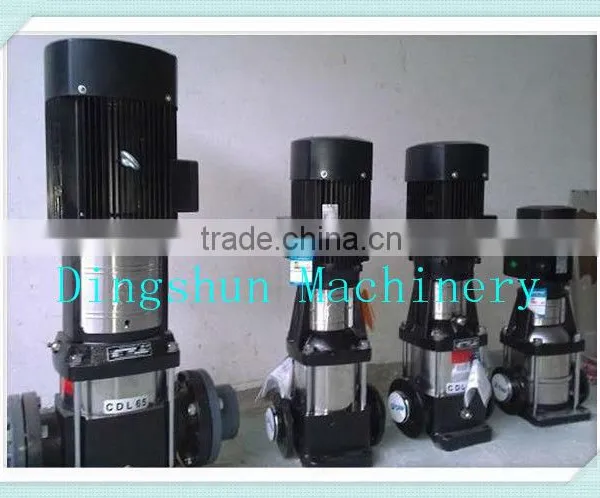

(B).RO system is included that booster pump,membrane and membrane housing, electronic Control System .
It cut out colloids, bacteria, virus and other impurities, and keep output water conductivity below 5um/cm.

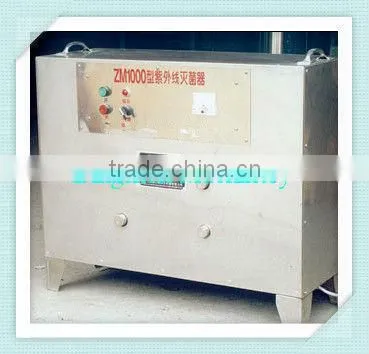

(C). Water Sterilizer often refers to Ozonge Generator and U.V Ray sterilier, which used to kill the germs in water.

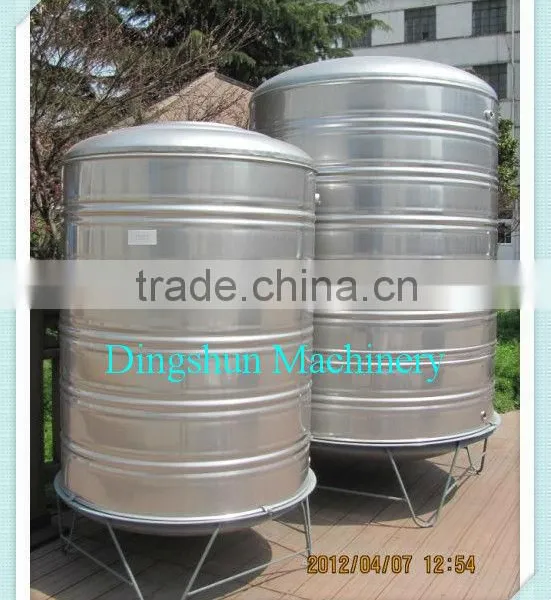

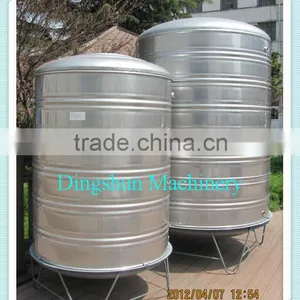

(D).Pure water tank: When the pure water tank is full, the RO machine will automatically come to stop, when the pure water tank is empty, the RO system will automatically run to produce the pure water.
Drinking water treament Machines - water purifiers picture

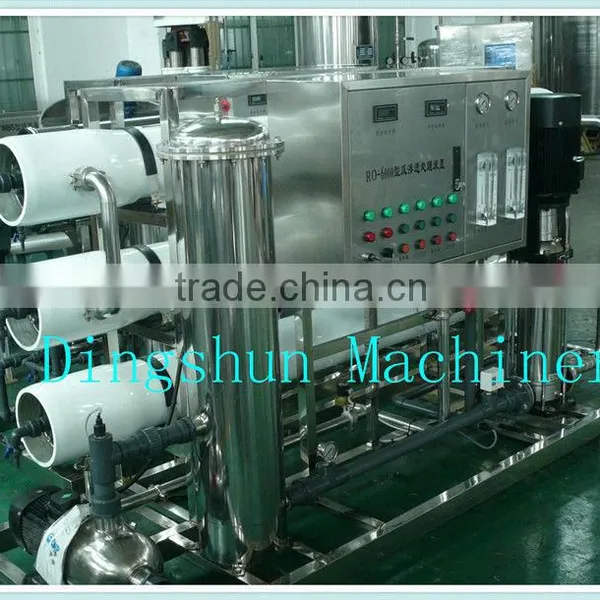

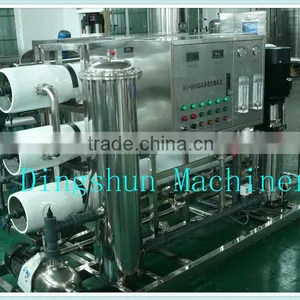

Drinking water treament Machines -R.O machine picture
Drinking water treatment plant machines
Our office and workshop
Thanks for your visiting of our company website. Welcome to our factory and start good businessship with us!
