Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | DINGSHUN |
Model Number: | FSJ series | Voltage: | 380V 50HZ 3P | Power(W): | depends on model |
Weight: | 1800KG | Dimension(L*W*H): | 1100*750*1900* | Processing Types: | Water |
Certification: | CE ISO | Warranty: | 12months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Water Plant Purifying Machine1.water osmosis machine
2.reverse osmosis water purification machine
3.drinking water purifier
Welcome your visit to Zhangjiagang Dingshun Machinery Factory!
Our company specialized in providing complete beverage line machinery for water,juice, carbonated beverage,alcohol and oil.
Water Plant Purifying Machine
Water Plant Purifying Machine is widely used in all beverage production line such as pure water production line, mineral water production line, carbonated beverage line,juice line as well as in medical treatment fileds.
Pure Water Output: 1000liters to 10,000liters per hour.

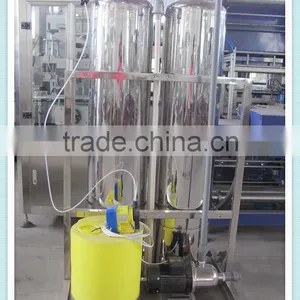

Machine picture
Pure Water Treatment line flow chart
Raw water ->Raw water tank -> Raw water pump -> Quartz sand filter -> Active carbon filter-> High pressure pump ->Security filter -> Reverse Osmosis Machine -> Water Sterilizer-> Pure water tank
Main equipment included the pre-treatment ,RO system and sterilizing system.
(A).Pre-treatment is included sand filter ,carbon filter ,softener(option) and security filter .
1.Sand filter: A laminated filter is provided to prevent sand, flocculent and colloid entering into membrane element. Its basic filter element is formed by quartzes sand and anthracite.
2. Active carbon filter: This is provided to absorb organic materials, residual chlorine and other injurants, thus it can reduce the effluent COD and keep SDI under and CL2 under 0.1 mg. L.
3. Softening system: This system is to prevent begrime the membrane by ion of Ca and Mg.
4. Precision filter (micro filter) ,PP filter of 5um is installed to prevent fine particulate entering the high lift pump and RO membrane.
(B).RO system is included that booster pump,membrane and membrane housing, electronic Control System .
It cut out colloids, bacteria, virus and other impurities, and keep output water conductivity below 5um/cm.
(C). Water Sterilizer often refers to Ozonge Generator and U.V Ray sterilier, which used to kill the germs in water.
(D).Pure water tank: When the pure water tank is full, the RO machine will automatically come to stop, when the pure water tank is empty, the RO system will automatically run to produce the pure water.
Reverse Osmosis Machine Picture
Water Purifiers
Our office and workshop
Thanks for your visiting of our company website. Welcome to our factory and start good businessship with us!
