Jiangsu 17mm Plastic Shaft Rotary B103 Joystick Potentiometer for Dimmer

US$ 0.47 - 0.53 MOQ: 1 Piece

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Model Number:

WH16AK L16.5

Changzhou Yuhao Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Ningbo Shenzhen Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name YH

Model Number WH16AK L16.5

Type Rotary Potentiometer

Technology Carbon Film

Resistance 1K ~1M

Resistance Tolerance ±20% / ±10%

Rated Power 0.05w

Max. Operating Voltage 250V AC Curve B:50V AC ;Other curve B:25V AC

Operating Temperature -10 ~ 60 ℃

name: jiangsu 17mm plastic shaft rotary b103 joystick potentiometer for dimmer

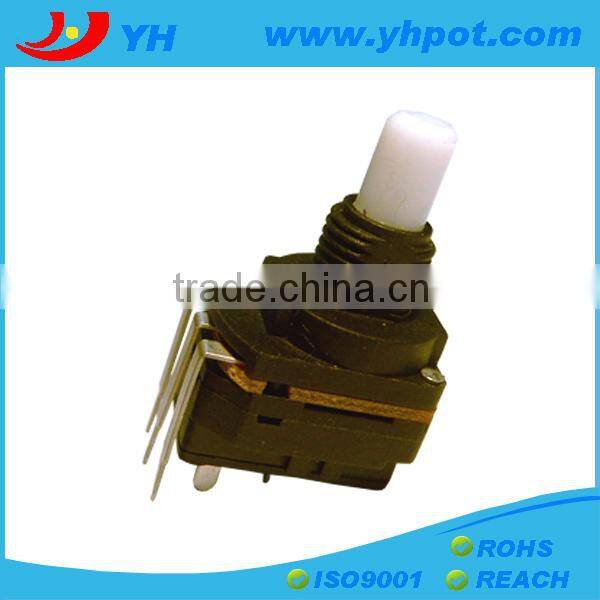

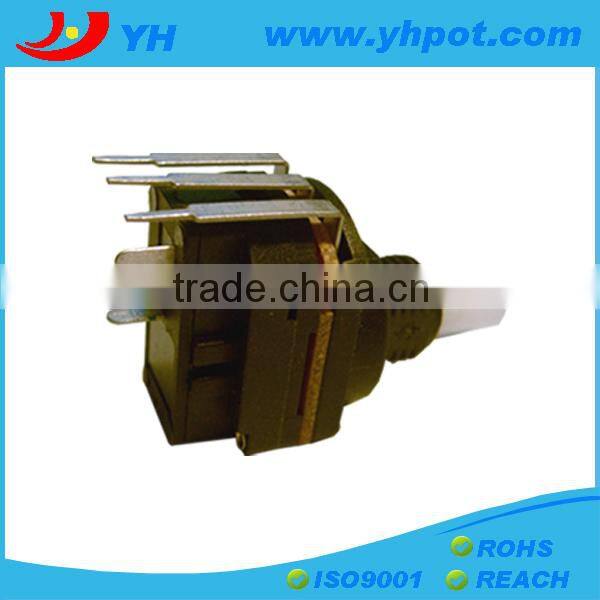

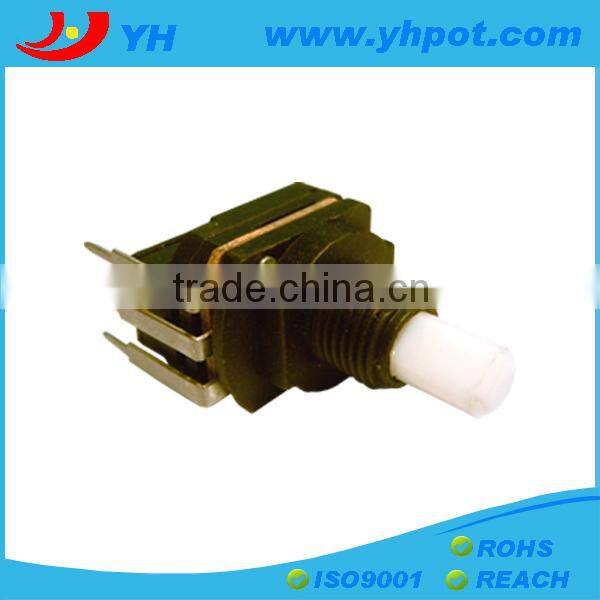

Product display:

Product specifications specifications:

Mechanical specifications:
Total rotation angle:	300°±10°
Rotation torque:	5~25mN.m(50~250gf.cm)
Shaft stop strength:	0.4N.m(4Kgf.cm)
Switch working angle/stroke:	≤50°
Click position:	0/32/40detent
Switch operating torque:	50-300gf.cm

Electrical specifications:
Total resistance:	1KΩ~500KΩ
Resistance taper:	A,B,C
Resistance tolerance:	±20% or ±10%
Rotational noise:	≤47mV
Residual resistance:	R≥250KΩ 0.1% max.of totalresistance 250KΩ>R>10KΩ 20Ω max. 10KΩ≥R 10Ω max.
Rotary toque:	30-200gf.cm
Rated wattage:	0.05W
Switch rating	DC 16V 1A
Dielectric:	AC300V,1 minute
Insulation resistance:	≥100MΩ at DC250V
Operating Temperature:	-10 ~ 60℃
Durability:
Rotary life:	10,000cycles

Common problems:

Q:	What is your MOQ of this item?
A:	1000pcs.
Q:	Where is your loading port?
A:	Shanghai port or other port in China.
Q:	What is your payment term?
A:	TT in advance or LC at sight.
Q:	What is the lead time?
A:	Normally 15~20 days.
Q:	What is your company’s available production capacity?
A:	35000PCS/day.
Q:	Could you provide sample?
A:	Of course,we are glad to provide free sample to you.
