Factory Trimming 15mm Alps Precision Potentiometer

US$ 0.11 - 0.16 MOQ: 1 Piece

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Model Number:

PT15 NH2.5

Changzhou Yuhao Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai shenzhen ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name YH

Model Number PT15 NH2.5

Type Trimming Potentiometer

Technology Carbon Film

Resistance 1k~500k

Resistance Tolerance ±20% / ±10%

Rated Power Curve B:0.125W ; Other than B:0.063W

Max. Operating Voltage Curve B:200V AC ;Other curve B:150V AC

Operating Temperature -10 ~ 60 ℃

name: factory trimming 15mm alps precision potentiometer

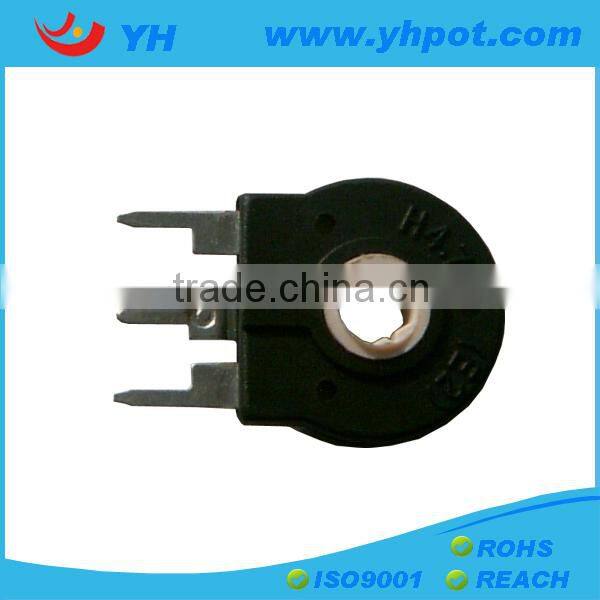

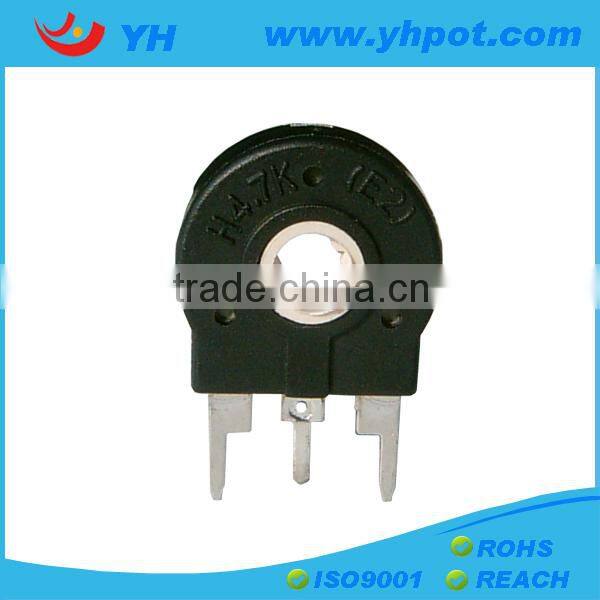

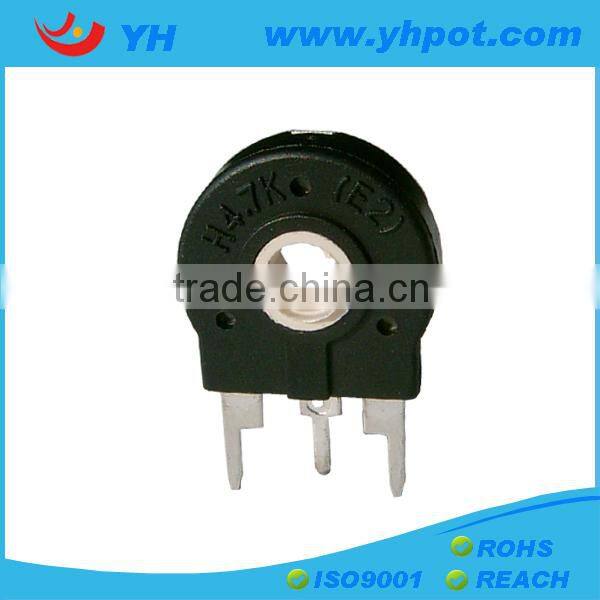

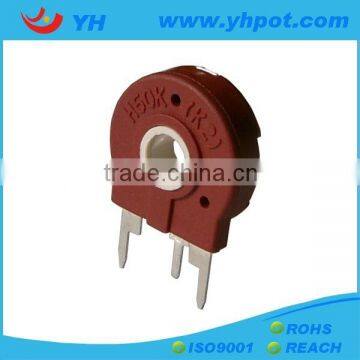

Product display:

Product specifications specifications:

Mechanical specifications:
Total rotation angle:	300°±10°
Rotation torque:	2~20mN.m(20~200gf.cm)
Shaft stop strength:	6Kgf.cm
Push pull strength:	60N
Click position:	Conter detent or 20,40 position clicks

Electrical specifications:
Total resistance:	1KΩ~500KΩ
Resistance taper:	A,B,C
Resistance tolerance:	±20% or ±10%
Rotational noise:	≤47mV
Residual resistance:	R≥250KΩ 0.1% max.of totalresistance 250KΩ>R>10KΩ 20Ω max. 10KΩ≥R 10Ω max.
Tracking error:	0~-40dB ±3dB
Rated wattage:	Curve B:0.125W Other than B:0.063W
Max operating voltage:	Curve B:200V AC Other curve B:150V AC
Dielectric:	AC500V,1 minute
Insulation resistance:	≥100MΩ at DC500V
Operating Temperature:	-10 ~ 60℃
Durability:
Rotary life:	10,000cycles

Common problems:

Q:	What is your MOQ of this item?
A:	1000pcs.
Q:	Where is your loading port?
A:	Shanghai port or other port in China.
Q:	What is your payment term?
A:	TT in advance or LC at sight.
Q:	What is the lead time?
A:	Normally 15~20 days.
Q:	What is your company’s available production capacity?
A:	150000PCS/month.
Q:	Could you provide sample?
A:	Of course,we are glad to provide free sample to you.
