T-300K RGB LED Pixel Controller PC online control with SD card

1.T-300k System features

32—256 grade Gray level,Support software Gamma correction.

Support the rules and special-shaped handle.

     1.8 ports output,one port can support 512-1024 lamp pixels.

     2.On-line (also can SD Card) control, offline controlCan be multiple controllers used in combination, the contents of the line control program stored in the SD card.

     3.Compatible with single line or double line chips.

     4.If the controller to the lamps distance can choose photoelectric isolated transmission and as far as several distances of up to 200-300 M

Note: the T-300 K controller offline control, each machine controller must put a SD card.

2012 Edition T-300K controller can only be combined with the new version software LedEdit2012 . Using the old software does not support the new version of the controller, the new version of the controller has been printed the Chinese sign.

 2.Support chips:

WS2801, WS2803

WS2811, WS2812B, INK1003

TM1803, TM1804, TM1809, TM1812

LPD8806,LPD8809,

UCS1903, UCS1903B, UCS1909

LPD6803, D705

UCS1912

UCS2903, UCS2909, UCS2912

UCS6909, UCS6912, UCS7009

UCS5903

TLS3001

P9813

   NOTE:if chip is 256 grade gray level and Single-line IC choose .When programming choice high speed mode and one interface controls 1024 lamps the play speed can reach 30 frames/s. Double-line IC or single-line IC with low speed , one interface controls 512 lamps the play speed can reach 30 frames/s.

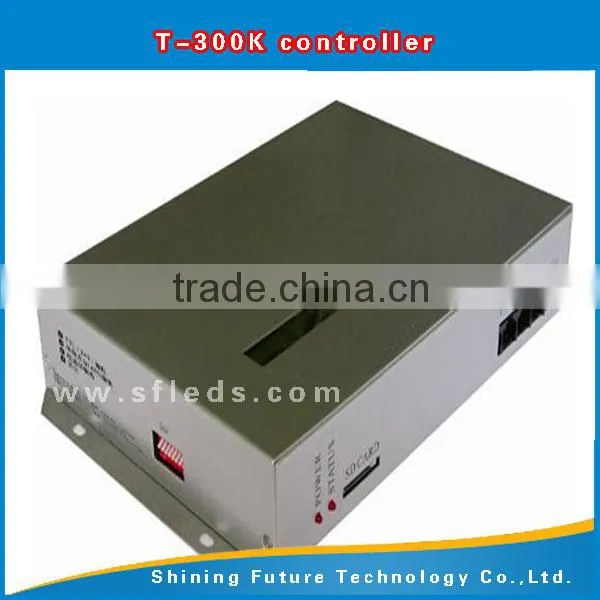

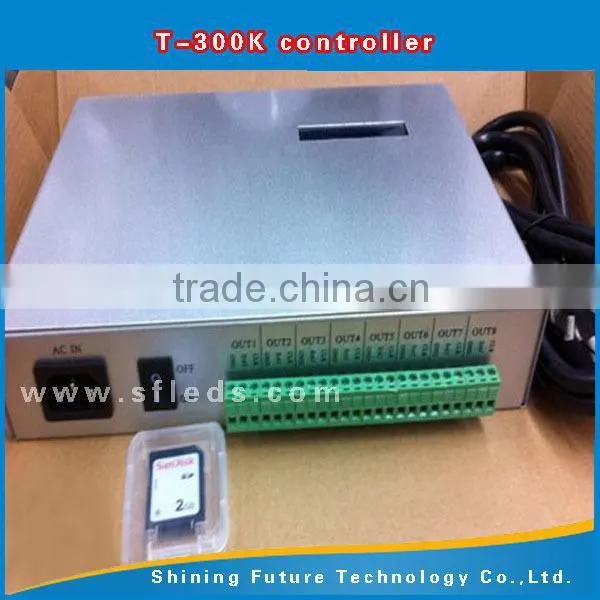

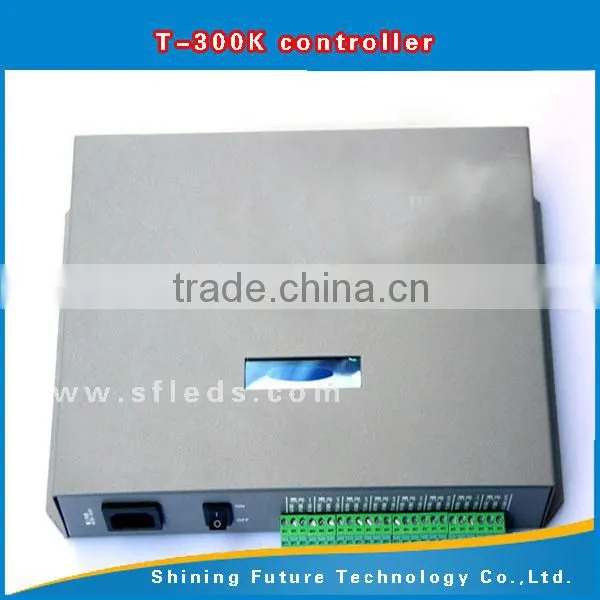

3.Appearance picture

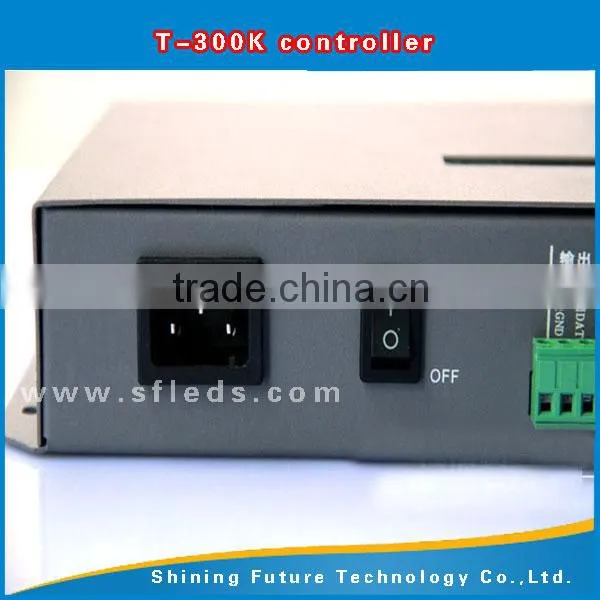

4.The meaning of flag

TTL signal:

NOTE:According to TTL signal output, Ground of the controller must be connected to the lamp ground.

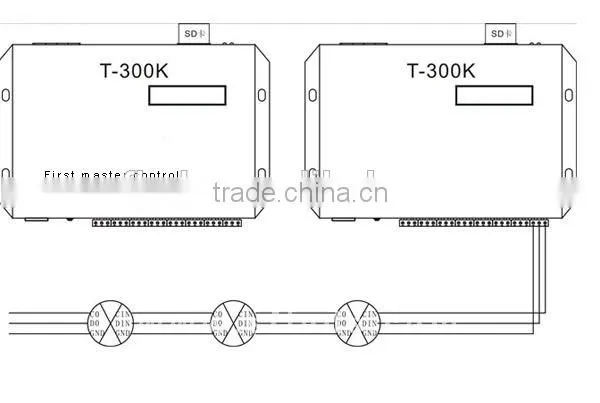

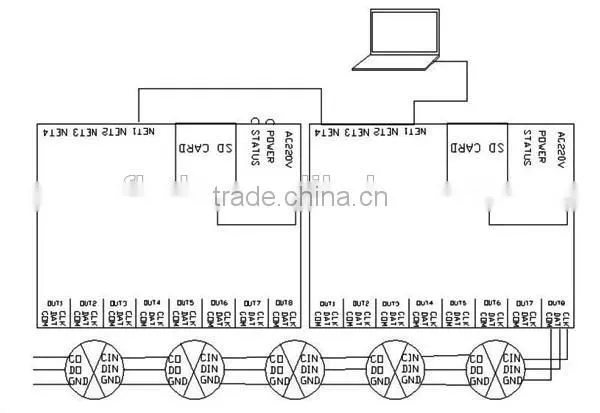

 5 .  wiring diagram
