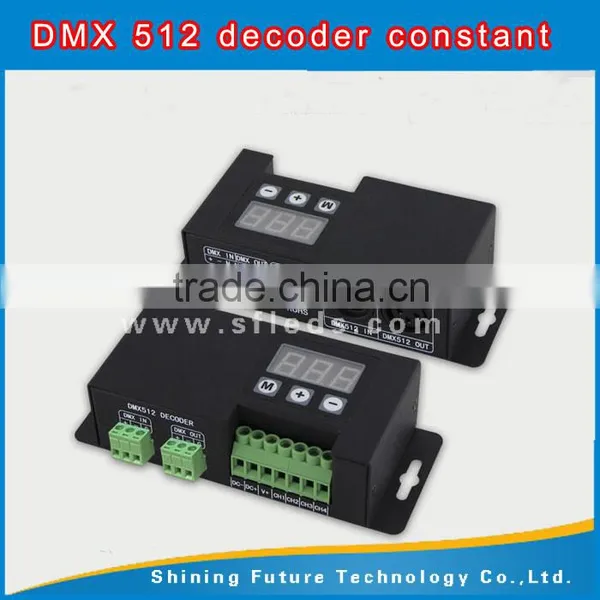

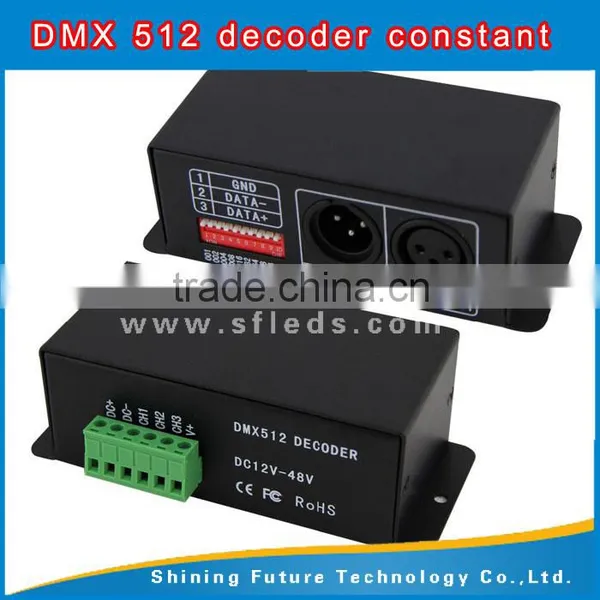

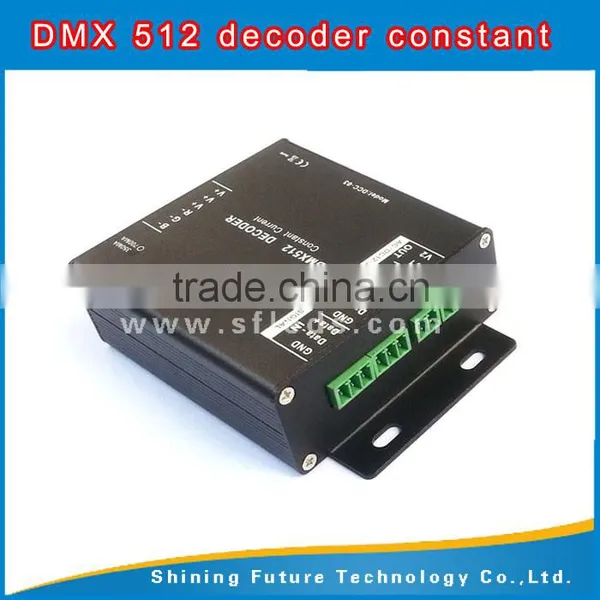

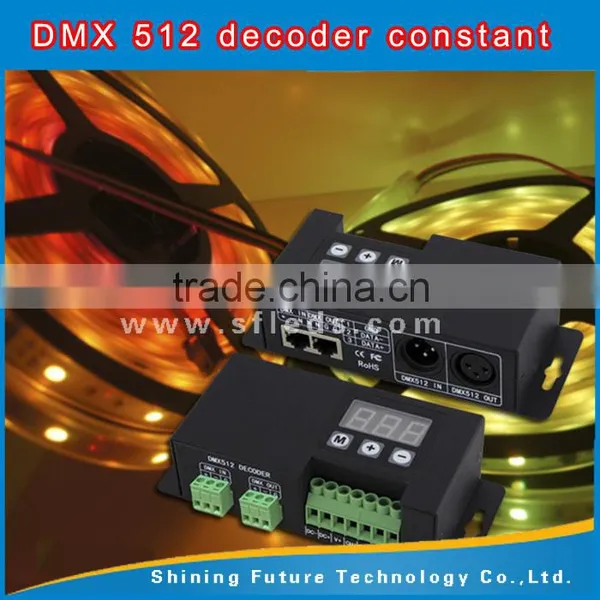

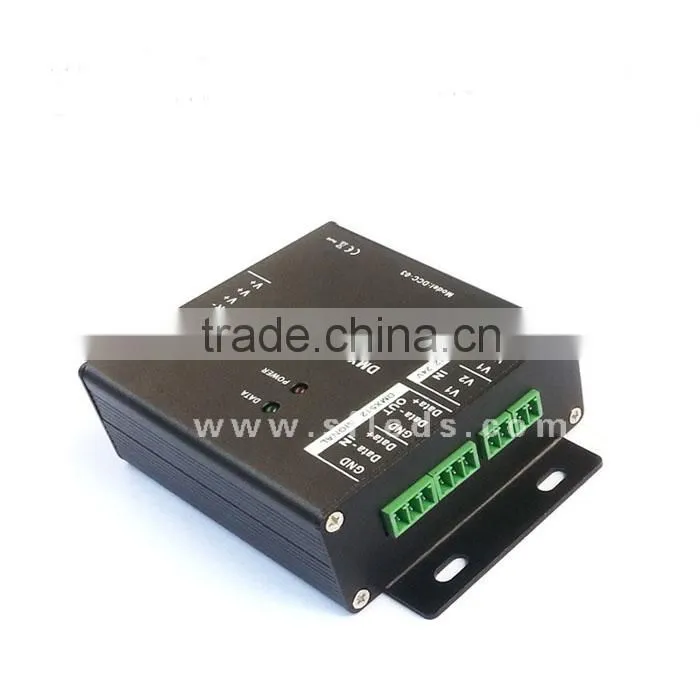

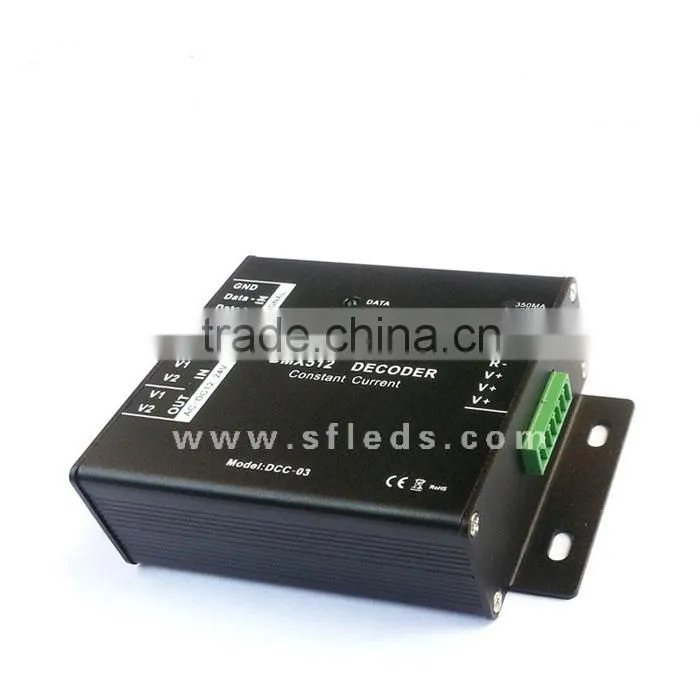

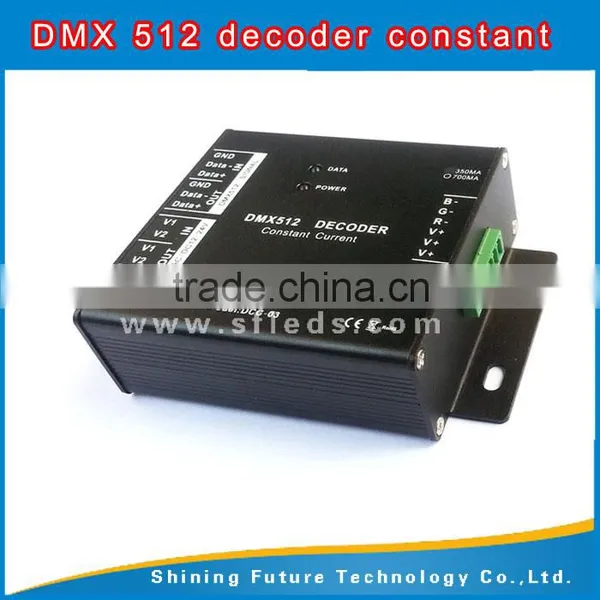

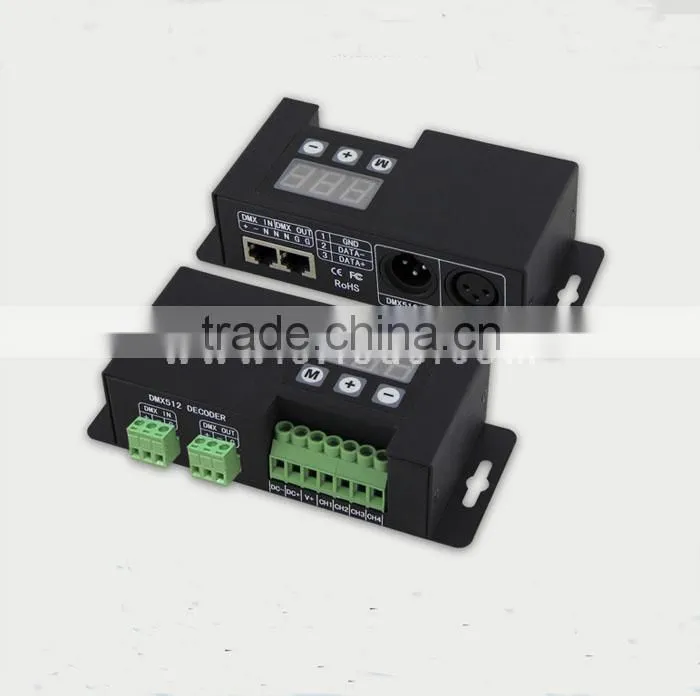

DC12-48V 3channels 700MA dmx512 constant current led rgb dmx decoder dmx to spi decoder

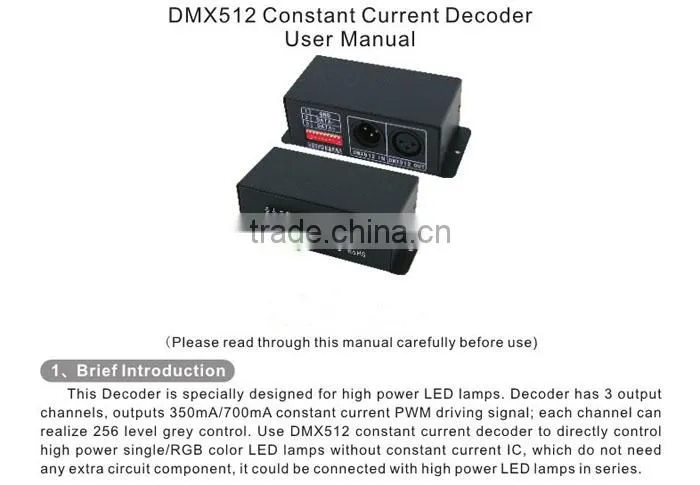

This Decoder is specially designed for high power LED lamps. Decoder has 3 output channels, outputs 350mA/700mA constant current PWM driving signal; each channel can realize 256 level grey control. Use DMX512 constant current decoder to directly control high power single/RGB color LED lamps without constant current IC, which do not need any extra circuit component, it could be connected with high power LED lamps in series

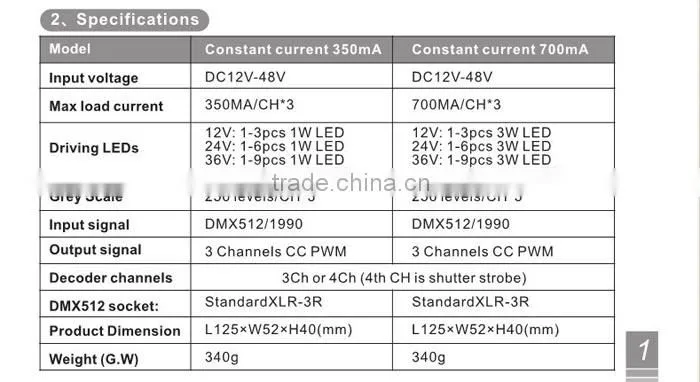

Model |
SFLEDS-809-350 |
SFLEDS-350-700 |
Input voltage |
DC12V-48V |
DC12V-48V |
Max load current |
350MA/CH*3 |
700MA/CH*3 |
Driving LEDs |
12V: 1-3pcs 1W LED 24V: 1-6pcs 1W LED 36V: 1-9pcs 1W LED 48V: 1-12pcs 1W LED |
12V: 1-3pcs 3W LED 24V: 1-6pcs 3W LED 36V: 1-9pcs 3W LED 48V: 1-12pcs 3W LED |
Grey Scale |
256 levels/CH*3 |
256 levels/CH*3 |
Input signal |
DMX512/1990 |
DMX512/1990 |
Output signal |
3 Channels CC PWM |
3 Channels CC PWM |
Decoder channels |
3Ch or 4Ch (4th CH is shutter strobe) |
|
DMX512 socket: |
StandardXLR-3R |
StandardXLR-3R |
Product Dimension |
L125*W52*H40(mm) |
L125*W52*H40(mm) |
Weight (G.W) |
340g |
340g |

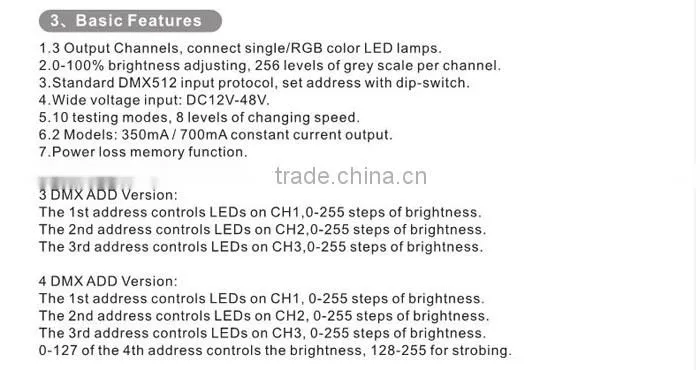

Feature function:
1.3 Output Channels, connect single/RGB color LED lamps.
2.0-100% brightness adjusting, 256 levels of grey scale per channel.

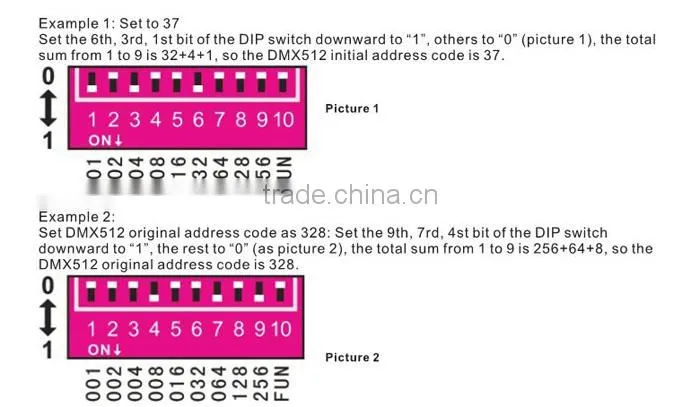

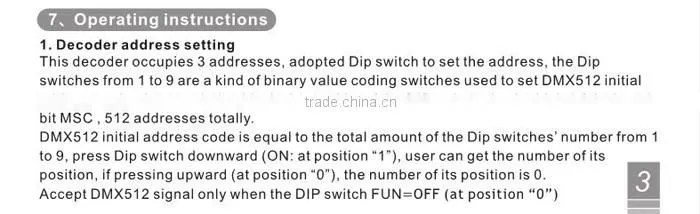

3.Standard DMX512 input protocol, set address with dip-switch.
4.Wide voltage input: DC12V-48V.

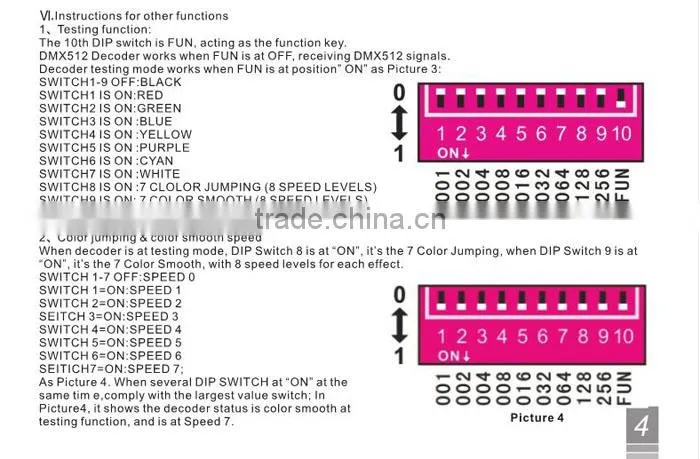

5.10 testing modes, 8 levels of changing speed.
6.2 Models: 350mA / 700mA constant current output.
7. Power loss memory function.
