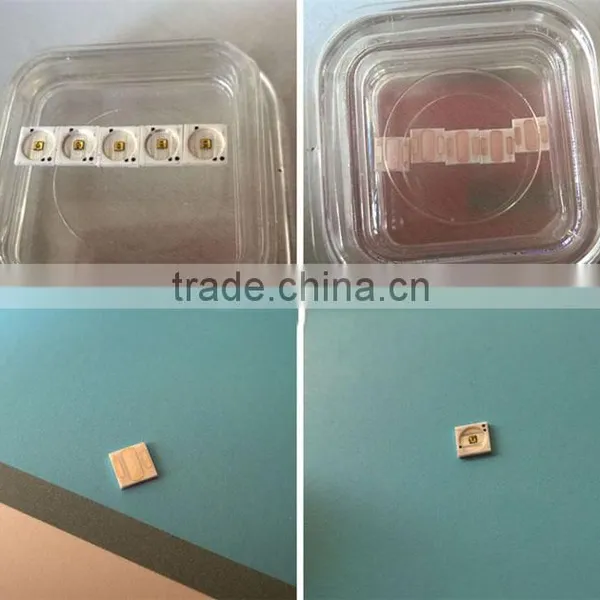

Ceramic packaging High Sterilizing Effect deep UV LED 280NM
Specification:
280NM SMD5050 UVC LED For Surface Sterilization
(1) 280NM
(2) 1.0-1.5MW
(3) 140 degrees
(4) 4. 5.0-7.0V, 20MA
Electrical&Optical Characteristics of 280nm UVC LED for surface sterilization
Wavelength (nm) |
Part No. |
Dimension (mm) |
Optical Output Power Po[mW] |
Voltage VF[V] |
Viewing Angle
|
Half peak width |
||
IF /20mA |
nm |
|||||||
min |
max |
min |
Max |
2θ1/2(°) |
Typ |
|||
277-280-283 |
sfleds-UV280-5050 |
5.4*5*1.5 |
1.0 |
1.5 |
6.8 |
7.5 |
140 |
10 |
Absolute Parameters of 280nm UVC LED for surface sterilization
Parameter |
Unit |
Max |
Input Power |
mW |
200 |
Operative Current |
mA |
25 |
Pulse(frequency 1kHz,duty cycle 5%) |
mA |
100 |
Operative Voltage |
V |
8 (CW), 10 (Pulse) |
Operative Temperature |
°C |
-30~+55 |
Storage Temperature |
°C |
-30~+55 |
Working/storage environment humidity |
% |
0~80 |
Packaging: 1000pcs reel
More UV led
Application list of UVLED :
Optical sensors and instruments (230-400nm)
UV authentication, barcode (230-280nm)
Surface water sterilization (240-280nm)
Detection and identification and analysis of body fluids (250-405nm)
Medical sterilization (254-280nm)
Protein analysis and drug discovery (270-300nm)
Medical light therapy (300-320nm)
Polymers and inks (300-365nm)
Multinational paper money sorter (365-375nm)
Leak (look for tiny cracks) (365-375nm)
Distinguishing (375-395nm)
Counting Detector (375-395nm)
Photocatalyst technology (375nm-400nm)
Surface sterilization / Beauty sterilization (390-410nm)
Nail (nail polish / light therapy cure) (nail polish: 395nm; extend phototherapy A: 360-370nm)
