Long Standby Mercury free SMD 395 nm UV LED Emitter for UV printer
Specifications
1. Wavelength:390-400nm
2. Optical power:695-1125mW
3.Viewing angle:120 degrees

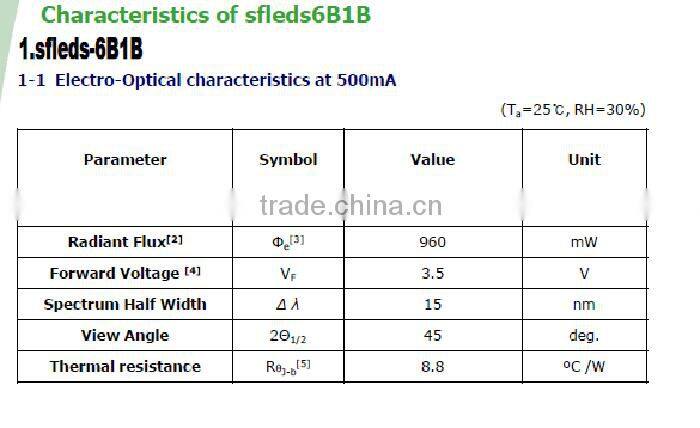

Specification of 395nm uv led
| Part No. |
Working Current IF(mA)
|
Forward Voltage VF(V) |
Wavelength λp(nm) |
Optical Output Po(mW) |
Viewing Angle 2θ½(°) |
|
sfleds-UV390-6B1B
|
500 | 3.0-4.0 | 390-400 | 695-1125 | 120 |

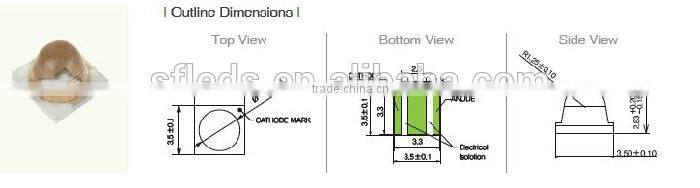

Outline Dimension of 395nm uv led(mm):

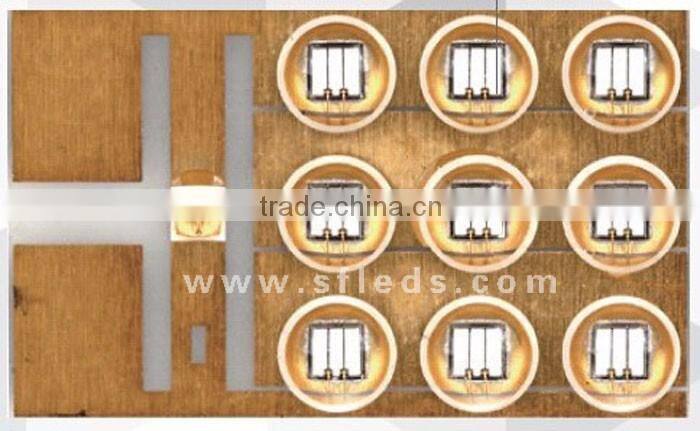

ceramic substrate design, better heat dissipation, lamp beads do thermal separation, thermal effects better and live longer.
Note:

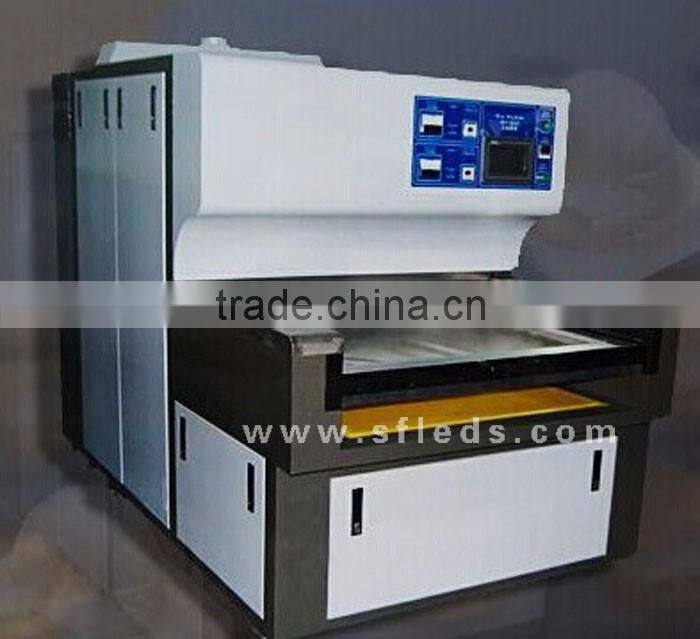

1.The product is suitable for light-curing, light curing, UV CD printed circuit technology, UV spot light / UV surface light source / UV line source / UV flatbed printing / UV ink drying / UV exposure / UV light curing / PCB exposure machine / white oil exposure / green oil exposure / diesel oil, the specific application can contact the supplier.
2. sfleds-6B1B is a UVLED curing lamp beads exposure light source developed for, not only narrowed the light angle, and energy is more concentrated. When 500mA driving current, optical power can reach 1000mW, is currently on the market the same grade products UVLED most cost-effective products!
Application list of UVLED :
Optical sensors and instruments (230-400nm)
UV authentication, barcode (230-280nm)
Surface water sterilization (240-280nm)
Detection and identification and analysis of body fluids (250-405nm)
Medical sterilization (254-280nm)
Protein analysis and drug discovery (270-300nm)
Medical light therapy (300-320nm)
Polymers and inks (300-365nm)
Multinational paper money sorter (365-375nm)
Leak (look for tiny cracks) (365-375nm)
Distinguishing (375-395nm)
Counting Detector (375-395nm)
Photocatalyst technology (375nm-400nm)
Surface sterilization / Beauty sterilization (390-410nm)
Nail (nail polish / light therapy cure) (nail polish: 395nm; extend phototherapy A: 360-370nm)
