Excellent Adhesiveness SMD 5050 Led 120 Degree 3535 Rgb Module Screen Chip

Name: Excellent Adhesiveness SMD 5050 Led 120 Degree 3535 Rgb Module Screen Chip
Brand: sfleds
SKU: 124043349
Availability: InStock

US$ 1.2 - 1.3 MOQ: 100 Pieces

Key Specifications

Model Number:

SF5050

Chip Material:

InGaN

Emitting Color:

Other, RGB

Shenzhen Shining Future LED Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenshen

Delivery Detail:

Delivery time depends on order quantity.

Model Number SF5050

Chip Material InGaN

Emitting Color Other, RGB

Luminous Intensity 18-20lm

Luminous Flux(lm) 20-22

Optical Attenuation(%) 3%

Power Other, 0.2w

Power Dissipation 0.2

Color Rendering Index(Ra) 70

Color Temperature R:623-628nm,G:525-530nm,B:460-465

Operating Temperature(℃) -25, 80

Storage Temperature(℃) -40, 80

Place of Origin Guangdong, China

Brand Name sfleds

Certification CE

Specifications

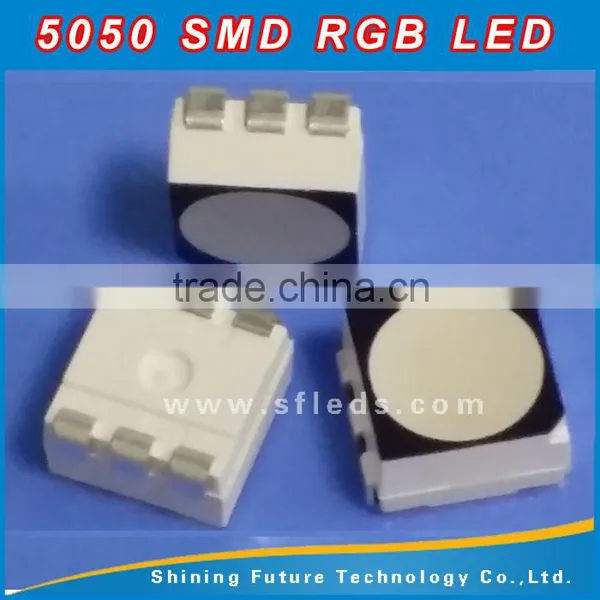

2.8MM SMD 5050 TOP DIODE LED RGB
1.Anti-UV capability
2.Resistance high temperature
3.Current:20mA
4.2 years warranty

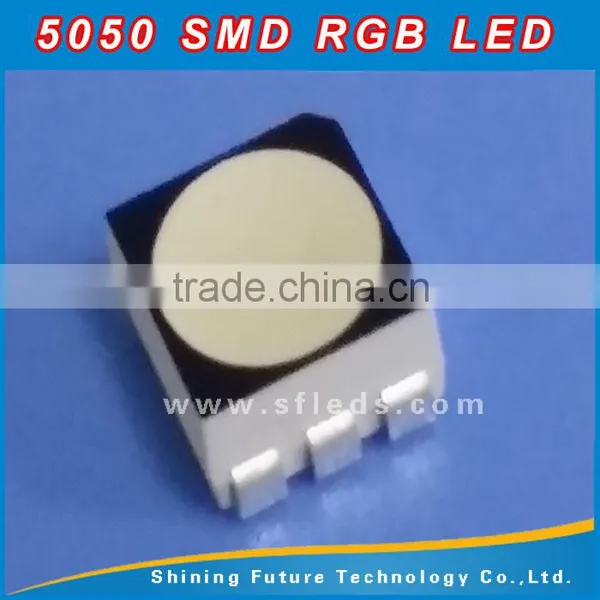

SMD 5050 TOP diode LED RGB

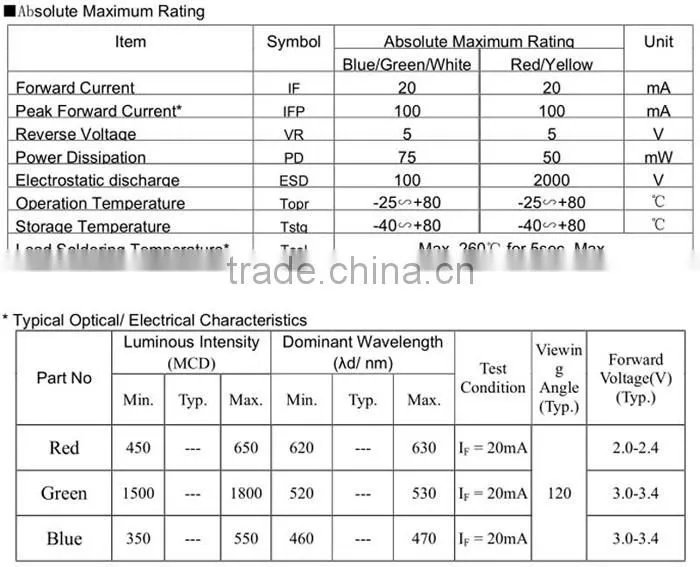

Product data
Wavelength	R:623-628nm,G:525-530nm,B:460-465nm
Lumiouns flux	R:450-650mcd,G:1500-1800mcd,B:350-550mcd
CRI	75Ra
View Angle	120 degree
Voltage	R:1.9-2.1V,G:2.9-3.1V,B:2.9-3.1V
Reverse Voltage	5V
Current	20mA
Frequency	50/60Hz
Lifespan	50000 hours
Warranty	2 years

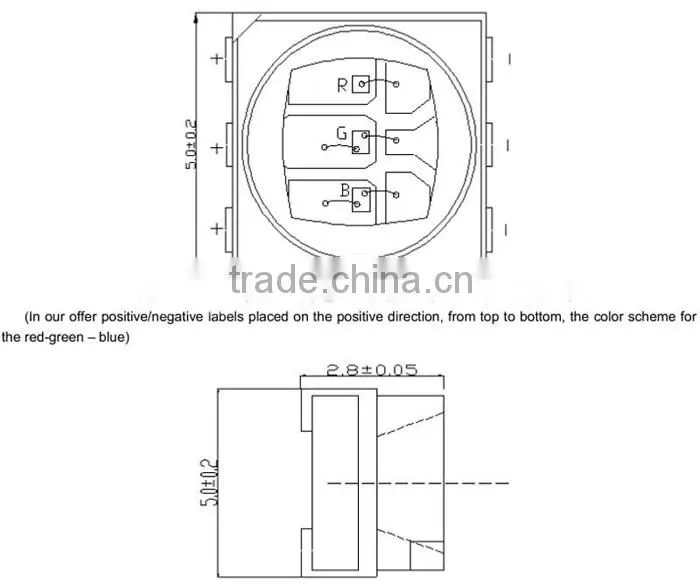

Size	5.05.02.8mm
Feature
Small size, easy to install. Using imported chip, low attenuation, small energy consumption, long service life. Antistatic ability. Top quality raw material. Using high quality imported from Taiwan the silicone glue encapsulation, low light decay, long service life. Can be very good for display.
Application
To be widely used in: Automobile lights. Article lamp Remote control lights LED Displays Flashing lantern lights etc.
